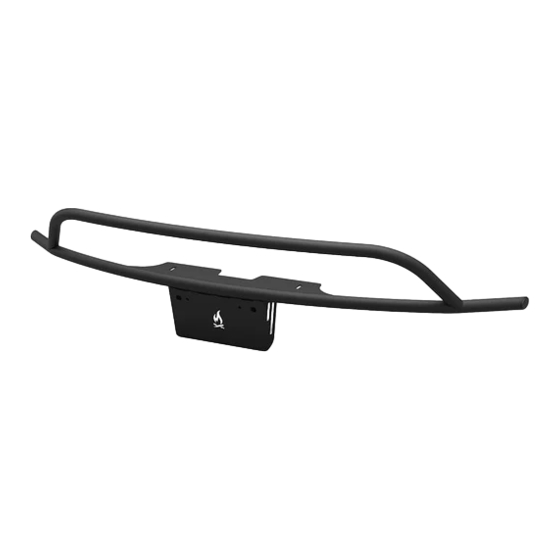

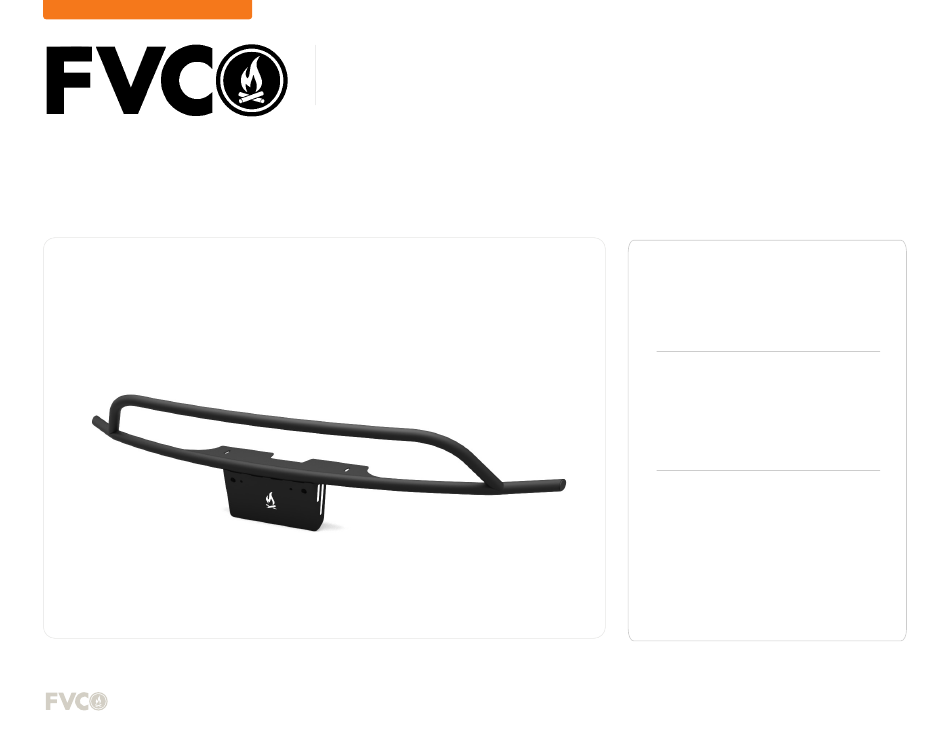

S PRI NTER VAN NUD GE B AR
SP1106 B
INSTALLATION
GUIDE
F L AT L I N E VA N C O • S U P P O R T @ F L AT L I N EVA N C O . C O M • 8 8 8 - 6 6 7- 5 5 7 6
TOOLS REQUIRED
(NOT INCLUDED)
+
RATCHET
+
13MM WRENCH OR SOCKET
+
5/32" ALLEN WRENCH
+
T45 TORX KEY
+
FLATHEAD SCREWDRIVER
+
LOCTITE
INSTALL INFO
TIME TO INSTALL THIS PRODUCT: 30 MINUTES
Additional help is suggested for a few of the install
steps.
BEFORE YOU START
Please inspect the product and packaging upon
delivery to ensure there are no issues and that all
parts and hardware are accounted for.
Contact us ASAP if anything is missing at:
support@flatlinevanco.com
0 1
Advertisement
Related Manuals for FVC SP1106B
Summary of Contents for FVC SP1106B
- Page 1 INSTALLATION GUIDE S PRI NTER VAN NUD GE B AR SP1106 B TOOLS REQUIRED (NOT INCLUDED) RATCHET 13MM WRENCH OR SOCKET 5/32” ALLEN WRENCH T45 TORX KEY FLATHEAD SCREWDRIVER LOCTITE INSTALL INFO TIME TO INSTALL THIS PRODUCT: 30 MINUTES Additional help is suggested for a few of the install steps.
-
Page 2: Before You Start
BEFORE YOU START All Flatline Van Co products must be properly assembled and secured before attaching to your vehicle. Improper attachment could result in an automobile accident, and could cause serious bodily injury or death to you or to others involved. You are responsible for assembling and securing Flatline Van Co products to your vehicle, checking the mounting points and attachments prior to use, and regularly inspecting the products for wear and or damage. -
Page 3: Package Contents
PACKAGE CONTENTS NUDGE BAR QTY: 1 F L AT L I N E VA N C O • S U P P O R T @ F L AT L I N EVA N C O . C O M • 8 8 8 - 6 6 7- 5 5 7 6... - Page 4 HARDWARE 1/4-20 X 0.75 FLANGED BUTTON HEAD HEX M8-1.25 X 40 FLANGED HEX HEAD SCREW M8 OVERSIZED FLAT WASHER HEAD SCREW QTY: 2 QTY: 2 QTY: 2 F L AT L I N E VA N C O • S U P P O R T @ F L AT L I N EVA N C O . C O M • 8 8 8 - 6 6 7- 5 5 7 6...
- Page 5 INSTALL TOOLS REQUIRED FOR THIS STEP: T45 TORX KEY RATCHET FLATHEAD SCREWDRIVER STEP | 01 LAYOUT AND INSTALL PREP 1.1 Removing Factory Bolts: The first step is to remove the factory bolts on the step portion of your bumper (FIG 1). If there are plastic caps installed, use a Flathead Screwdriver to remove them.
- Page 6 T45 TORX KEY TOOLS REQUIRED FOR THIS STEP: RATCHET 13MM WRENCH OR SOCKET LOCTITE 5/32” ALLEN WRENCH STEP | 02 NUDGE BAR INSTALL 2.1 Attaching the Nudge Bar: Place the Nudge Bar on the front step area (FIG 4), aligning the mounting slots, and thread in the the (2) M8 Bolts with Loctite.
- Page 7 FVC (and see) from you! Head to the products and following along and we will make it right. FVC is product page and click “Leave a company of van and outdoor with your adventures. Tag us Review.”...
