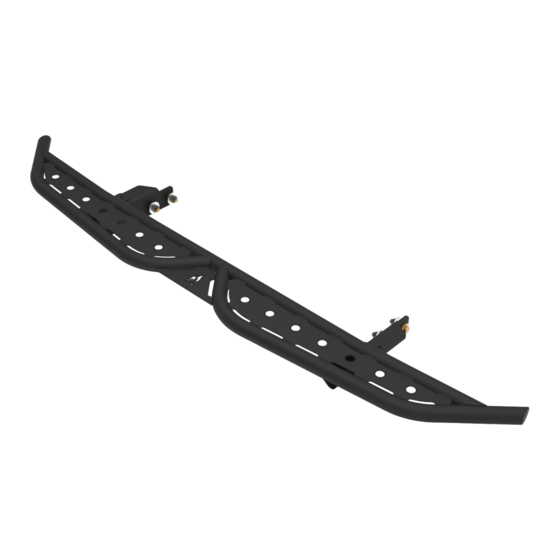

S PRI NTER VAN R E AR T UB E ST E P
SP1105 B
INSTALLATION
GUIDE
F L AT L I N E VA N C O • S U P P O R T @ F L AT L I N EVA N C O . C O M • 8 8 8 - 6 6 7- 5 5 7 6
TOOLS REQUIRED
(NOT INCLUDED)
+
RATCHET
+
16MM SOCKET OR WRENCH
+
19MM SOCKET OR WRENCH
+
9/16" WRENCH OR SOCKET
INSTALL INFO
TIME TO INSTALL THIS PRODUCT: 45 MINUTES
Additional help is suggested for a few of the install
steps.
BEFORE YOU START
Please inspect the product and packaging upon
delivery to ensure there are no issues and that all
parts and hardware are accounted for.
Contact us ASAP if anything is missing at:
support@flatlinevanco.com
0 1
