SMITH SYSTEM NUMBERS DESK 02130 Assembly Instructions Manual page 4

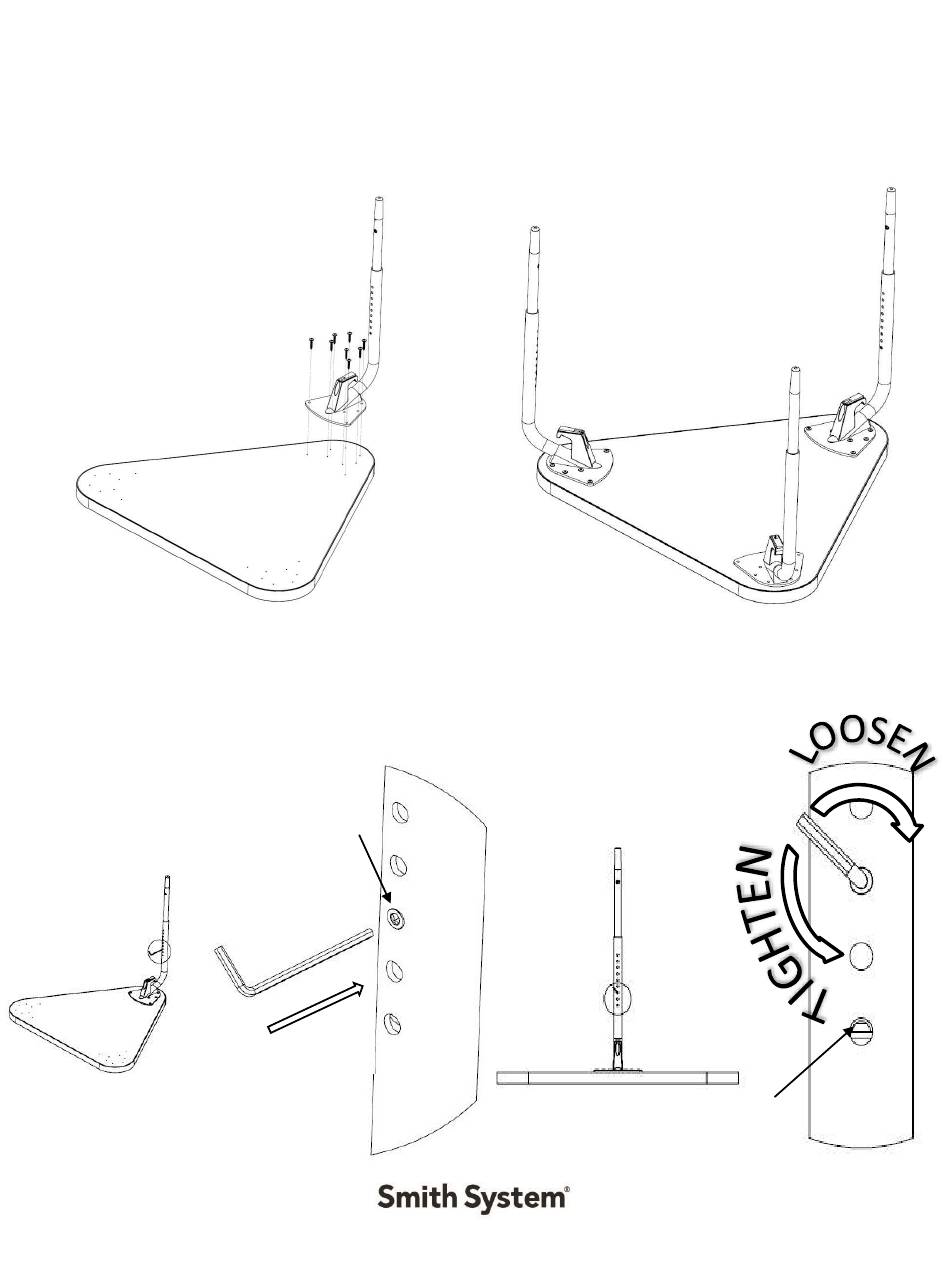

1. Place wood top on clean smooth surface upside down with the pilot holes facing up.
Align holes in the single legs with the pilot holes. Using the included T25 torx bit fasten
all single leg assemblies using 8x NO. 10X1-1/8" torx button head screws per leg.
MAX TORQUE ON WOOD SCREWS IS 50 IN-LB, DO NOT USE IMPACT DRIVERS
2. To adjust the table height, use the supplied 1/8" Allen Key. Numbers leg sets use a
hidden fastener to adjust the legs. This set screw can be accessed through
adjustment holes as shown below. Turn the set screw clockwise to loosen and
counterclockwise to tighten the inserts in place. The set screw will fit inside the
adjustment hole to set the table height.
The set screw will fit inside the
adjustment hole to set the table height.
Document #: 179722
Assembly Instructions
A notch in the leg insert tube
was created to help align the
set screw visually.
