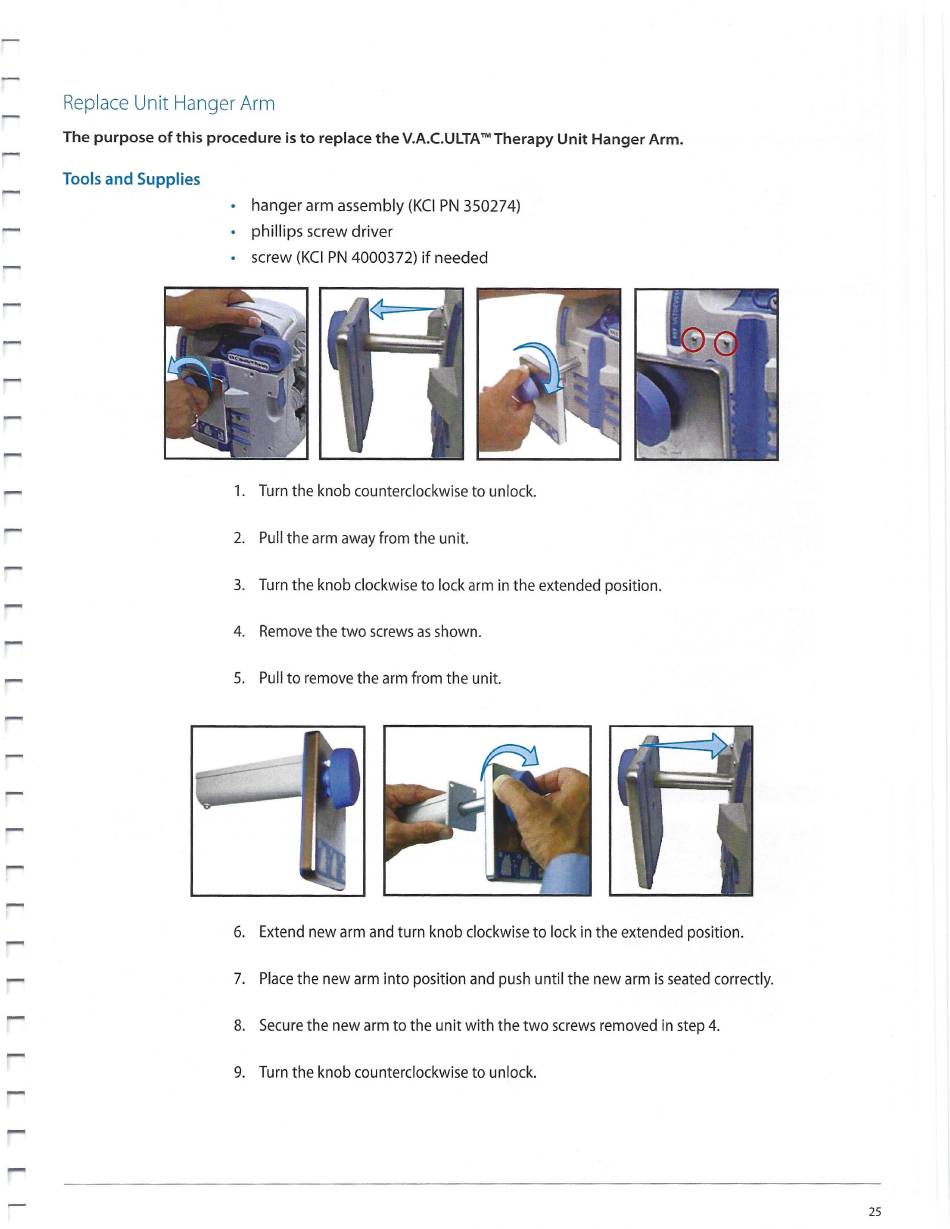

Replace Unit Hanger Arm
The purpose of this procedure is to replace the V.A.C.ULTA™ Therapy Unit Hanger Arm.
Tools and Supplies
ㆍ hanger arm assembly (KCI PN 350274)
。 phillips screw driver
e screw (KCI PN 4000372) if needed
1. Turn the knob counterclockwise to unlock.
2. Pull the arm away from the unit.
3. Turn the knob clockwise to lock arm in the extended position.
4. Remove the two screws as shown.
5. Pull to remove the arm from the unit.
6. Extend new arm and turn knob clockwise to lock in the extended position.
7. Place the new arm into position and push until the new arm is seated correctly.
8. Secure the new arm to the unit with the two screws removed in step 4.
9. Turn the knob counterclockwise to unlock.
