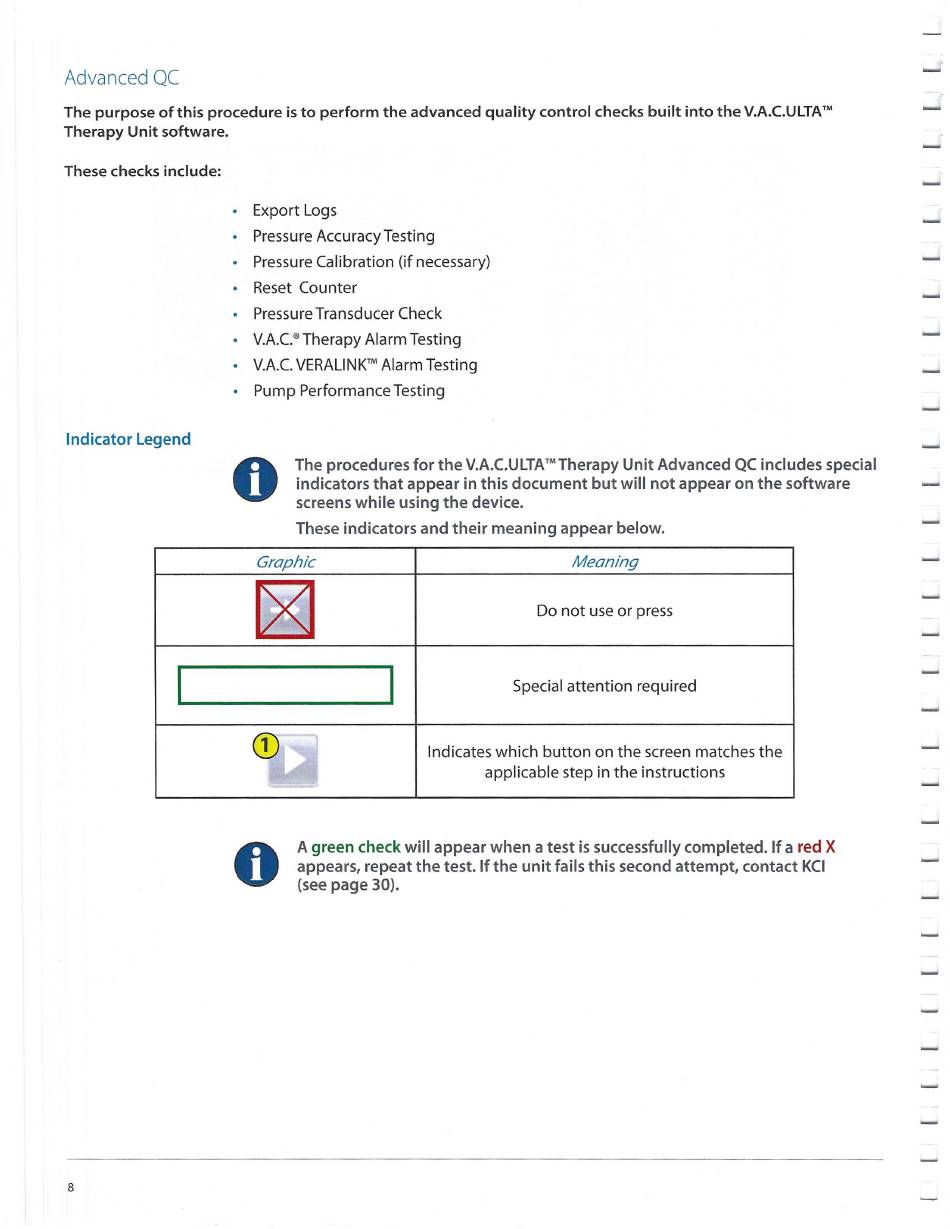

Advanced QC
The purpose of this procedure is to perform the advanced quality control checks built into the V.A.C.ULTA™
Therapy Unit software.
These checks include:
ㆍ Export Logs
ㆍ Pressure Accuracy Testing
‚ Pressure Calibration (if necessary)
ㆍ Reset Counter
ㆍ Pressure Transducer Check
ㆍ V.A.C.® Therapy Alarm Testing
+ V.A.C. VERALINK"" Alarm Testing
ㆍ Pump Performance Testing
Indicator Legend
indicators that appear in this document but will not appear on the software
é» The procedures for the V.A.C.ULTA™ Therapy Unit Advanced QC includes special
screens while using the device.
These indicators and their meaning appear below.
Graphic Meaning
È 4 Do not use or press
ZA
Special attention required
(1) Indicates which button on the screen matches the
μα applicable step in the instructions
appears, repeat the test. If the unit fails this second attempt, contact KCI
© A green check will appear when a test is successfully completed. If a red X
(see page 30).
