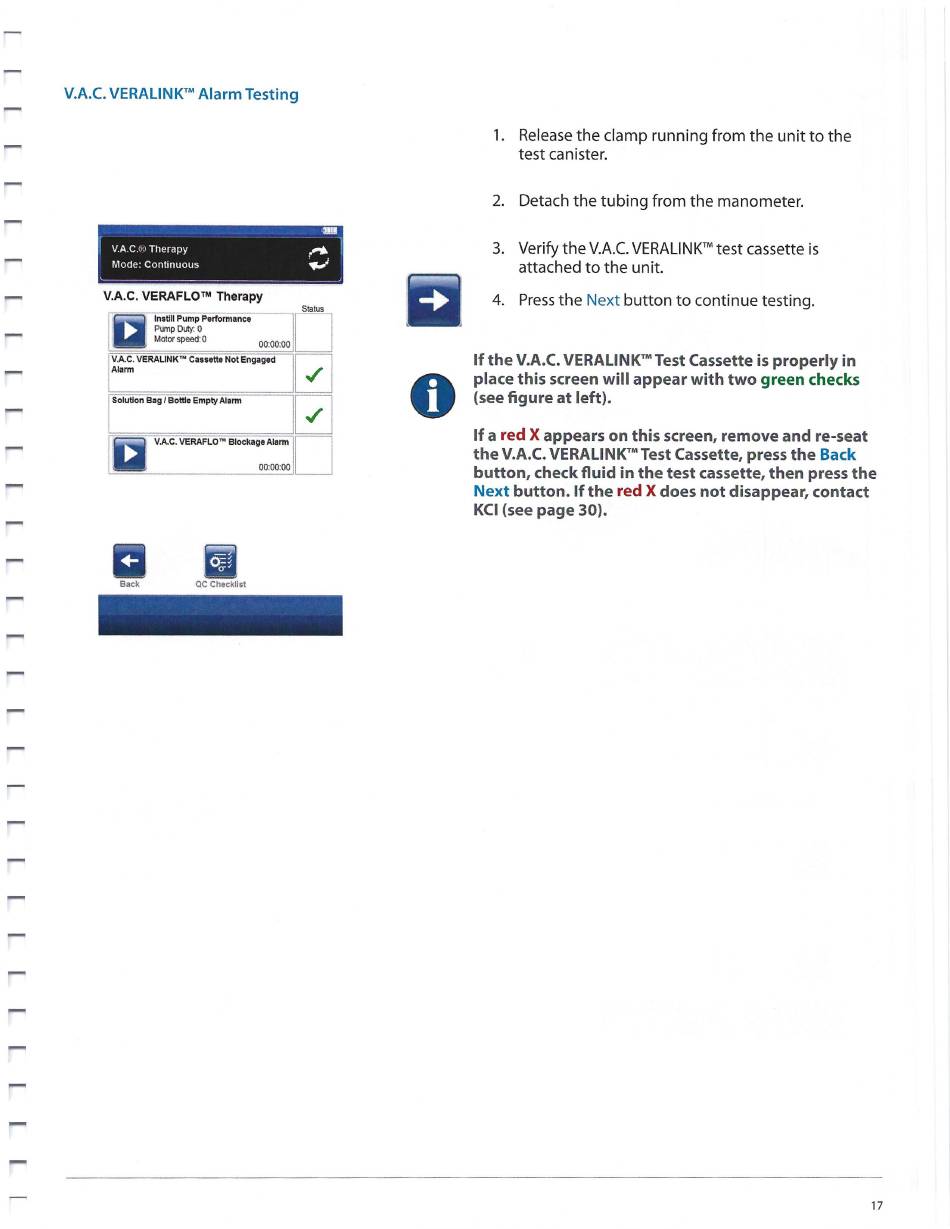

V.A.C. VERALINK™ Alarm Testing
V.A.C.® Therapy
Mode: Continuous
RSR AM e
V.A.C. VERAFLO™ Therapy =>
Status
E | Instill Pump Performance | 1 |
| Pump Duty: 0 |
o Motor speed: 0 00:00:00 |
¡V.A.C. VERALINK"" Cassette Not Engaged
| Alarm
| Solution Bag / Bottle Empty alam | |
|
들 — VAC. VERAFLO" Blockage Alam |
ψ 3
| _ 00:00:00
1. Release the clamp running from the unit to the
test canister.
2. Detach the tubing from the manometer.
3. Verify the V.A.C. VERALINK™ test cassette is
attached to the unit.
Press the Next button to continue testing.
If the V.A.C. VERALINK™ Test Cassette is properly in
place this screen will appear with two green checks
(see figure at left).
If a red X appears on this screen, remove and re-seat
the V.A.C. VERALINK™ Test Cassette, press the Back
button, check fluid in the test cassette, then press the
Next button. If the red X does not disappear, contact
KCI (see page 30).
