PSG Caddy PA08592 Installation Instructions

Connection plate for the dettson gas furnace

Download this manual

CONNECTION PLATE FOR THE DETTSON GAS FURNACE

Verified and tested for Canada and the

United States by an accredited

laboratory.

Eco-energy

hearth

of your home

Printed in Canada

PA08592

This manual is available for free download on the

manufacturer's web site. It is a copyrighted document. Re-sale

is strictly prohibited. The manufacturer may update this

manual from time to time and cannot be responsible for

problems, injuries, or damages arising out of the use of

information

unauthorized sources

the

contained

any

PSG

250, Copenhague street,

St-Augustin-de-Desmaures (Québec)

CANADA G3A 2H3

manual

obtained

from

46394A

2024-07-10

Need help?

Do you have a question about the Caddy PA08592 and is the answer not in the manual?

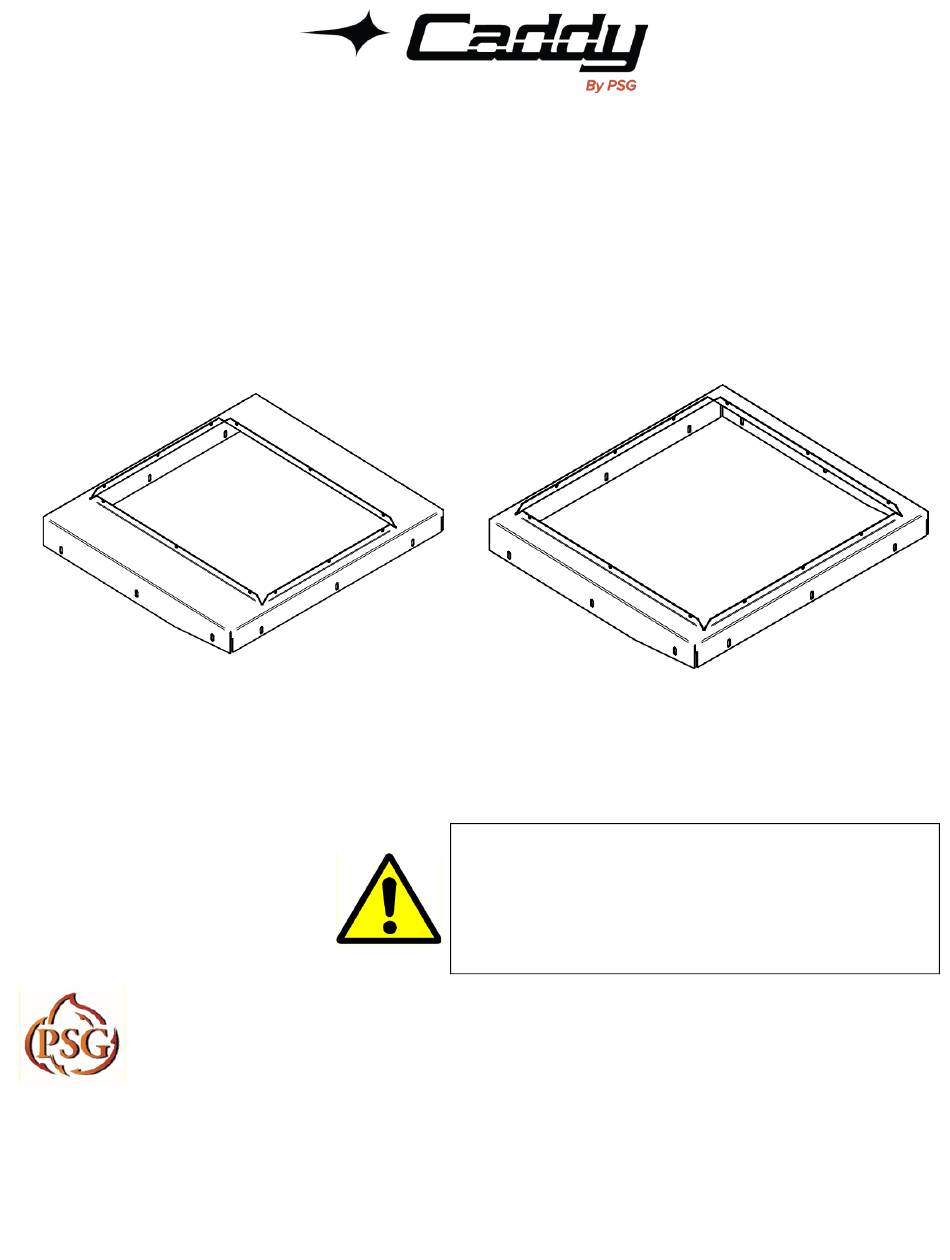

Page 1 CONNECTION PLATE FOR THE DETTSON GAS FURNACE PA08592 This manual is available for free download on the manufacturer’s web site. It is a copyrighted document. Re-sale Verified and tested for Canada and the is strictly prohibited. The manufacturer may update this United States by an accredited manual from time to time and cannot be responsible for laboratory.
Page 2: Kit Content
1. Kit content PL66371 – Connection plate (1x) PL66372 – Connection plate(1x) 31048 – Metal screw (15x) 60 to 75 kBtu/hr 105 to 120 kBtu/hr 30163 – Self-tapping screw (15x)
Page 3 2. Installation of the connection plate on the angled support WARNING : The following instructions only show the assembly on the left side. The assembly on the right side is also doable. 1. Choose the proper plate according to the heat output provided by the gas furnace : PL66371 : 60 to 75 kBTU/hr PL66372 : 105 to 120 kBTU/hr...
Page 4 4. Shown here is the connection plate assembled. 1. Install the DETTSON furnace onto the connection plate. (Heat outlet downwards – « downflow ») 2. Secure the furnace on the connection plate with the self-tapping screws 30163...
Page 5 3. Shown is the furnace assembled 4. Continue by following the instructions in the dedicated manuals of the other options...
