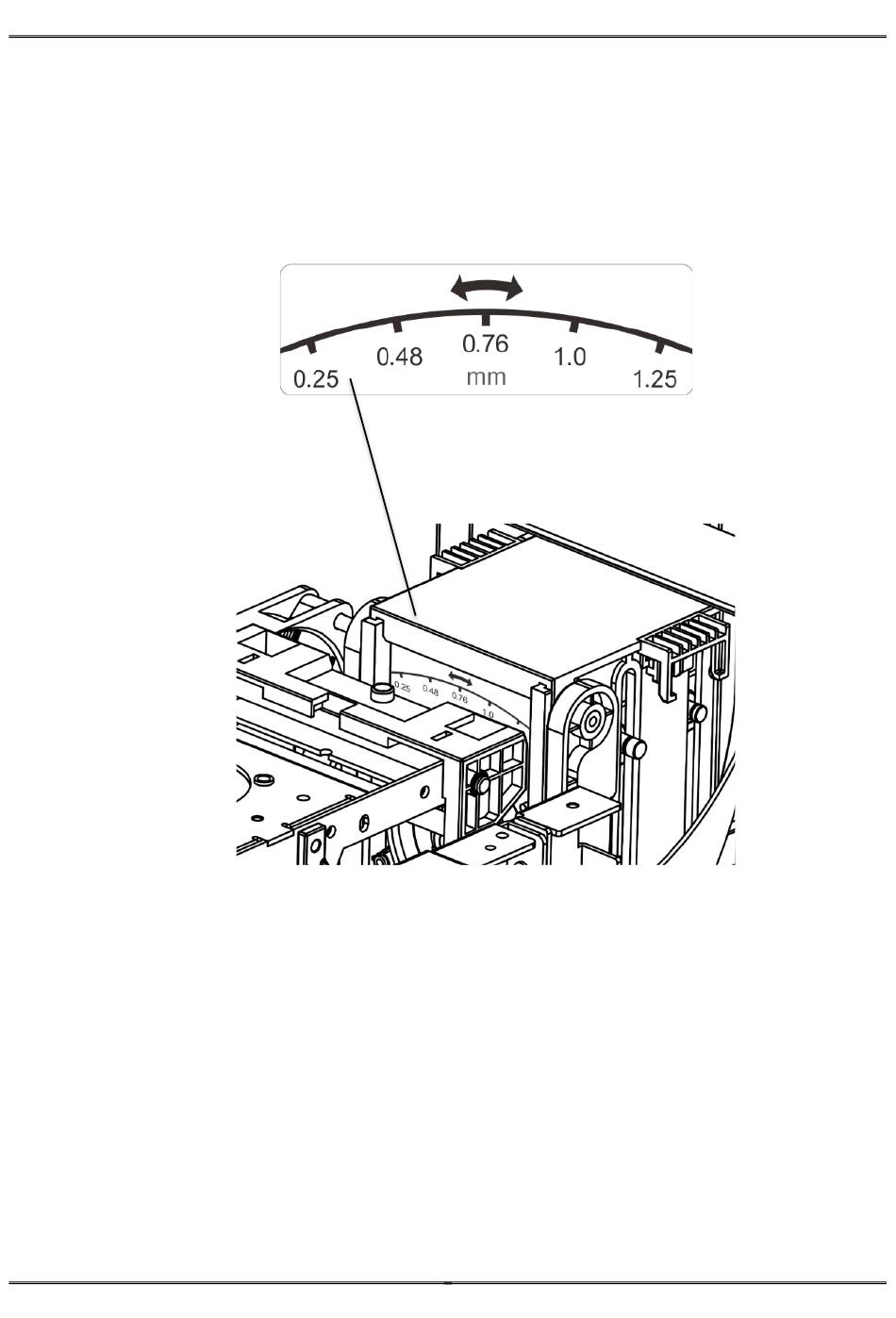

2.1.3 Adjusting the card inlet according to the thickness of the cards

The factory default supports 0.76mm (30mil) card thickness. Confirm the correct thickness setting before
installing new cards to the card cassette. The printer configures with 0.25mm(10mil)~ 0.76mm(30mil) and
0.76mm(30mil)~ 1.25mm (50mil) , 5 levels. Set the lever to the correct position.

2.1.4 Managing Rejected Cards

Using duplex option, this Printer is equipped with front and rear slots to separate correctly printed cards
from rejected ones. By default, rejected cards are ejected out the rear slot. However, the two slots are
interchangeable for your preference.
Follow the below procedures to assign the location of the Reject Slot:
 Refer Section 3.2 to change from Normal Mode to User Mode.
 Press the ▼ Key until [Card Setup] is displayed. Press the SET Key.
