Quick Start Guide AD9779A/78A/76A-DPG2-EBZ

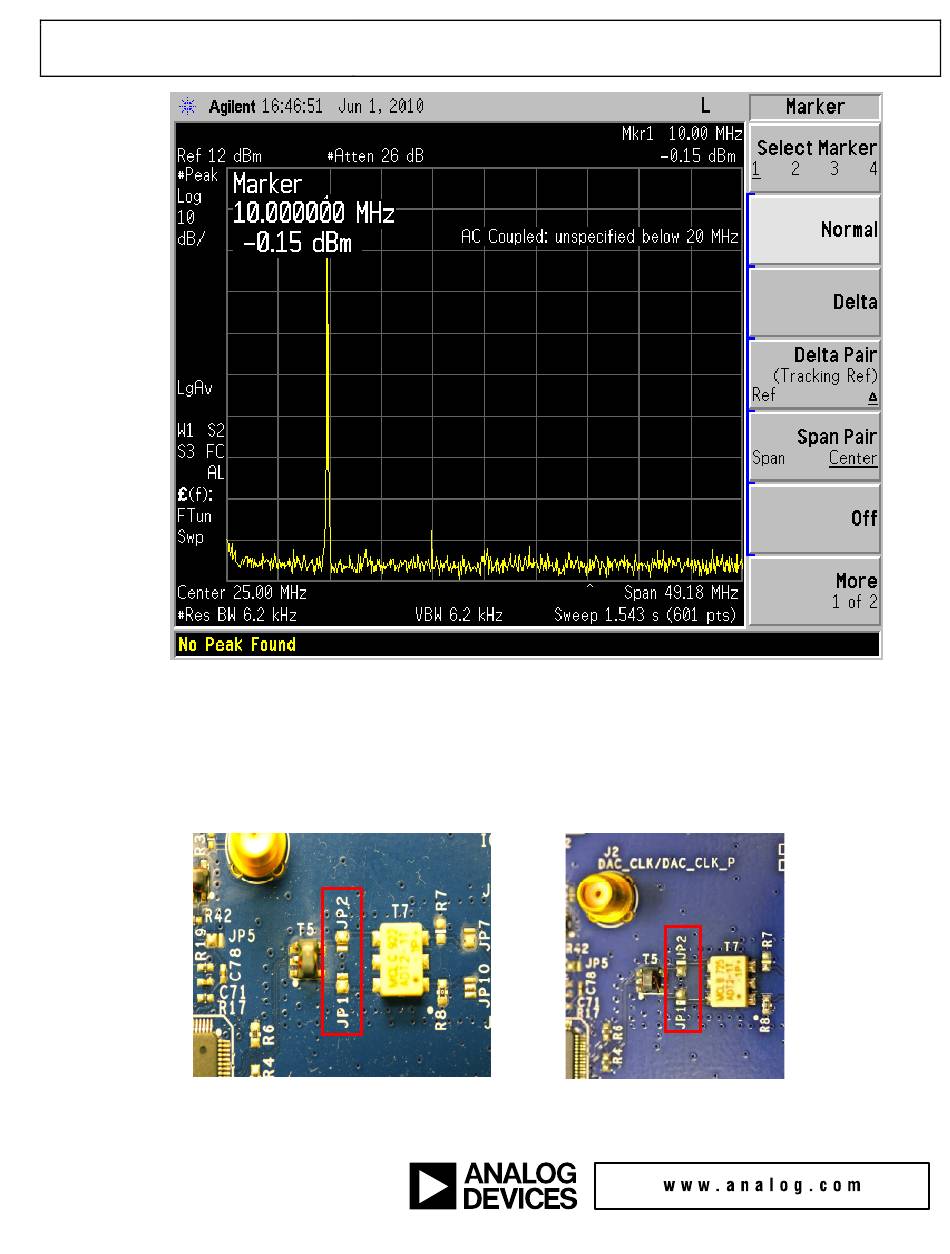

Figure 7 I DAC Output Signal Screenshot
Selecting the Modulator Outputs
By default, solder jumpers JP1, JP2, JP3, and JP4 configure the evaluation board for the DAC outputs to be observed at SMA J4 for IDAC
and J8 for QDAC. This jumper setting is shown in 8 a). To connect to the filter that feed ADL5375 the solder jumpers need to be
repositioned as shown in 8 b). The output from the ADL5375 Modulator can be observed SMA J6, RF out.
Figure 8 – a) DAC Output Configuration b) Modulator Output Configuration
