Supplement
Press the [CHART HOLD] key (to hold-down the media) again to release the electrostatic adhesion. The green lamp will no longer be lit.
It may take some time to be able to hold-down the media by pressing the [CHART HOLD] key (to hold-down the media) depending
on operating environment.
After the media has been held for a while by electrostatic adhesion, it may become charged with static electricity and therefore be
harder to remove from the writing panel. There is nothing abnormal about this phenomenon.
Magnetic
(1) Place the media on the writing panel.
(2) Secure the edges of the media with the sheet holder plates which are supplied with your plotter as standard accessories.

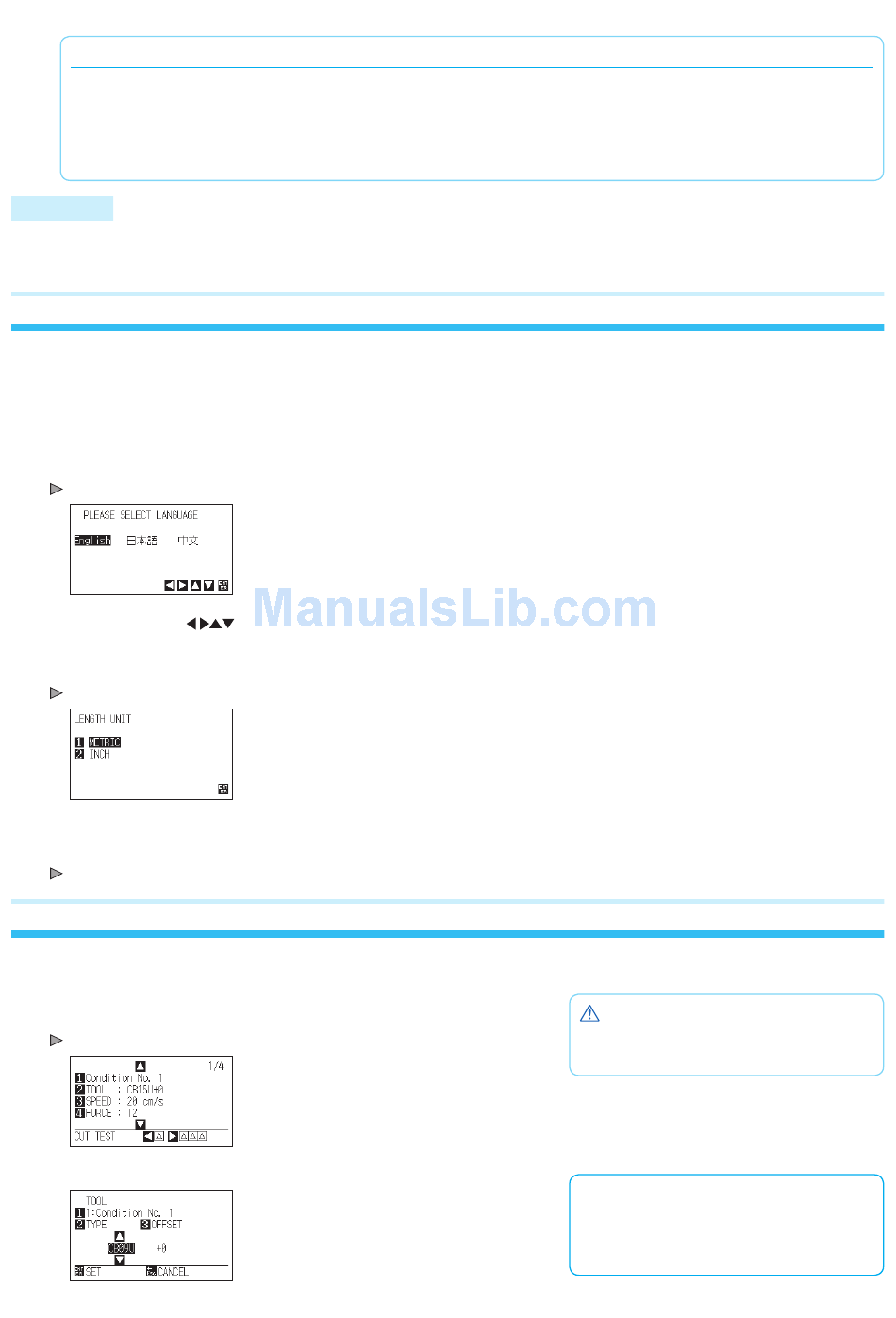

3 About the Initial Setup screen

The Initial Setup Screen appears only when powering up the machine for the first time after purchase. Here, you can set the
display language and length unit.
You can also enter the menu select from the READY status after a setup.
(See "Display Language Settings (Language)" and "Display Length Unit Settings (Length Unit)" in the User's Manual (PDF).)
See "Connecting to the Power Supply" in the User's Manual (PDF) for turning on the power.
1
Once the machine is powered on (" | " side) a message will be displayed after the version will be displayed.
Here, DISPLAY LANGUAGE setting screen is displayed.
2
Use the POSITION (
(This manual assumes you chose the English language setting.)
3
Press the [ENTER] key.
After the DISPLAY LANGUAGE is selected, the LENGTH UNIT screen will appear.
4
Press the [1] key (METRIC) or the [2] key (INCH) to select the length unit setting.
5
Confirm the setting and press the [ENTER] key.
Setting will be set, and it will return to default screen.
4 Tool adjustment and test cutting
After setting the Tool/Speed/Force/Acceleration, make test cutting, and repeat until optimal condition is achieved.
1
Load the media for test cutting in the plotter.
2
Press the [COND/TEST] key in the default screen.
CONDITION setting screen (1/4) is displayed.
3
Set the Tool conditions (Tool, Speed, Force, Acceleration).
) keys to select the language.
CAUTION
Do not touch the Tool tip when power is turned
on or during operation.
Setting the Tool conditions
See "Selecting Tool Condition" in the User's
Manual (PDF) for more information on how to
set the various cutting conditions.
