SETUP MANUAL
This manual provides the setup procedure.
For details on each function, refer to the instruction manual
(PDF) .
The manual (PDF) is available at:
http://www.graphteccorp.com/support/index.html

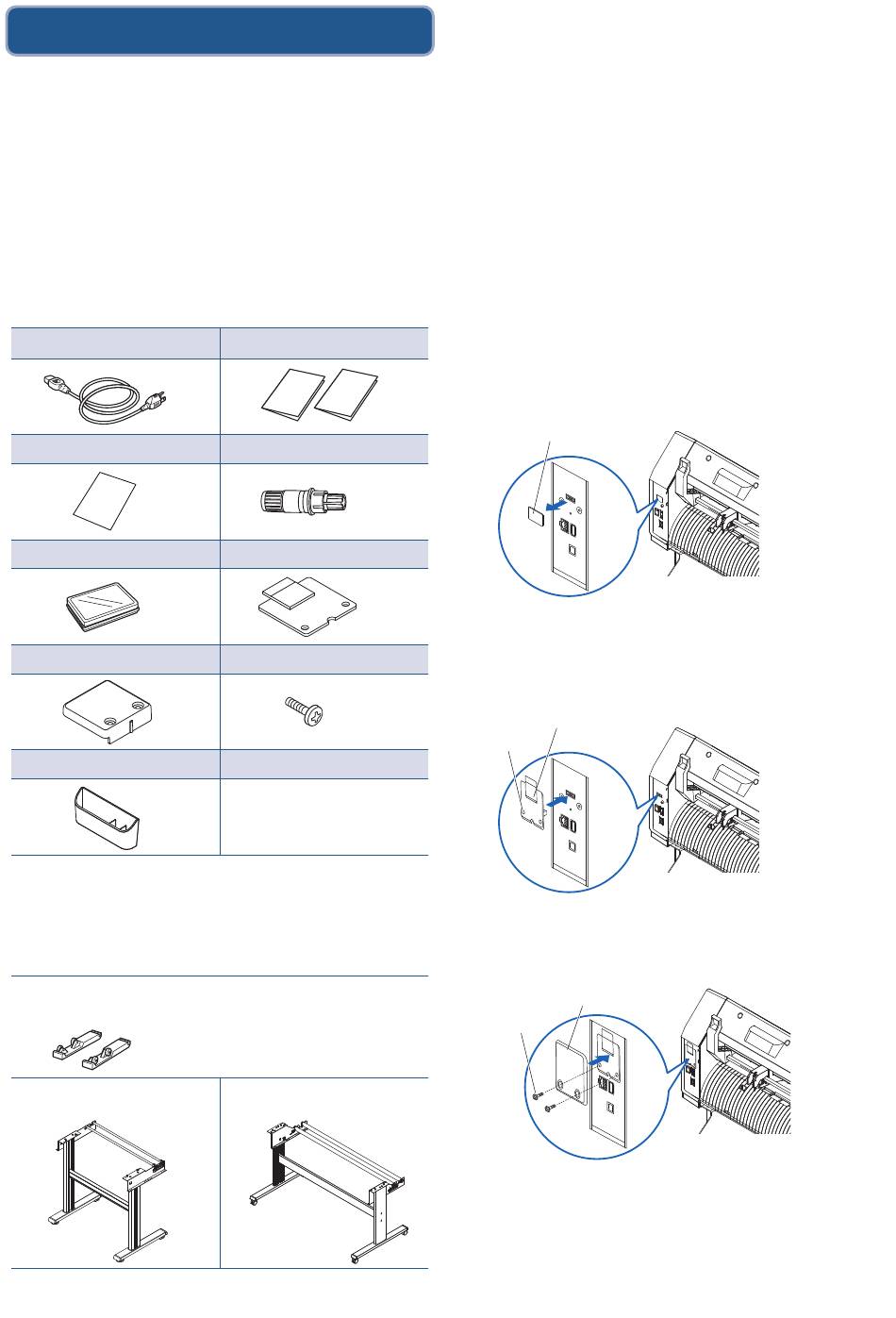

Checking the Accessories
Please check that all the accessories are complete.
If you find any accessories missing, please contact the
distributor where you purchased immediately.
Power cable
WEB download guide
Cutter blade (CB09UB (1P))
Wireless LAN module cover
*1
Accessory case
*1
The accessory case has a magnet.
Please attach it in a convenient location.
* In addition, various information may be attached.
* Accessories may vary depending on the sales area.
* For details, please contact the distributor where you purchased.
CE8000-40
Roll-medium tray 1 set
CE8000-60
Stand 1 set
1 pc.
SETUP MANUAL / TO ENSURE SAFE AND
CORRECT USE
1 sht.
Cutter plunger (PHP33-CB09N-HS)
1 pc.
Wireless LAN module
1 pc.
Screws for wireless LAN module
1 pc.
CE8000-130
Stand 1 set
Installing driver/software
The latest version of driver or software and installation
instructions are available at:
http://www.graphteccorp.com/support/index.html
Please download it if necessary.
* Do not connect the computer to the cutting plotter before
installing the following driver/software.
Windows driver
●
Graphtec Studio 2 (Windows/Mac)
●
Cutting Master 5 (Windows/Mac)
●
Mounting the wireless LAN module
When using wireless LAN, install the wireless LAN module
using the following steps.
* Check that the power switch is turned off (the "○" side is
1 of each
pressed down).
1. Remove the wireless LAN module cap.
Wireless LAN module cap
1 pc.
1 pc.
2. Install the wireless LAN module to the wireless LAN
connection terminal with the hole facing down.
2 pcs.
Ensure that the wireless LAN module is securely installed
all the way to the back.
Wireless LAN module
Hole
3. Secure the wireless LAN module cover and the wireless
LAN module with screws using a Phillips screwdriver.
* Please prepare your own Phillips screwdriver.
Screws
For wireless LAN settings, refer to "Instruction manual".
Wireless LAN
module cover
