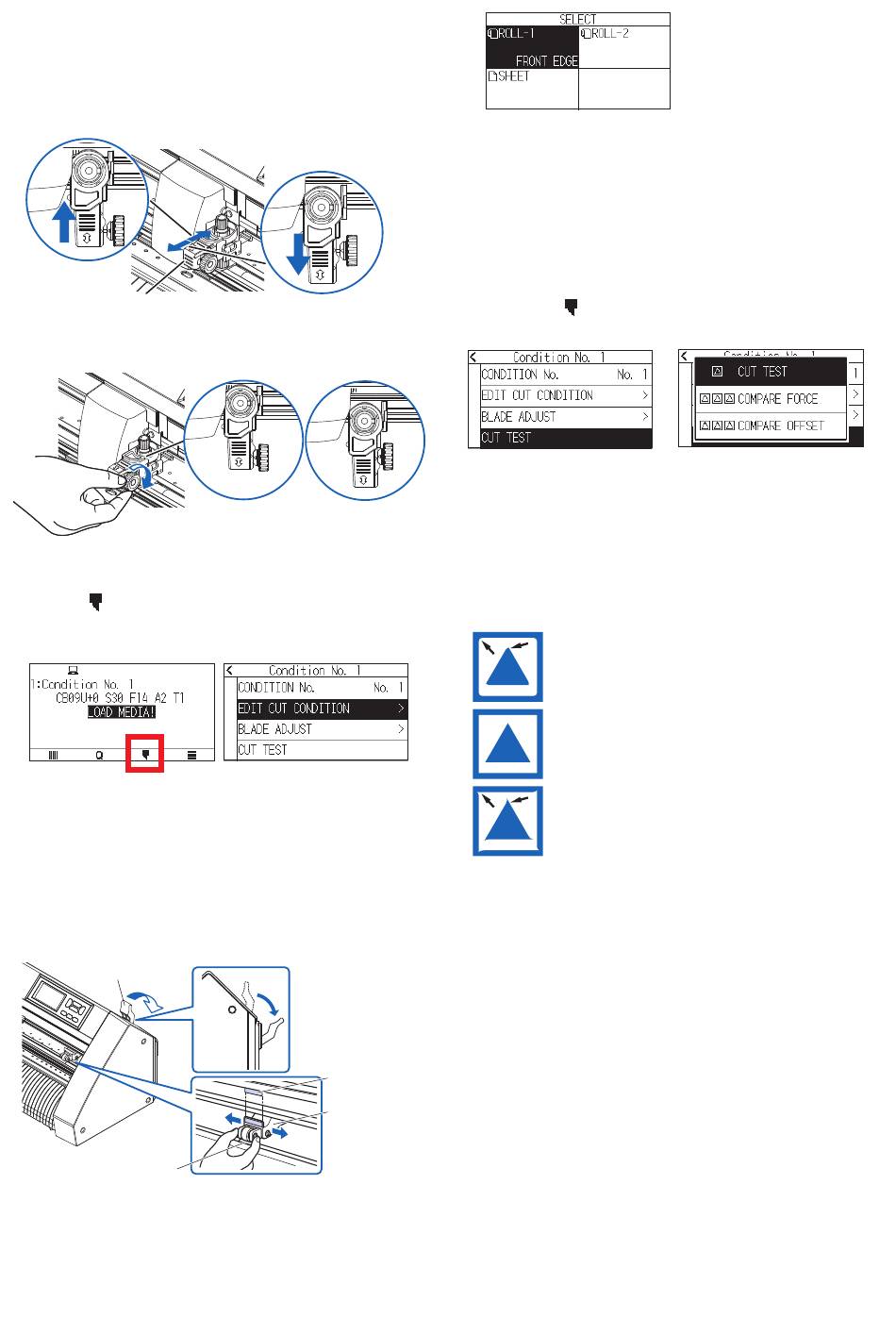

3. Move the tool clamper.
<When using with half cut and pen>
Move using the triangle mark in the forward as a guide. (Fig. 1)
<When using the cutting out (perforation cut)>
Move using the triangle mark in the back side as a guide. (Fig. 2)
Fig. 1
Tool clamper
4. Tighten the tool holder screw.

Cutting condition setting

Press the " " icon and set the cutting conditions.
For details on each setting item, refer to the "Instruction
manual".

Aligning the push roller

Lower the media set lever to raise the push rollers.
Adjust the left and right push roller positions according to the
width of the media.
Use the roller position guide to place the push rollers on both
ends of the media and the right push roller on the rightmost
wide grit roller.
Media set lever
Grit roller
Media set selection
Media set selection Load the media, raise the media set lever
to lower the push rollers.
Select the media condition according to the loaded media.
After the media is detected, the Home screen is displayed.
ROLL-1 FRONT EDGE:
The media width and front edge are detected.
ROLL-2 CURRENT POSITION:
Only the media width is detected.
SHEET:
The media width, front edge and back edge of sheet media
are detected.
Cutting a test pattern
Click on the "
Fig. 2
"CUT TEST" menu.
Check the result of the test cut and adjust the SPEED,
FORCE and ACCELERATION to the optimum value.
When a general cutting media is used, set to a value that will
cause a thin scratch on the backing sheet.
Check the corners of triangles and rectangles and adjust the
offset to ensure they are neatly cut.
How to check offset
After checking or adjusting those, the setup has been
completed.
Then the cutting plotter is ready to cut.
Push roller
position guide
Push roller
" icon and then select "CUT TEST" from the
The corners are rounded:
Not enough adjustment value.
Increase the offset value.
The corner is cut cleanly:
Optimal offset value.
The corner is sticking out like the mustache:
Too much adjustment value.
Decrease the offset value.
