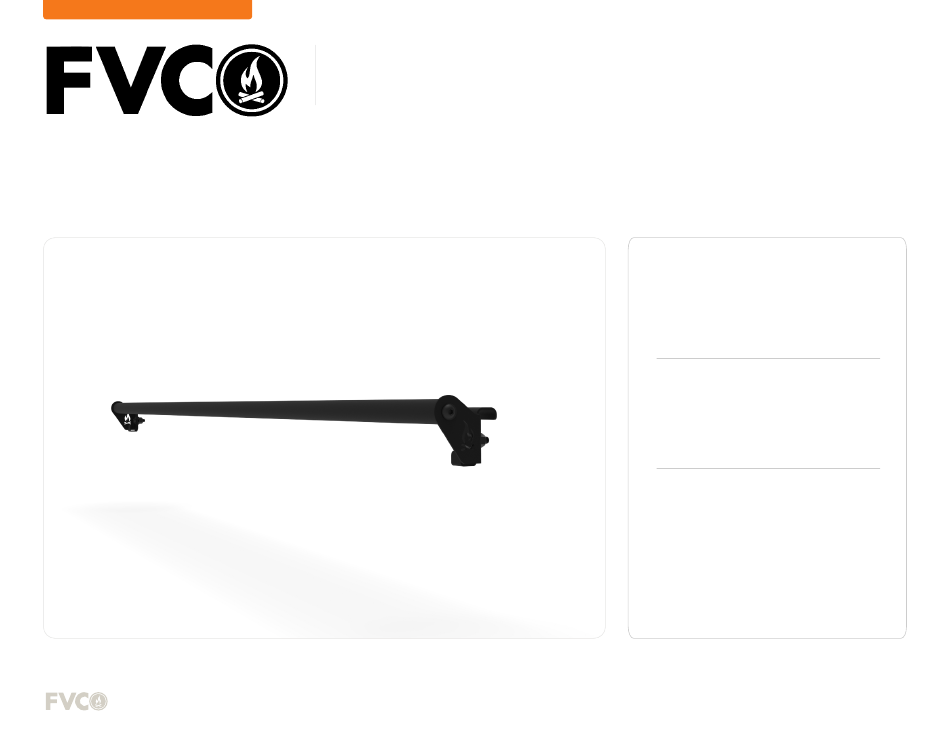

S PRI NTER HE AD LINER S HE LF CU RTAI N R OD
SP1010 B
INSTALLATION
GUIDE
F L AT L I N E VA N C O • S U P P O R T @ F L AT L I N EVA N C O . C O M • 8 8 8 - 6 6 7- 5 5 7 6
TOOLS REQUIRED
(NOT INCLUDED)
+
POWER DRILL
+
MARKER
+
7/16" WRENCH OR SOCKET
+
9/32" DRILL BIT
+
5/32" ALLEN WRENCH
INSTALL INFO
TIME TO INSTALL THIS PRODUCT: 30-45 MINUTES
Additional help is suggested for a few of the install steps.
Compatible with all FVC Rear Door Platforms.
BEFORE YOU START
Please inspect the product and packaging upon
delivery to ensure there are no issues and that
all parts and hardware are accounted for.
Contact us ASAP if anything is missing at:
support@flatlinevanco.com
0 1
Advertisement
Related Manuals for FVC SP1010B
Summary of Contents for FVC SP1010B
- Page 1 INSTALL INFO TIME TO INSTALL THIS PRODUCT: 30-45 MINUTES Additional help is suggested for a few of the install steps. Compatible with all FVC Rear Door Platforms. BEFORE YOU START Please inspect the product and packaging upon delivery to ensure there are no issues and that all parts and hardware are accounted for.
-
Page 2: Before You Start
BEFORE YOU START All Flatline Van Co products must be properly assembled and secured before attaching to your vehicle. Improper attachment could result in an automobile accident, and could cause serious bodily injury or death to you or to others involved. You are responsible for assembling and securing Flatline Van Co products to your vehicle, checking the mounting points and attachments prior to use, and regularly inspecting the products for wear and or damage. -
Page 3: Package Contents
PACKAGE CONTENTS PASSENGER SIDE CURTAIN CURTAIN ROD WELDMENT DRIVER SIDE BRACKET BRACKET QTY: 1 QTY: 1 QTY: 1 F L AT L I N E VA N C O • S U P P O R T @ F L AT L I N EVA N C O . C O M • 8 8 8 - 6 6 7- 5 5 7 6... - Page 4 HARDWARE 1/4-20 X 0.75 FLANGED 1/4-20 NYLON INSERT BUTTON HEAD HEX DRIVE 1/4 SCREW FLAT WASHER THREADLOCKER LOCKNUT SCREW QTY: 4 QTY: 2 QTY: 2 QTY: 1 F L AT L I N E VA N C O • S U P P O R T @ F L AT L I N EVA N C O . C O M • 8 8 8 - 6 6 7- 5 5 7 6...
- Page 5 INSTALL TOOLS REQUIRED FOR THIS STEP: 5/32” ALLEN WRENCH STEP | 01 ASSEMBLE CURTAIN ROD 1.1 Assemble Curtain Rod: Use (1ea) 1/4-20 X 0.75” Flanged Button Head Screws with Loctite to install Driver and Passenger Side Brackets on the end of the Curtain Rod Weldment (FIG 1).
- Page 6 POWER DRILL TOOLS REQUIRED FOR THIS STEP: MARKER 7/16” WRENCH OR SOCKET 9/32” DRILL BIT 5/32” ALLEN WRENCH STEP | 02 INSTALL CURTAIN ROD 2.1 Position Curtain Rod: Hang the Curtain Rod on the Headliner Shelf (FIG 3). Position the Curtain Rod so that it is centered.
- Page 7 FVC (and see) from you! Head to the products and following along and we will make it right. FVC is product page and click “Leave a company of van and outdoor with your adventures. Tag us Review.”...
