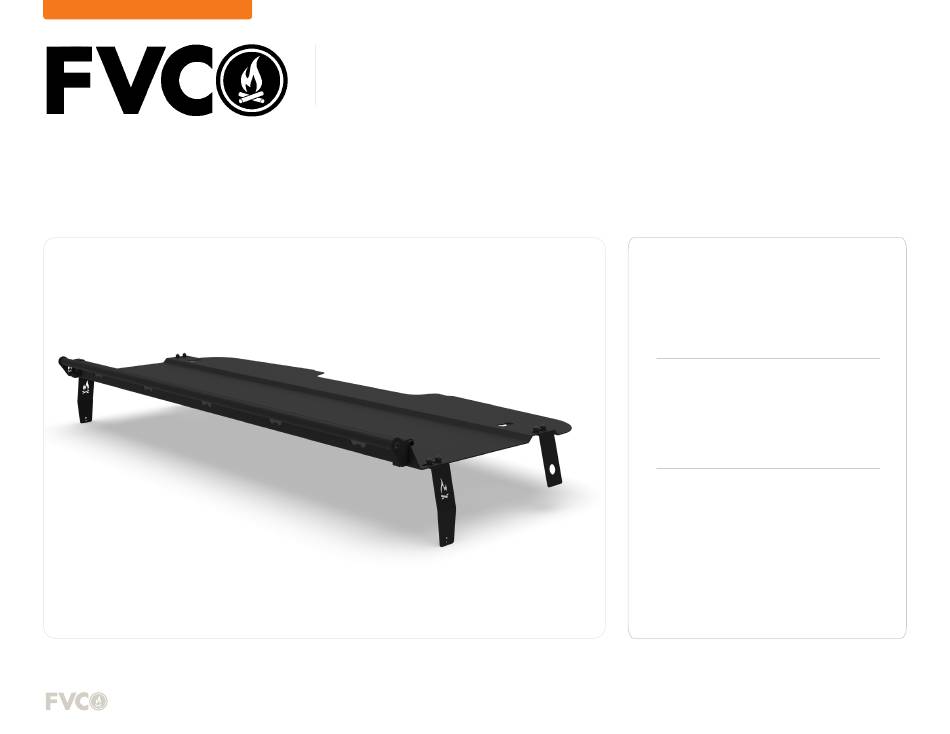

S PRI NTER HE AD LINER S HE LF AN D CURTAI N R OD
SP5002 B + SP1 010B
INSTALLATION
GUIDE
F L AT L I N E VA N C O • S U P P O R T @ F L AT L I N EVA N C O . C O M • 8 8 8 - 6 6 7- 5 5 7 6
TOOLS REQUIRED
+
T25 TORX
+
POWER DRILL
+
T30 TORX
+
MARKER
+
7/16" WRENCH OR SOCKET
+
7/16" WRENCH OR SOCKET
+
5/32" ALLEN WRENCH
+
9/32" DRILL BIT
+
FLATHEAD SCREWDRIVER
INSTALL INFO
TIME TO INSTALL THIS PRODUCT: 1 HOUR
Additional help is suggested for a few of the install steps.
Compatible with all FVC Rear Door Platforms.
BEFORE YOU START
Please inspect the product and packaging upon
delivery to ensure there are no issues and that
all parts and hardware are accounted for.
Contact us ASAP if anything is missing at:
support@flatlinevanco.com
(NOT INCLUDED)
0 1
Advertisement
Related Manuals for FVC SP5002B
Summary of Contents for FVC SP5002B
- Page 1 INSTALL INFO TIME TO INSTALL THIS PRODUCT: 1 HOUR Additional help is suggested for a few of the install steps. Compatible with all FVC Rear Door Platforms. BEFORE YOU START Please inspect the product and packaging upon delivery to ensure there are no issues and that all parts and hardware are accounted for.
-
Page 2: Before You Start
BEFORE YOU START All Flatline Van Co products must be properly assembled and secured before attaching to your vehicle. Improper attachment could result in an automobile accident, and could cause serious bodily injury or death to you or to others involved. You are responsible for assembling and securing Flatline Van Co products to your vehicle, checking the mounting points and attachments prior to use, and regularly inspecting the products for wear and or damage. -
Page 3: Package Contents
PACKAGE CONTENTS HEADLINER SHELF B-PILLAR BRACKET GRAB HANDLE BRACKET QTY: 1 QTY: 2 QTY: 2 PASSENGER SIDE CURTAIN CURTAIN ROD WELDMENT DRIVER SIDE BRACKET BRACKET QTY: 1 QTY: 1 QTY: 1 F L AT L I N E VA N C O • S U P P O R T @ F L AT L I N EVA N C O . C O M • 8 8 8 - 6 6 7- 5 5 7 6... - Page 4 HARDWARE 1/4-20 X 0.75 FLANGED 1/4-20 NYLON INSERT BUTTON HEAD HEX DRIVE 1/4 SCREW FLAT WASHER THREADLOCKER LOCKNUT SCREW QTY: 12 QTY: 10 QTY: 10 QTY: 1 F L AT L I N E VA N C O • S U P P O R T @ F L AT L I N EVA N C O . C O M • 8 8 8 - 6 6 7- 5 5 7 6...
- Page 5 INSTALL TOOLS REQUIRED FOR THIS STEP: FLATHEAD SCREWDRIVER T25 TORX STEP | 01 REMOVE COAT HOOKS 1.1 Remove Coat Hooks on B-Pillar: Use a Flathead Screwdriver to gently pry off the Coat Hook Covers (FIG 2) on the B-Pillar before using a T25 Torx to remove the screws holding the Coat Hook Brackets in place (FIG 4).
- Page 6 T25 TORX TOOLS REQUIRED FOR THIS STEP: STEP | 02 INSTALL B-PILLAR BRACKETS 2.1 Position Bracket Behind Plastic: Place the B-Pillar Bracket behind the Plastic Trim of the B-Pillar (FIG 5) and align the holes of the bracket with that of the trim (FIG 6). 2.2 Secure Bracket Behind Plastic: Secure the B-Pillar Bracket using the factory hardware and Coat Hook Bracket removed in the previous steps.
- Page 7 T30 TORX TOOLS REQUIRED FOR THIS STEP: STEP | 03 INSTALL GRAB BRACKETS 3.1 Loosen Factory Grab Handle From Van Wall: Use a T30 Torx to remove the screws holding the factory Grab Handle (FIG 9+10) in place and loosen from van wall. NOTE - There is a structural metal insert inside the handle that can make it difficult to pull away from the wall, so you may need to pry it out a bit to loosen it up enough for bracket install.
- Page 8 T25 TORX TOOLS REQUIRED FOR THIS STEP: T30 TORX 5/32” ALLEN WRENCH 7/16” WRENCH OR SOCKET STEP | 04 INSTALL HEADLINER SHELF 4.1 Position Headliner Shelf: With help, raise up and place your Headliner Shelf so that the front edge rests on the visors of the van (FIG 13) and the rear flange rests the B-Pillar Bracket flanges as shown in FIG 14.
- Page 9 TOOLS REQUIRED FOR THIS STEP: 5/32” ALLEN WRENCH STEP | 05 ASSEMBLE CURTAIN ROD 5.1 Assemble Curtain Rod: Use (1ea) 1/4-20 X 0.75” Flanged Button Head Screws with Loctite to install Driver and Passenger Side Brackets on the end of the Curtain Rod Weldment (FIG 17).
- Page 10 POWER DRILL TOOLS REQUIRED FOR THIS STEP: MARKER 7/16” WRENCH OR SOCKET 9/32” DRILL BIT 5/32” ALLEN WRENCH STEP | 06 INSTALL CURTAIN ROD 6.1 Position Curtain Rod: Hang the Curtain Rod on the Headliner Shelf (FIG 19). Position the Curtain Rod so that it is centered.
- Page 11 FVC (and see) from you! Head to the products and following along and we will make it right. FVC is product page and click “Leave a company of van and outdoor with your adventures. Tag us Review.”...
