- Page 1 Installation Guide Sprinter Nudge Bar SP1106B FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576...
- Page 2 All Flatline Van Co products must be properly assembled and secured before attaching to your vehicle. Improper attachment could result in an automobile accident, and could cause serious bodily injury or death to you or to others involved. You are responsible for assembling and securing Flatline Van Co products to your vehicle, checking the mounting points and attachments prior to use, and regularly inspecting the products for wear and or damage.
- Page 3 THANK YOU! ARE YOU EXCITED ABOUT YOUR NEW NUDGE BAR? HERE ARE A FEW THINGS TO DO TOOLS BEFORE BEGINNING THE INSTALLATION PROCESS-- • PLEASE INSPECT THE PRODUCT TO ENSURE THERE WAS NO DAMAGE INCURRED DURING SHIPPING. • IF THERE IS DAMAGE TO REPORT, PLEASE CONTACT OUR CUSTOMER SERVICE DEPARTMENT AS SOON AS POSSIBLE.
-
Page 4: Package Contents

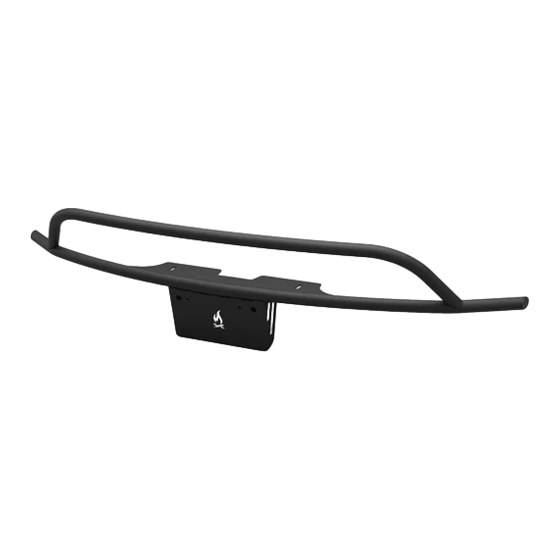

PACKAGE CONTENTS NUDGE BAR QTY - 1 FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576... - Page 5 HARDWARE 1/4-20 X 0.75 FLANGED M8-1.25 X 40 FLANGED HEX M8 SCREW X 24 O.D. BUTTON HEAD HEX DRIVE HEAD SCREW OVERSIZED FLAT WASHER SCREW QTY - 2 QTY - 2 QTY - 2 FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576...
-
Page 6: Let's Get Started
LET’S GET STARTED! FIRST STEP IS TO REMOVE THE FACTORY BOLTS ON THE STEP PORTION OF YOUR BUMPER. SOMETIMES THERE ARE PLASTIC CAPS INSTALLED, AND THESE ARE EASILY REMOVED WITH A FLATHEAD SCREWDRIVER. THE BOLTS THEMSELVES REQUIRE A T45 BIT TO REMOVE. NEXT, SOME VANS COME EQUIPPED WITH THE EUROPEAN STYLE LICENSE PLATE COVER, IF THIS IS THE CASE FOR YOU, IT WILL NEED TO BE REMOVED. - Page 7 SET IN PLACE AND THREAD IN HARDWARE NOW TAKE THE NUDGE BAR AND REST IT ON THE FRONT STEP AREA. LINE UP THE MOUNTING SLOTS AND THREAD IN THE HARDWARE SHOWN BELOW. THE LARGE WASHER GOES UNDERNEATH THE HEAD OF THE M8 BOLT. THREAD THIS FINGER TIGHT.
- Page 8 IF YOUR VAN IS EQUIPPED WITH THE FRONT VIEW OR 360 CAMERA PACKAGES; BELOW IS AN IMAGE OF WHAT YOUR FRONT VIEW CAMERA WILL SHOW AFTER INSTALLING THE NUDGE BAR. FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576...
- Page 9 CUSTOMER SUPPORT If you are having any issues with your product, please reach out, and we will make it right. FVC is a company of van and outdoor enthusiasts that design and use our own products, so we want you to be as stoked on your new parts as we are! @flatlinevanco...
