S PRI NTER VAN R E AR ST E P
SP1101 B
INSTALLATION
GUIDE
F L AT L I N E VA N C O • S U P P O R T @ F L AT L I N EVA N C O . C O M • 8 8 8 - 6 6 7- 5 5 7 6
TOOLS REQUIRED
(NOT INCLUDED)
+
RATCHET
+
16MM SOCKET OR WRENCH
+
18MM SOCKET OR WRENCH
+
BREAKER BAR (RECOMMENDED)
INSTALL INFO
TIME TO INSTALL THIS PRODUCT: 45 MINUTES
Additional help is suggested for a few of the install
steps.
BEFORE YOU START
Please inspect the product and packaging upon
delivery to ensure there are no issues and that all
parts and hardware are accounted for.
Contact us ASAP if anything is missing at:
support@flatlinevanco.com
0 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the SP1101B and is the answer not in the manual?

Questions and answers

Summary of Contents for FVC SP1101B

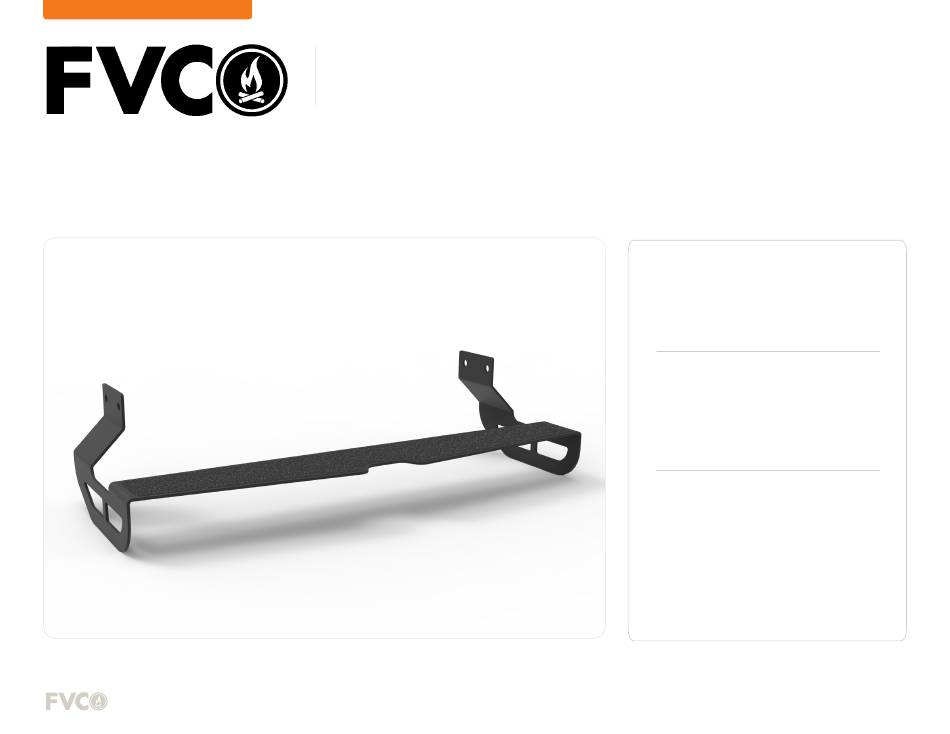

  • Page 1 INSTALLATION GUIDE S PRI NTER VAN R E AR ST E P SP1101 B TOOLS REQUIRED (NOT INCLUDED) RATCHET 16MM SOCKET OR WRENCH 18MM SOCKET OR WRENCH BREAKER BAR (RECOMMENDED) INSTALL INFO TIME TO INSTALL THIS PRODUCT: 45 MINUTES Additional help is suggested for a few of the install steps.
  • Page 2: Before You Start

    BEFORE YOU START All Flatline Van Co products must be properly assembled and secured before attaching to your vehicle. Improper attachment could result in an automobile accident, and could cause serious bodily injury or death to you or to others involved. You are responsible for assembling and securing Flatline Van Co products to your vehicle, checking the mounting points and attachments prior to use, and regularly inspecting the products for wear and or damage.
  • Page 3: Package Contents

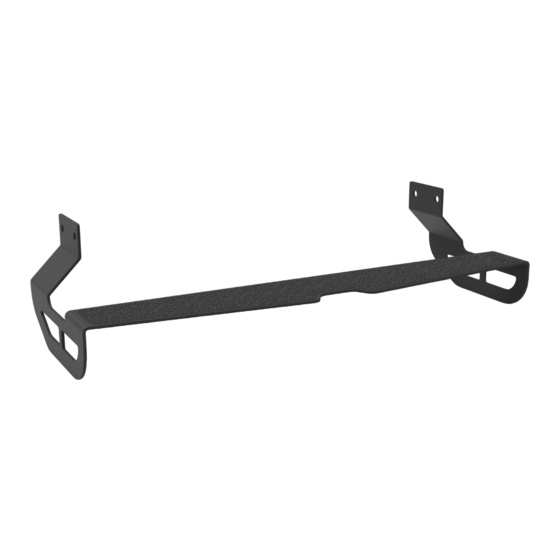

    PACKAGE CONTENTS REAR STEP QTY: 1 F L AT L I N E VA N C O • S U P P O R T @ F L AT L I N EVA N C O . C O M • 8 8 8 - 6 6 7- 5 5 7 6...
  • Page 4 INSTALL TOOLS REQUIRED FOR THIS STEP: T45 TORX KEY RATCHET FLATHEAD SCREWDRIVER STEP | 01 LAYOUT AND INSTALL PREP 1.1 Checking for Factory Tow Package: If your vehicle does not have the factory tow package with step (FIG 1+2), proceed to the next page.
  • Page 5 T45 TORX KEY TOOLS REQUIRED FOR THIS STEP: RATCHET 13MM WRENCH OR SOCKET LOCTITE BREAKER BAR STEP | 02 REMOVING FACTORY STEP 2.1 Removing Factory Step: Start by removing the factory step. There are three bolts to remove, all requiring a 16mm Box Wrench Or Socket.
  • Page 6 TOOLS REQUIRED FOR THIS STEP: STEP | 03 INSTALLING REAR STEP 3.1 Removing Tow Hitch Bolts: Next, remove the two lower bolts that attach the tow hitch on both sides of the frame. These bolts require an 18mm Box Wrench Or Socket. They may be very tight, requiring a Breaker Bar.
  • Page 7 FVC (and see) from you! Head to the products and following along and we will make it right. FVC is product page and click “Leave a company of van and outdoor with your adventures. Tag us Review.”...
