- Page 1 INSTALLATION GUIDE INTEGRATED INFOTAINMENT TOUCH SCREEN SOLUTION FOR VAUXHALL VIVARO 2014 - PART NUMBER: UN1810E-VX4 Copyright © 2023 StingerElectronics-EU.com...
-
Page 2: About This Product

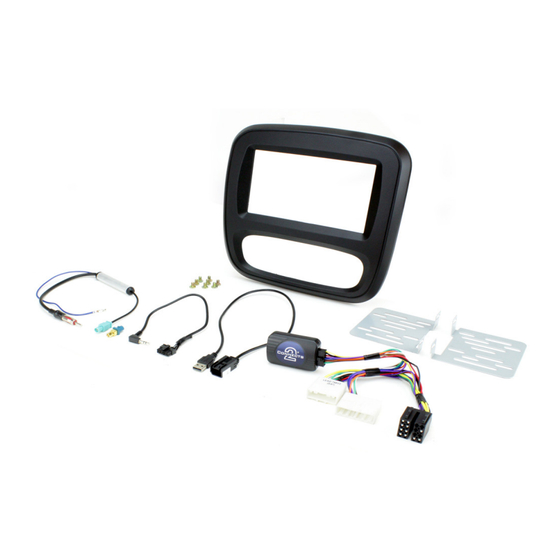

Please note: Not compatible for amplified models. CONTENTS • HEIGH10® unit with fitting accessories and wiring • Black double DIN fascia plate (with accessories) • Vehicle retention interface with plug-and-play harness • Vehicle specific antenna adapter (AM/FM/DAB) • Stinger stereo patch lead • Instruction manual www.stingerelectronics-eu.com... - Page 3 FITTING GUIDE STEREO REMOVAL Step 1 - Using a plastic trim tool, careful pry the sur- rounding edges in order to free the housing from the dash. Step 2 - Remove 4x T20 screws which can be found in the in the outer corners of the radio.
- Page 4 FITTING GUIDE STEREO REMOVAL Step 4 - Pull the radio radio forward, disconnecting all of the connectors. Take the HEIGH10® components and begin to assemble the core components in accordance with the “Installation Manual” that comes with unit. HEIGH10 ASSEMBLY www.stingerelectronics-eu.com...
-
Page 5: Interface Setup
FITTING GUIDE FASCIA PLATE SET-UP 1. With the HEIGH10® unit configured correctly, attach the fascia brackets to the relevant sides of the radio module using the screws within the kit. Place into the vehicle and roughly test fit with the fascia to measure whether the brackets need moving forwards/backwards. -
Page 6: Product Information
PRODUCT INFORMATION CTSVX007.2 The CTSVX007.2 is an Analogue steering wheel control interface that allows the installation of an aftermarket single or double stereo into select Vauxhall vehicles. This interface and harness combination allows the retention of select steering wheel controls and phone button functionality (if applicable). -
Page 7: Prior To Installation
PRIOR TO INSTALLATION Read the manual prior to installation. Technical knowledge is necessary for installation. The place of installation must be free of moisture and away from heat sources. Please ensure that the correct tools are using during the installation to avoid damage to the vehicle or product. Connects2 can not be held responsible for the installation of this product. -
Page 8: Wiring Diagram
WIRING DIAGRAM Vehicle Specific Connectors Male ISO Connector Connect to relevant connectors from vehicle Connect to aftermarket stereo Main Wiring Loom Connector [14 Pin] Connect to Interface Box Interface Box Stereo Connection (Patch) Lead Connector [12 Pin] Connect to Interface Box Note: Must be connected first, before power connection is made to the... -
Page 9: Technical Assistance
E-Mail: stinger.eu@aampglobal.com Mon - Fri 9am - 5.30pm GMT If you would like to download a digital copy of this manual, or any other product, then please visit the www.Stinger- Electronics-EU.com website. This manual is considered correct at the time of printing but is subject to change. For the latest manuals & updates, refer to our website.
