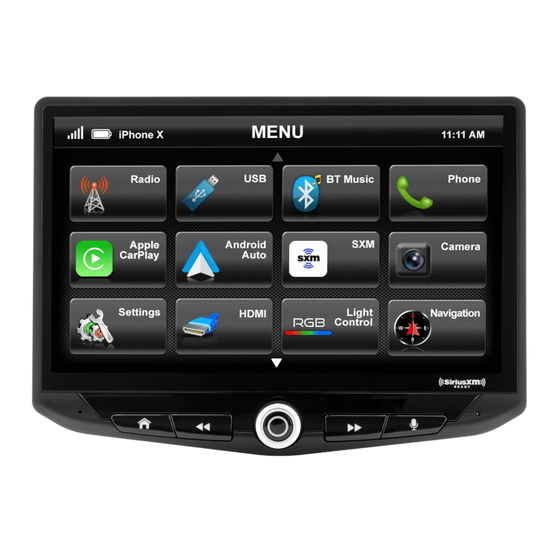

- Page 1 INSTALLATION GUIDE INTEGRATED INFOTAINMENT TOUCH SCREEN SOLUTION FOR Audi R8 2007-2015 PART NUMBER: UN1810E-AU1 Copyright © 2023 StingerElectronics-EU.com...
-
Page 2: About This Product
Please note: Not compatible for models with a digital amplifier. B&O audio equipment is not supported. CONTENTS • HEIGH10® unit with fitting accessories and wiring • Black double DIN fascia plate (with accessories) • Vehicle retention interface with plug-and-play harness • Vehicle specific antenna adapter (AM/FM) • Stinger stereo patch lead • Instruction manual www.stingerelectronics-eu.com... - Page 3 FITTING GUIDE STEREO REMOVAL Step 1 - Using 4x European release keys, insert a key into into each locating slot which can be found on the corners of the radio as indicated by the image. This will release the locking tabs securing the radio to the dash of the vehicle.
- Page 4 FITTING GUIDE STEREO REMOVAL Step 4 - Unplug the connector in order to free the out- er fascia. This will be re installed once the new fascia is installed. Take the HEIGH10® components and begin to assemble the core components in accordance with the “Installation Manual”...
- Page 5 FITTING GUIDE FASCIA PLATE SET-UP 1. With the HEIGH10® unit configured correctly, attach the fascia brackets to the relevant sides of the radio module using the screws within the kit. Place into the vehicle and roughly test fit with the fascia to measure whether the brackets need moving forwards/backwards.
-
Page 6: Prior To Installation
CTSAD006.2 CAN-Bus Steering wheel control interface for Audi vehicles with Concert, Chorus or Symphony original stereos and Quadlock connectors. Retains OEM phone buttons and BOSE amplified systems WIRING COLOUR CODES Purple Right Rear Speaker + Yellow Permanent 12V Black Ground Purple/Black Right Rear Speaker - Ignition 12V Green... - Page 7 FITTING GUIDE 1. Remove and disconnect the original head unit. 2. Connect the 12 way molex connector of the head unit patch lead (supplied separately) to the interface. 3. Connect the opposite end of head unit patch lead to the head unit steering wheel control input on the back of the aftermarket head unit.
- Page 8 FITTING GUIDE 6. Connect the amp retention interface to the loom via the molex connector 7. Connect the female vehicle specific connectors on the harness to the male vehicle con- nector from the vehicle. Test head unit for correct operation. STEERING WHEEL CONTROL FUNCTIONALITY Original Button Function...
- Page 9 E-Mail: stinger.eu@aampglobal.com Mon - Fri 9am - 5.30pm GMT If you would like to download a digital copy of this manual, or any other product, then please visit the www.Stinger- Electronics-EU.com website. This manual is considered correct at the time of printing but is subject to change. For the latest manuals & updates, refer to our website.
