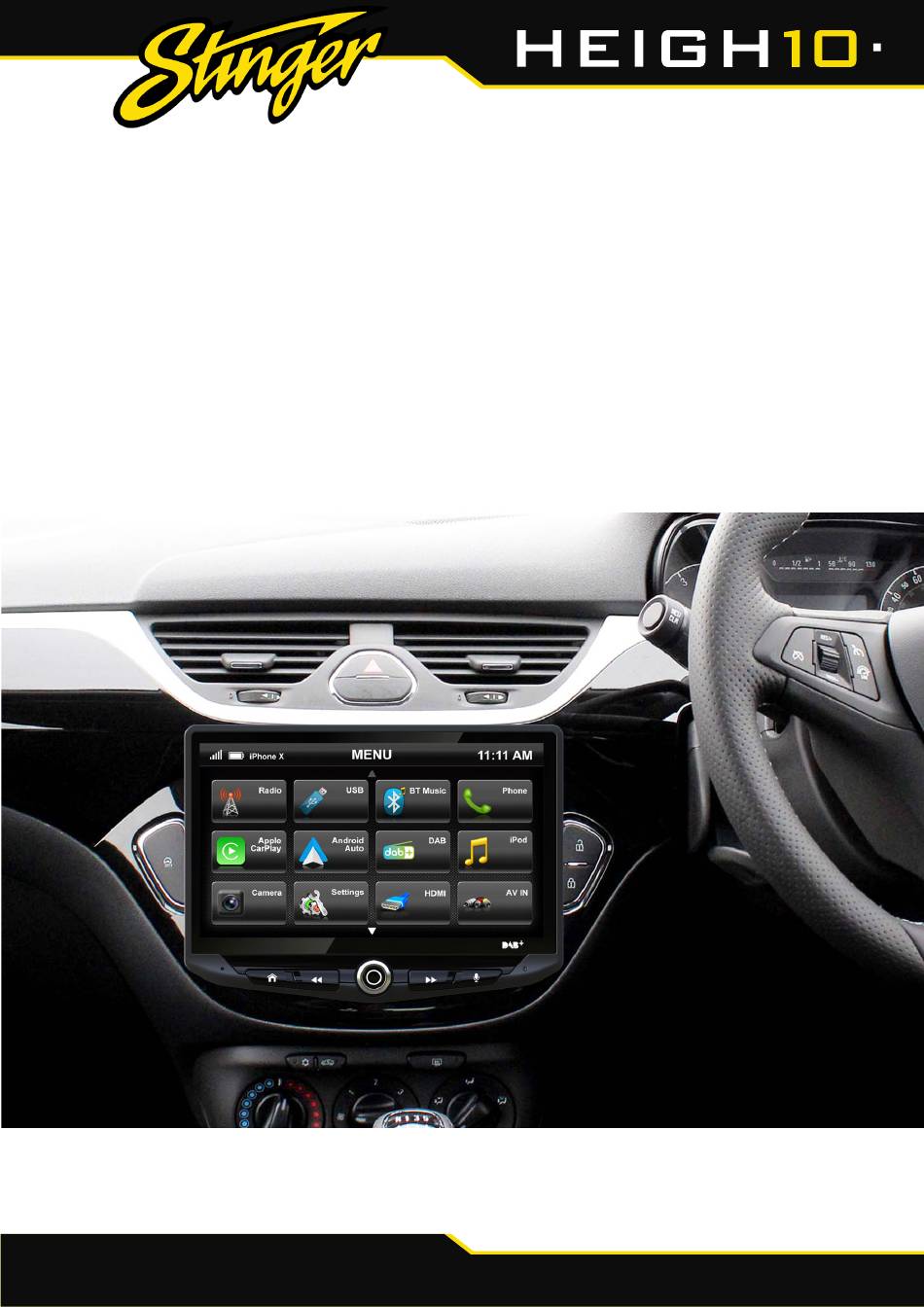

- Page 1 INSTALLATION GUIDE INTEGRATED INFOTAINMENT TOUCH SCREEN SOLUTION FOR VAUXHALL CORSA E 2014 - 2019 PART NUMBER: UN1810E-VX2 Copyright © 2023 StingerElectronics-EU.com...
- Page 2 Please note: Not compatible for amplified models. CONTENTS • HEIGH10® unit with fitting accessories and wiring • Black double DIN fascia plate (with accessories) • Vehicle retention interface with plug-and-play harness • Vehicle specific antenna adapter (AM/FM) • Stinger stereo patch lead • Instruction manual www.stingerelectronics-eu.com...
- Page 3 FITTING GUIDE STEREO REMOVAL www.stingerelectronics-eu.com...
- Page 4 FITTING GUIDE STEREO REMOVAL 1. Using a trim removal tool, remove the plastic piece of trim which runs along the dash. 2. Remove the 2x T20 screws which secure the outer radio fascia to the vehicle’s dash. 3. Using your trim removal tool, unclip the plastic trim surrounding the radio. 4.
- Page 5 FITTING GUIDE FASCIA PLATE SET-UP 1. With the HEIGH10® unit configured correctly, attach the fascia brackets to the relevant sides of the radio module using the screws within the kit. Place into the vehicle and roughly test fit with the fascia to measure whether the brackets need moving forwards/backwards.
-
Page 6: Dip Switch Settings
ABOUT The Connects2 Infodapter for Vauxhall vehicles allows vehicle setting and parking sensor information to be displayed on any aftermarket head unit with rear camera input. The Infodapter also allows the use of the steering wheel controls with almost every steering wheel control compatible head unit on the market. -
Page 7: Steering Wheel Controls
STEERING WHEEL CONTROLS Fig 3. 1. Source 2. Track +/- 3. Volume + 4. Volume - 5. Speech/Pick Up 6. Mute/Hang Up CONFIGURATION MENU To access the menu, push and hold the Configuration Menu source button for 2 seconds (Fig. 3). This will Vehicle Settings enable the configuration menu. - Page 8 Infodapter Settings • Screen Size/Position Horizontal Size o Screen Size/Position - Horizontal Position Vertical Size Make sure all 4 corner markers are Vertical Position touching the corners of the aftermarket < Back head unit display. o Picture Settings - Infodapter Settings Adjust Brightness, contrast and Screen Size/Position colour saturation.
- Page 9 E-Mail: stinger.eu@aampglobal.com Mon - Fri 9am - 5.30pm GMT If you would like to download a digital copy of this manual, or any other product, then please visit the www.Stinger- Electronics-EU.com website. This manual is considered correct at the time of printing but is subject to change. For the latest manuals & updates, refer to our website.
