- Page 1 PART NUMBER: UN1810E-LR1 INSTALLATION GUIDE LANDROVER DEFENDER 2007 - 2016 10-INCH INFOTAINMENT TOUCH SCREEN SOLUTION WITH INTEGRATED VEHICLE DATA StingerElectronics-EU.com...

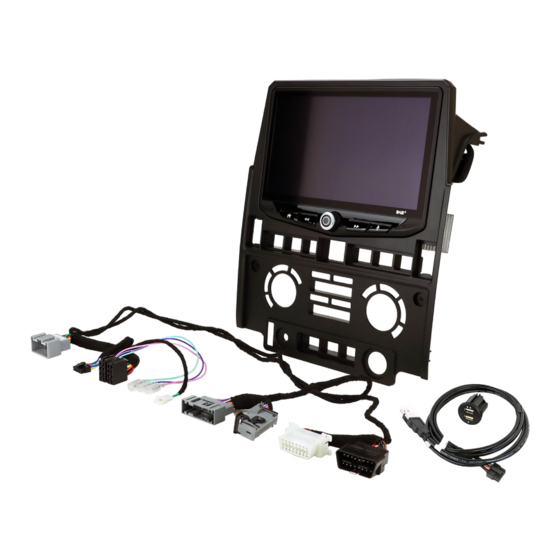

- Page 2 CONTENTS • HEIGH10® unit with fitting accessories and wiring • Black double DIN fascia plate (with accessories) • Vehicle plug-and-play harness • Vehicle specific antenna adapter (AM/FM) • Stinger stereo patch lead • Instruction manual...
- Page 3 FITTING GUIDE STEREO REMOVAL Turn off the ignition and remove the key from the ignition switch to prevent any electrical shock or damage. Use the radio removal keys to remove the radio. Insert the tools into the slots on either side of the radio until you hear a click.
- Page 4 FITTING GUIDE Take the HEIGH10® components and assemble the core components per the “Installation Manual” that comes with the unit. HEIGH10 ASSEMBLY FITTING GUIDE FASCIA PLATE SET-UP Note: The Land Rover Defender dashboard will require some cutting to install the fascia and head unit correctly. Cut the highlighted panels to ensure a perfect fit.
- Page 5 FITTING GUIDE Assemble the supplied brackets and attach them to the chassis of the Heigh10 unit as shown 1. Right Bracket x 1 2. Left Bracket x 1 3. Heigh10 Chassis x 1 4. M5 x 8 Button/Hex Socket x 4 Carefully detach the heater display panel from the OEM panel, ensuring no damage occurs.
- Page 6 FITTING GUIDE Securely affix the Heigh10 screen to the aftermarket panel using the provided M4x10mm screws. Securely affix the assembled Heigh10 chassis to the aftermarket panel using the provided ST2.9x10mm screws.
- Page 7 FITTING GUIDE This section of the sub-assembly should arrive preassembled; however, if it does not, please follow the diagram to attach the vents to the top panel of the aftermarket fascia. This section of the sub-assembly should arrive preassembled; however, if it does not, please follow the diagram to attach the top panel of the aftermarket fascia to the main section of the fascia using the...
- Page 8 E-Mail: UKsales@stingersolutions.com Mon - Fri 9am - 5.30pm GMT If you would like to download a digital copy of this manual, or any other product, then please visit the www.Stinger- Electronics-EU.com website. This manual is considered correct at the time of printing but is subject to change. For the latest manuals & updates, refer to our website.
