- Page 1 INSTALLATION GUIDE INTEGRATED INFOTAINMENT TOUCH SCREEN SOLUTION FOR FIAT DUCATO 8 SERIES 2021-UP FOR OPEN DASH VEHICLES ONLY PART NUMBER: UN1810E-FT4 Copyright © 2023 StingerElectronics-EU.com...
-
Page 2: About This Product

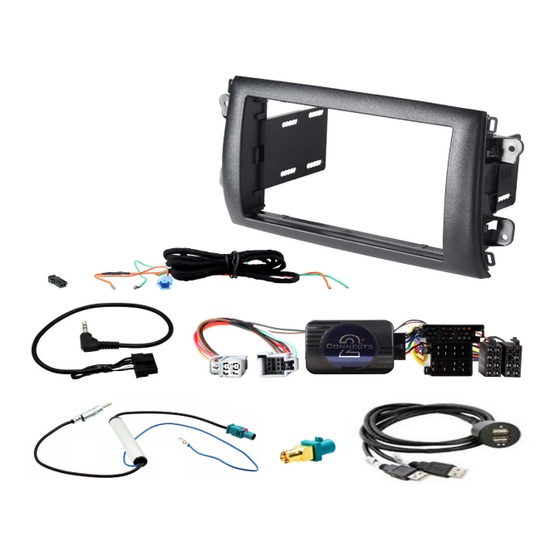

Please note: this installation kit is for facelift models, and will not work with amplified vehicles. CONTENTS • HEIGH10® unit with fitting accessories and wiring • Black double DIN fascia plate (with accessories) • Vehicle retention interface with plug-and-play harness • Vehicle specific antenna adapter • Stinger stereo patch lead • Instruction manual www.stingerelectronics-eu.com... -
Page 3: Product Information
FITTING GUIDE HEIGH10 ASSEMBLY PRODUCT INFORMATION The steering wheel control interface for Fiat Ducato motorhome vehicles which come without fac- tory stereos. This interface helps to retain the steering wheel controls and phone button function- ality when upgrading to an aftermarket stereo. WIRING KEY IN WIRING HARNESS Yellow... - Page 4 FITTING GUIDE Read the manual prior to installation. Technical knowledge is necessary for installation. The place of installation must be free of moisture and away from heat sources. Please ensure that the correct tools are used during the installation to avoid damage to the vehicle or product. Connects2 can not be held responsible for the installation of this product.
- Page 5 FITTING GUIDE See wiring diagram on Pg.6 for more information 5. Route the pin end of the speed/reverse wires from the main dash aperture through and down toward the fuse panel. The bare ended wires will remain in the dashboard aperature for use on the new head unit.
-
Page 6: Wiring Diagram
WIRING DIAGRAM Rear of Black Connector [20-pin] Rear of Green Connector [20-pin] Reverse Signal [Orange] Speed Signal [Green] Connect to rear pin location 17 Connect to rear pin location 22 on green connector on black connector OEM Speed Signal [Blue/White] Connect to OEM speed signal wire into a 2-pin housing, and connect to the blue 2-pin connector... - Page 7 STEERING WHEEL CONTROL FUNCTIONALITY The following diagram, though based on careful research, is an example only. Individual steering wheel control configurations may differ. FRONT BACK If you would like to download a digital copy of this manual, or any other product, then please visit the www.StingerElectronics-EU.com website.
-
Page 8: Technical Assistance
AGREEMENT: End user agrees to use this product in compliance with the instructions and terms of use and with all laws. STINGER provides instructions and safety warnings with respect to this product and disclaims all liability for any use not in conjunction with those instructions or other misuse of its product. If you do not agree, please discontinue use and contact STINGER.
