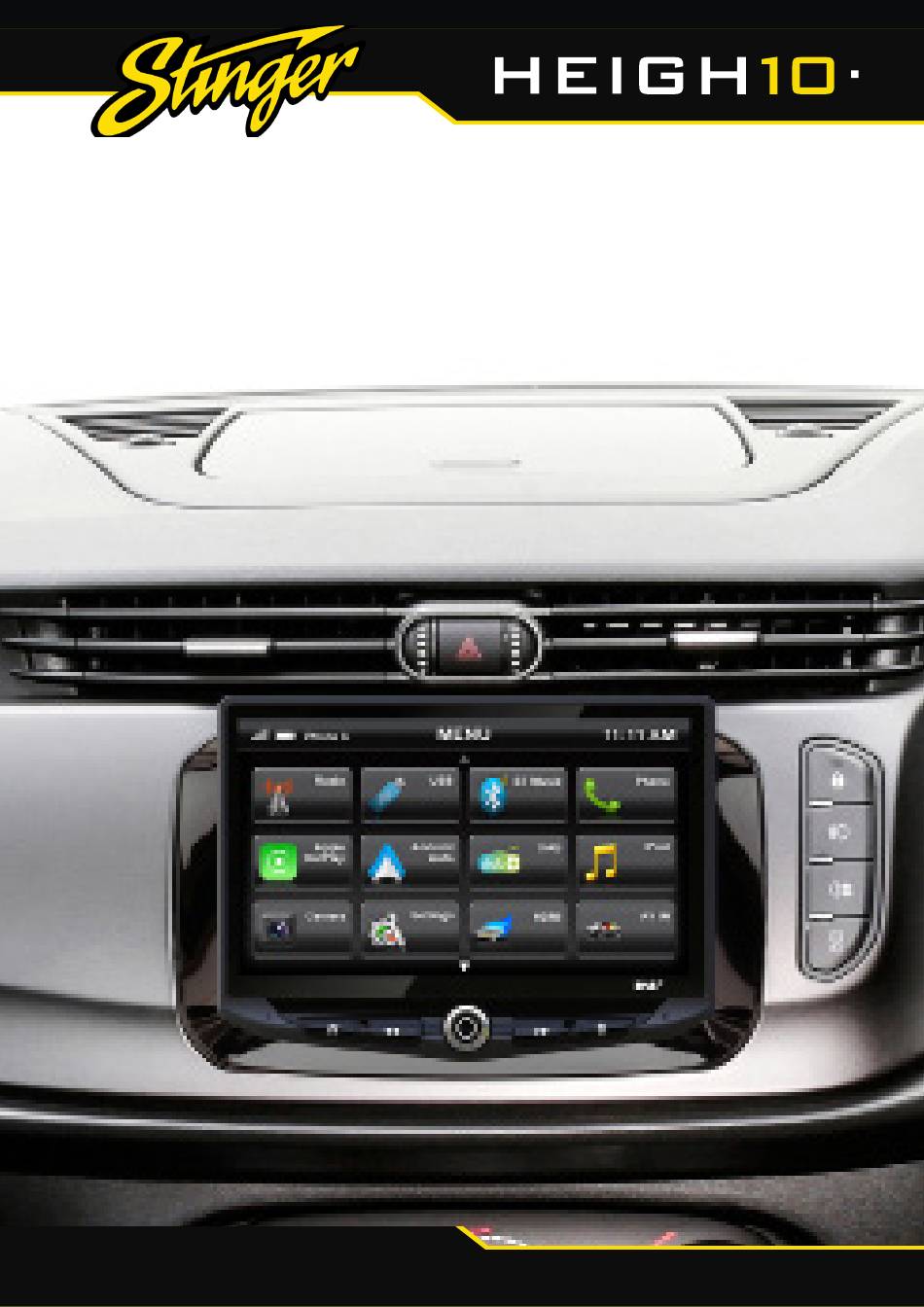

- Page 1 INSTALLATION GUIDE INTEGRATED INFOTAINMENT TOUCH SCREEN SOLUTION FOR ALFA ROMEO GIULETTA 2014 - 2021 PART NUMBER: UN1810E-AR1 Copyright © 2022 StingerElectronics-EU.com...

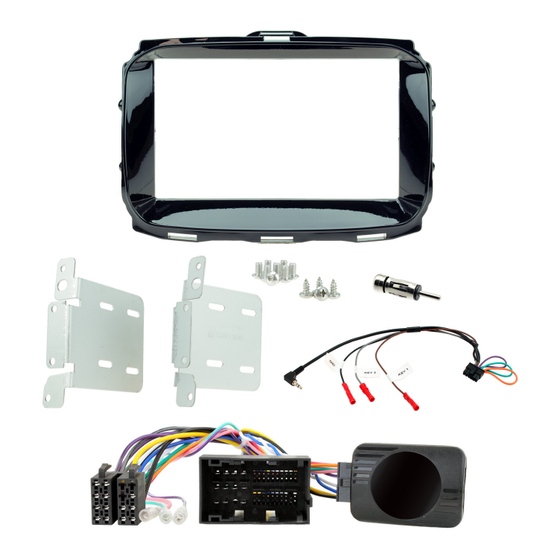

- Page 2 • HEIGH10® unit with fitting accessories and wiring • Piano black double DIN fascia plate (with accessories) • Vehicle retention interface with plug-and-play harness • Vehicle specific antenna adapter • USB retention lead • Stinger stereo patch lead • Instruction manual www.stingerelectronics-eu.com...
- Page 3 FITTING GUIDE STEREO REMOVAL 1. Open the glovebox and you will find a circular piece of plastic in the rim, pop this out of place and it will reveal a screw that holds one section of the fascia in place. 2.
- Page 4 FITTING GUIDE FASCIA PLATE SET-UP 1. With the HEIGH10® unit configured correctly, attach the fascia brackets to the relevant sides of the radio module using the screws within the kit. Place into the vehicle and roughly test fit with the fascia to measure whether the brackets need moving forwards/backwards. 2.
- Page 5 STEERING WHEEL CONTROL FUNCTIONALITY Please note: configuration layout may differ dependent on vehicle model. Original Button New Function 1. Mute 1. Mute 2. Speech 2. Source (Long Press: Enter Config. Menu) 3. Volume + 3. Volume + 4. Volume - 4.
- Page 6 CONFIGURATION MENU FUNCTIONALITY VEHICLE SETTINGS This interface retains the ability to adjust selected vehicle settings* on the new stereo Vehicle Settings that were present when the original head unit was installed. Display Clock The options available will depend on the individual vehicle and system specification. Safety and Driving Assistance These might include lights, locks, mirrors, time &...
- Page 7 WIRING DIAGRAM Flying Wire Outputs OEM Specific Connector Pink - Speed Pulse Connect to relevant connector from vehicle ISO Connector Green - Park Brake Connect to new stereo Purple/White - Reverse Gear Female Yellow RCA Connector Camera Harness Connect reversing camera Connector [4 Pin] (optional) Connect to Interface Box...
- Page 8 Copyright 2022 by Stinger. AGREEMENT: End user agrees to use this product in compliance with the instructions and terms of use and with all laws. STINGER provides instructions and safety warnings with respect to this product and disclaims all liability for any use not in conjunction with those instructions or other misuse of its product. If you do not agree, please discontinue use and contact STINGER.
