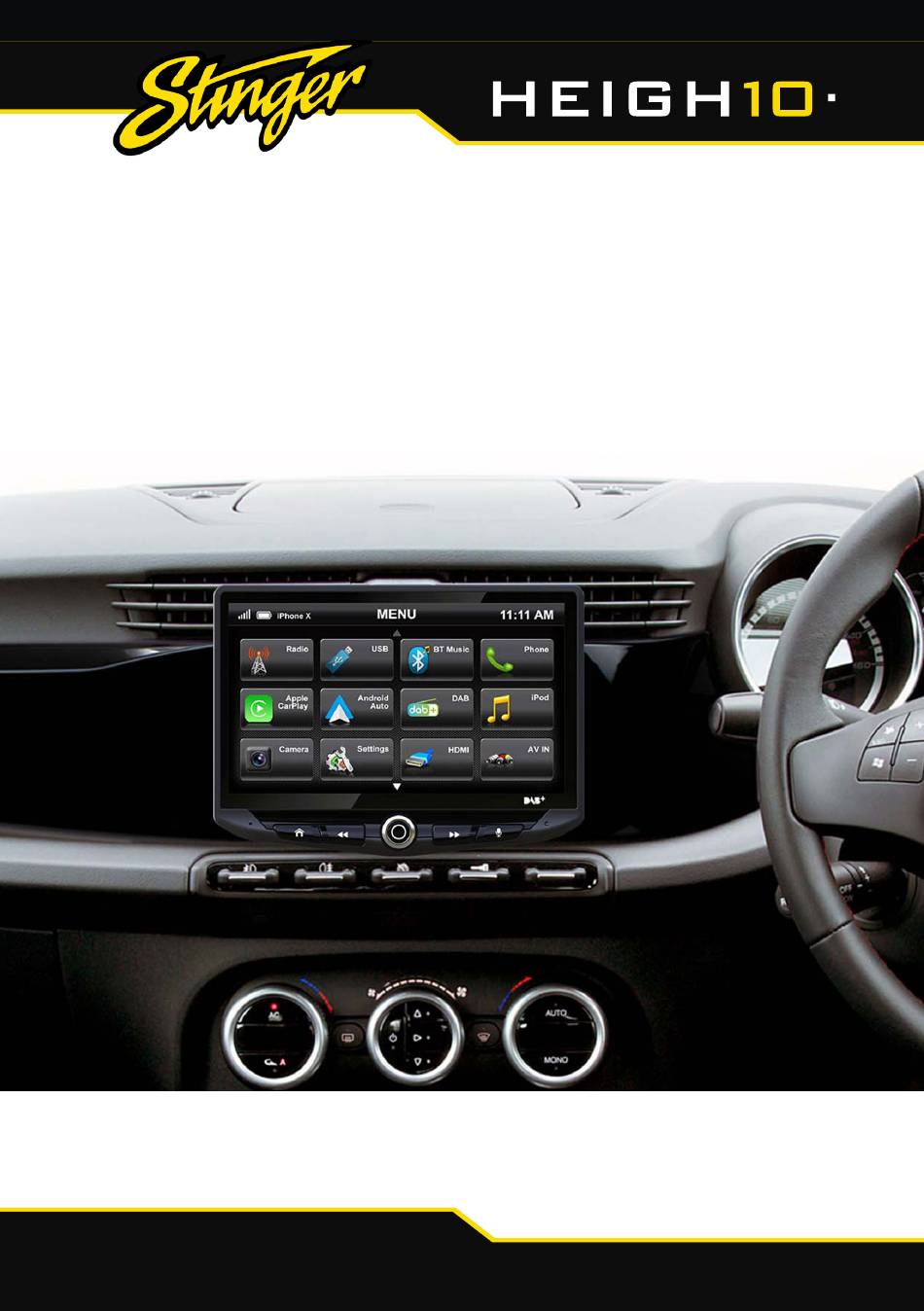

- Page 1 INSTALLATION GUIDE INTEGRATED INFOTAINMENT TOUCH SCREEN SOLUTION FOR ALFA ROMEO GIULETTA 2010 - 2014 PART NUMBER: UN1810E-AR2 Copyright © 2022 StingerElectronics-EU.com...
-
Page 2: About This Product
CONTENTS • HEIGH10® unit with fitting accessories and wiring • Piano black double DIN fascia plate (with accessories) • Vehicle steering wheel interface with plug-and-play harness • Vehicle specific antenna adapter • Stinger stereo patch lead • Instruction manual www.stingerelectronics-eu.com... - Page 3 FITTING GUIDE STEREO REMOVAL 1. Open the glovebox and you will find a circular piece of plastic in the rim, pop this out of place and it will reveal a screw that holds one section of the fascia in place. 2.
-
Page 4: Interface Setup
FITTING GUIDE FASCIA PLATE SET-UP 1. With the HEIGH10® unit configured correctly, attach the fascia brackets to the relevant sides of the radio module using the screws within the kit. Place into the vehicle and roughly test fit with the fascia to measure whether the brackets need moving forwards/backwards. - Page 5 STEERING WHEEL CONTROL FUNCTIONALITY Please note: configuration layout may differ dependent on vehicle model. Original Button New Function 1. Mute 1. Mute 2. Window Icon 2. Hang Up 3. Volume + 3. Volume + 4. Volume - 4. Volume - 5.
-
Page 6: Wiring Diagram
WIRING DIAGRAM Flying Wires Pink - Speed Pulse Green - Park Brake Purple - Reverse Gear Blue- Amp Remote Turn On Mini ISO Connector Connect to connector from vehicle ISO Connector Connect to new stereo Main Wiring Loom Connector [14 Pin] Connect to Interface Box Interface Box Stereo Connection (Patch) - Page 7 NOTES www.stingerelectronics-eu.com...
-
Page 8: Technical Assistance
AGREEMENT: End user agrees to use this product in compliance with the instructions and terms of use and with all laws. STINGER provides instructions and safety warnings with respect to this product and disclaims all liability for any use not in conjunction with those instructions or other misuse of its product. If you do not agree, please discontinue use and contact STINGER.
