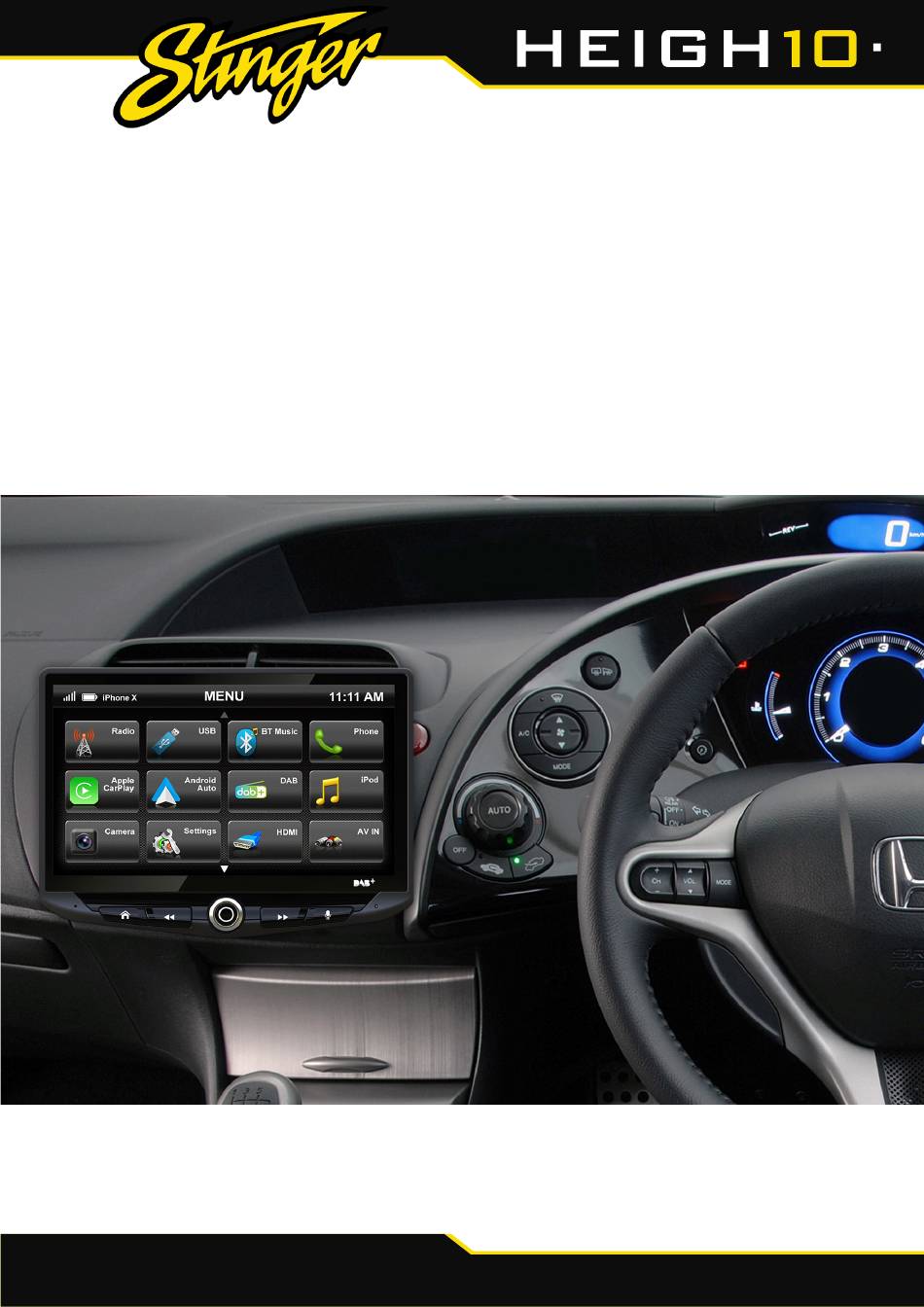

- Page 1 INSTALLATION GUIDE INTEGRATED INFOTAINMENT TOUCH SCREEN SOLUTION FOR HONDA CIVIC 2006 - 2011 PART NUMBER: UN1810E-HD1 Copyright © 2023 StingerElectronics-EU.com...
-
Page 2: About This Product
Please note: Not compatible for amplified models. CONTENTS • HEIGH10® unit with fitting accessories and wiring • Black double DIN fascia plate (with accessories) • Vehicle retention interface with plug-and-play harness • Vehicle specific antenna adapter (AM/FM) • Stinger stereo patch lead • Instruction manual www.stingerelectronics-eu.com... - Page 3 FITTING GUIDE STEREO REMOVAL www.stingerelectronics-eu.com...
- Page 4 FITTING GUIDE STEREO REMOVAL Once the original radio has been removed, you can proceed to the assembly of the Heigh10. Take the HEIGH10® components and begin to assemble the core components in accordance with the “Installation Manual” that comes with unit. HEIGH10 ASSEMBLY www.stingerelectronics-eu.com...
-
Page 5: Interface Setup
FITTING GUIDE FASCIA PLATE SET-UP 1. With the HEIGH10® unit configured correctly, attach the fascia brackets to the relevant sides of the radio module using the screws within the kit. Place into the vehicle and roughly test fit with the fascia to measure whether the brackets need moving forwards/backwards. -
Page 6: Product Information
PRODUCT INFORMATION CTSHO002.2 The CTSHO002.2 is an Analogue steering wheel control interface that allows the installation of an aftermarket single or double stereo into select Honda vehicles. This interface and harness combination allows the retention of select steering wheel controls and climate control features (if applicable). -
Page 7: Prior To Installation
PRIOR TO INSTALLATION Read the manual prior to installation. Technical knowledge is necessary for installation. The place of installation must be free of moisture and away from heat sources. Please ensure that the correct tools are using during the installation to avoid damage to the vehicle or product. Connects2 can not be held responsible for the installation of this product. -
Page 8: Wiring Diagram
WIRING DIAGRAM Flying Wires OEM Specific Connector [17 Pin] Pink - Speed Pulse Connect to power/speaker connector from vehicle Blue- Amp Remote Turn On ISO Connector Connect to new stereo OEM Specific Connector [20 Pin] Connect to relevant connector from vehicle Green Display Connector [10 Pin] Connect to relevant... -
Page 9: Technical Assistance
E-Mail: stinger.eu@aampglobal.com Mon - Fri 9am - 5.30pm GMT If you would like to download a digital copy of this manual, or any other product, then please visit the www.Stinger- Electronics-EU.com website. This manual is considered correct at the time of printing but is subject to change. For the latest manuals & updates, refer to our website.
