Stinger HEIGH10 Installation Manual
Integrated infotainment touch screen solution for ford ranger 2016+
Hide thumbs
Also See for HEIGH10:
- User manual (176 pages) ,
- Installation manual (108 pages) ,
- Installer setup manual (9 pages)
Subscribe to Our Youtube Channel
Related Manuals for Stinger HEIGH10
Summary of Contents for Stinger HEIGH10
- Page 1 INSTALLATION GUIDE INTEGRATED INFOTAINMENT TOUCH SCREEN SOLUTION FOR FORD RANGER 2016+ PART NUMBER: UN1810E-FD1 Copyright © 2023 StingerElectronics-EU.com...

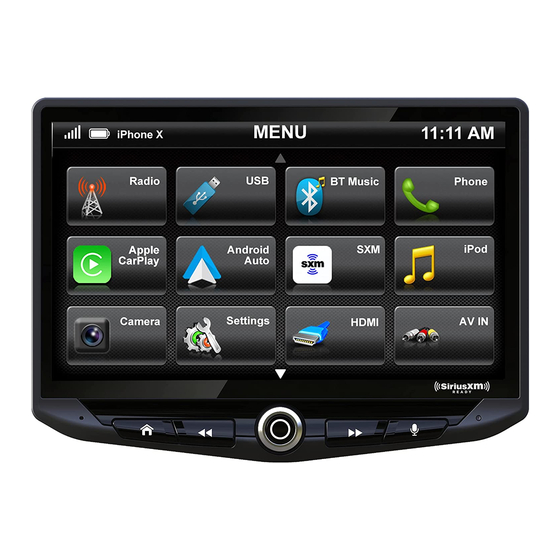

- Page 2 All in one easy to install, plug-and-play package. The HEIGH10® is designed to enhance screen size and infotainment features for drivers which include Apple CarPlay, Android Auto, DAB+, and Bluetooth streaming. Paired with the vehicle retention interface, key vehicle settings will be retained and controlled through the HEIGH10®...
- Page 3 FITTING GUIDE STEREO REMOVAL Step 1 - Using a trim tool, carefully remove the trim shown within the image. The passenger side air- vents are attached to this. The panel itself is held in with a series of clips. Step 2 - Similarly to the passneger side, remove the driv- er side airvent using a trim tool.
- Page 4 Take the HEIGH10® components and begin to assemble the core components in accordance with the “Installation Manual” that comes with unit. HEIGH10 ASSEMBLY...
- Page 5 FASCIA PLATE SET-UP 1. With the HEIGH10® unit configured correctly, attach the fascia brackets to the relevant sides of the radio module using the screws within the kit. Place into the vehicle and roughly test fit with the fascia to measure whether the brackets need moving forwards/backwards.
- Page 6 E-Mail: stinger.eu@aampglobal.com Mon - Fri 9am - 5.30pm GMT If you would like to download a digital copy of this manual, or any other product, then please visit the www.Stinger- Electronics-EU.com website. This manual is considered correct at the time of printing but is subject to change. For the latest manuals & updates, refer to our website.
