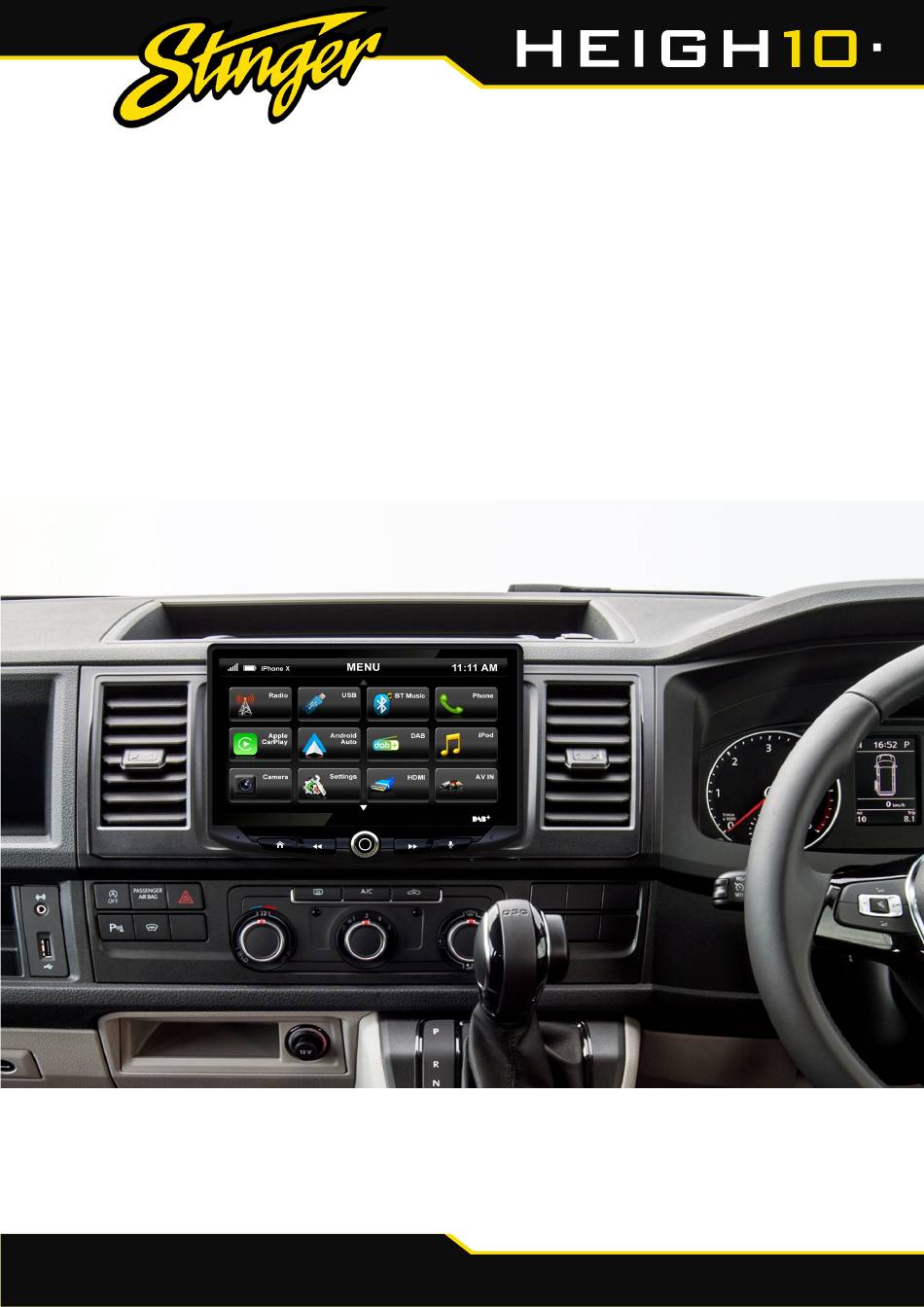

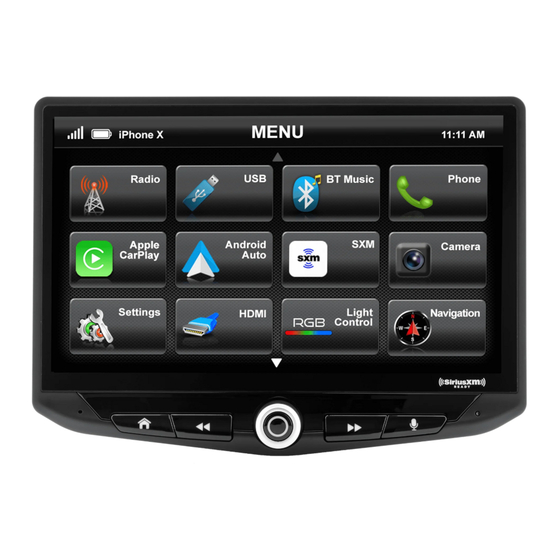

- Page 1 INSTALLATION GUIDE INTEGRATED INFOTAINMENT TOUCH SCREEN SOLUTION FOR VW Transporter T6 (MIB/PQ) 2015-2019 PART NUMBER: UN1810E-VW3 Copyright © 2023 StingerElectronics-EU.com...
-
Page 2: About This Product
Please note: this installation kit is for facelift models, and will not work with amplified vehicles. CONTENTS • HEIGH10® unit with fitting accessories and wiring • Black double DIN fascia plate (with accessories) • Vehicle retention interface with plug-and-play harness • Vehicle specific antenna adapter (AM/FM) • Stinger stereo patch lead • Instruction manual www.stingerelectronics-eu.com... - Page 3 FITTING GUIDE STEREO REMOVAL 1. Using a pry tool carefully remove the trim sur- rounding the radio. This is nesessary in order to reveal the screws securing the original radio. The air vents are attached to the surrounding trim, be cautious not to detach them when removing the trim.
- Page 4 FITTING GUIDE STEREO REMOVAL 4. Once the original radio is removed, the next steps will be to assemble the Heigh10 and con- nect the steering wheel harness. Take the HEIGH10® components and begin to assemble the core components in accordance with the “Installation Manual”...
- Page 5 FITTING GUIDE FASCIA PLATE SET-UP 1. With the HEIGH10® unit configured correctly, attach the fascia brackets to the relevant sides of the radio module using the screws within the kit. Place into the vehicle and roughly test fit with the fascia to measure whether the brackets need moving forwards/backwards.
-
Page 6: Prior To Installation
ABOUT THIS PRODUCT CTSVW015.2 CAN-Bus Steering Wheel Control Interface for Volkswagen vehicles with MIB-PQ system and Quadlock 52 Way connector. NB: If vehicle is fitted with an OEM Bluetooth kit, please disconnect the fuse for the Bluetooth from the fuse board WIRING COLOUR CODES Purple Right Rear Speaker +... - Page 7 FITTING GUIDE 1. Remove and disconnect the original head unit. 2. Connect the 12 way molex connector of the head unit patch lead (supplied separately) to the interface. 3. Connect the opposite end of head unit patch lead to the head unit steering wheel control input on the back of the aftermarket head unit.
- Page 8 FITTING GUIDE 6. Connect the female vehicle specific connectors on the harness to the male vehicle con- nector from the vehicle. Test head unit for correct operation. STEERING WHEEL CONTROL FUNCTIONALITY Original Button Function Volume + Volume + Volume - Volume - Right Arrow Track +...
- Page 9 E-Mail: stinger.eu@aampglobal.com Mon - Fri 9am - 5.30pm GMT If you would like to download a digital copy of this manual, or any other product, then please visit the www.Stinger- Electronics-EU.com website. This manual is considered correct at the time of printing but is subject to change. For the latest manuals & updates, refer to our website.
