DOCUMENT No.:MX*-OMN0013
PRODUCT NAME

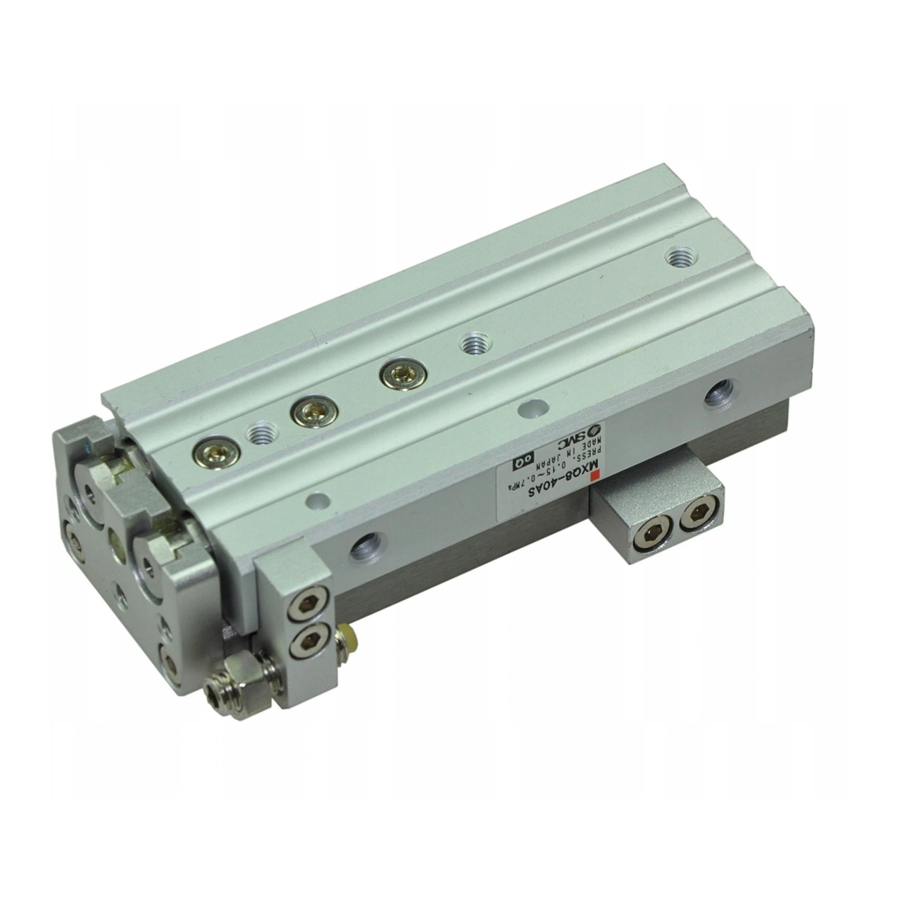

Air slide table / Reversible type
MODEL/ Series
MXQR**(L)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MXQ 6 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SMC Networks MXQ 6

  • Page 1 DOCUMENT No.:MX*-OMN0013 PRODUCT NAME Air slide table / Reversible type MODEL/ Series MXQR**(L)
  • Page 2: Table Of Contents

    Contents Safety Instructions 1. Specifications 1-1 Specifications 1-2 Optional specifications 2. How to use 2-1 Mounting 8~10 2-2 Precautions for mounting the adjuster on the left 2-3 Air supply 2-4 Piping 2-5. Environment 2-6 Lubricating 2-7 Handling of optional adjuster 12,13 2-8 Precautions for mounting optional adjuster 2-9 Mounting of auto switch...
  • Page 3: Safety Instructions

    Safety Instructions These safety instructions are intended to prevent hazardous situations and/or equipment damage. These instructions indicate the level of potential hazard with the labels of “Caution,” “Warning” or “Danger.” They are all important notes for safety and must be followed in addition to International Standards (ISO/IEC), Japan Industrial Standards (JIS)*1) and other safety regulations*2).
  • Page 4 Safety Instructions Caution The product is provided for use in manufacturing industries. The product herein described is basically provided for peaceful use in manufacturing industries. If considering using the product in other industries, consult SMC beforehand and exchange specifications or a contract if necessary.
  • Page 5: Specifications

    1. Specifications 1-1 Specifications (1) Product Model MXQR6 MXQR8 MXQR12 MXQR16 MXQR20 MXQR25 Bore size (mm) Port size M5X0.5 Rc1/8,NPT1/8,G1/8 Fluid Action Double acting Operating pressure *0.15 to 0.7 MPa Proof pressure 1.05 MPa Ambient fluid -10 to 60 °C (No freezing) temperature Operating speed range 50 to 500 mm/s...
  • Page 6 (3) Theoretical force (4) Weight (5) Table accuracy...
  • Page 7: Optional Specifications

    1-2 Optional specifications (1) Adjuster Stroke adjusting range Type Details Stroke adjusting range Extension end (AS) Rubber stopper Retraction end (AT) 0 to 5mm Both ends (A) 0 to 12mm: MXQR6 (only for BS and BT), 0 to Extension end (BS,JS) 20mm: MXQR8 Retraction end (BT,JT) Shock absorber...
  • Page 8: How To Use

    2. How to use For use of actuators, refer to the Precautions in Best Pneumatics No. 3. 2-1 Mounting (1) Mounting of body Three types of installation are available according to the machine or work piece. 1) Horizontal mounting (Tapped hole) Maximum Maximum screw-in Model...
  • Page 9 (2) Mounting of work piece Maximum Maximum screw-in Model Bolt 1) Front mounting tightening torque depth l mm テーブル MXQR 6 M3X0.5 Table テーブル MXQR 8 M4X0.7 MXQR12 M5X0.8 MXQR16 M6X1 MXQR20 M6X1 MXQR25 M8X1.25 18.0 ! ! ! ! Caution In order to prevent the work piece fixing bolt from hitting the table, use a bolt of a length at least 0.5 mm shorter than the maximum screw-in depth.
  • Page 10: Precautions For Mounting The Adjuster On The Left

    An operator’s finger may get caught between the optional adjuster and product. Install a cover as a safety measure if an operator can get close to the slide table during operation. 8) Keep away objects which are affected by magnets. Since the product has built-in magnets, do not allow magnetic disks, magnetic cards or magnetic tapes to come close.
  • Page 11: Piping

    2-4 Piping ! ! ! ! Caution 1) For the handling of one-touch fittings, refer to the Precautions for fittings and tubing in Best Pneumatics No. 6. 2) Before piping Before piping, perform air blow (flushing) or cleaning to remove any cutting chips, cutting oil, dust, etc.
  • Page 12: Lubricating

    2-6 Lubricating ! ! ! ! Warning Lubricating The product has been lubricated for life by the manufacturer, and does not require lubrication in service. If a lubricant is used in the system, use turbine oil Class 1 (with no additive) ISO VG32. Do not use machine oil or spindle oil.
  • Page 13 (2) Shock absorber ! ! ! ! Caution 1) Do not turn the screws at the bottom of the shock absorber body. Do not turn the screws They are not for adjustment. at the bottom. This may lead to oil leakage. Piston rod 2) Do not damage the sliding surface of the piston rod of the shock absorber.
  • Page 14: Precautions For Mounting Optional Adjuster

    2-8 Precautions for mounting optional adjuster (1) Rubber stopper, shock absorber and metal stopper ! ! ! ! Caution In some models, the bolt for mounting the adjuster parts to the body and the bolt for mounting the stopper parts to the table have different lengths. - Rubber stopper: For MXQR6 and 8 with stroke adjuster (AS) for extension end - Shock absorber: For MXQR6, 20 and 25 with shock absorber (BS and JS) for extension end.
  • Page 15: Mounting Of Auto Switch

    2-9 Mounting of auto switch ! ! ! ! Caution 1) Auto switch mounting tool For the tightening of the mounting screws (attached to the auto switch), use a watchmaker’s screwdriver with a handle diameter of about 5 to 6 Auto switch mounting screw (Attached to auto switch) Auto switch...
  • Page 16: Construction/Parts List

    Replacement part: Seal kit* Replacement part: Grease package Bore size Standard type Applied Grease package part (mm) Part no. Content section number MXQ 6-PS GR-S-010 (10g) Guide MXQ 8-PS 1 set of GR-S-020 (20g) MXQ12-PS numbers GR-L-005 (5g) Cylinder above...
  • Page 17: Change Of Adjuster Mounting Position

    4. Change of adjuster mounting position 4-1 Removal of accessories (1) Mount the cap (enclosed with the product) in the position shown in the figure on the Table right to fix the table and guide block. Guide block The position should be at “a” if using one guide block, and “a”...
  • Page 18: Confirmation Of Mounting Of Body And Guide

    4-3 Confirmation of mounting of body and guide Body (1) Remove all dust from the body and guide mounting surfaces shown in the figure on the right. (If dust gets caught, it will reduce the accuracy of the table.) Mounting surface Table Guide block (2) Gently place the body onto the guide and combine them in the position shown below.
  • Page 19: Fixing Of Body And Guide

    4-4 Fixing of body and guide (1) Remove the locking adhesive from the fixing bolts and Body clean them thoroughly. Apply locking adhesive at the end of the screw. For the curing time, refer to the Push catalog of the adhesive used, and take this into consideration when mounting the product on the machine.
  • Page 20: Mounting Accessories

    ! ! ! ! Caution Table 2 Tightening torque (for body) Tighten to the specified torque. Bore size Tightening Thread size Insufficient torque can cause (mm) torque (Nm) M2.5 0.36 accuracy failure and play at the guide. Excessive torque can 0.63 cause deformation of parts, operating failure, and accuracy...
  • Page 21: Completion Of Change

    (3) Fix accessories (parts for adjuster and stopper) by tightening the fixing bolts to the torque specified in Table 2 using a torque wrench or torque driver. Table 2 Tightening torque (for accessories) Mounting part of adjuster (for Mounting part of adjuster (for extension end) and stopper retraction end) Model...
  • Page 22 Revision history 4-14-1, Sotokanda, Chiyoda-ku, Tokyo 101-0021 JAPAN Tel: + 81 3 5207 8249 Fax: +81 3 5298 5362 http://www.smcworld.com Note: Specifications are subject to change without prior notice and any obligation on the part of the manufacturer. © 2009 SMC Corporation All Rights Reserved...
