ITC 450 / ITC 470 SERIES
ITC 450 / ITC 470 SERIES
Tank Level Display + Controller
ITC 450 / ITC 470 SERIES
Industrial Level Controller
Industrial Level Controller
Industrial Level Controller
Wiring Diagrams
24-0352
© Icon Process Controls Ltd.
All connections must be made
while power supply is disconnected.

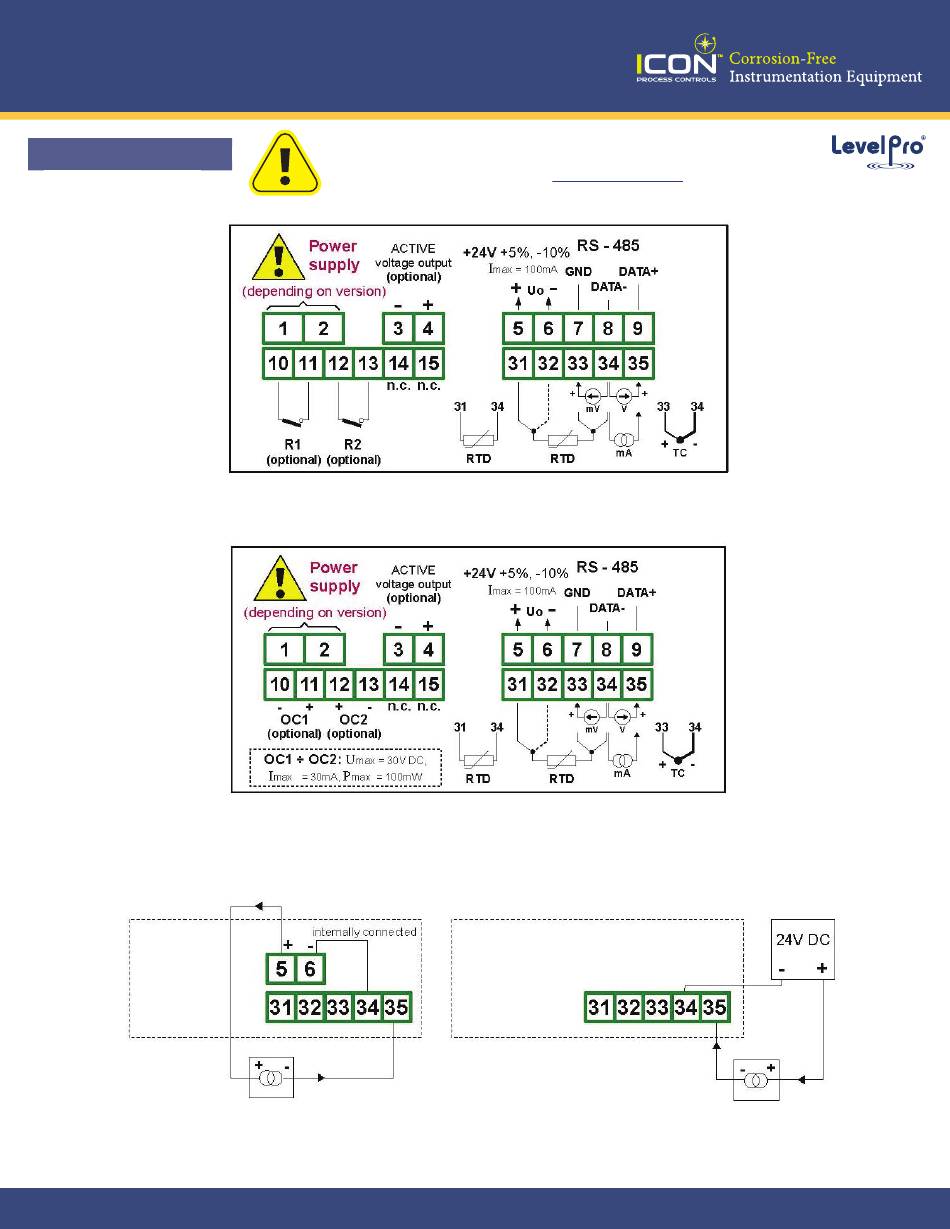

Figure K. — Terminals description (relay and active voltage outputs)
Figure L. — Terminals description (OC-type and active voltage outputs)
Figure M. — Connection of 2-wire current converters
