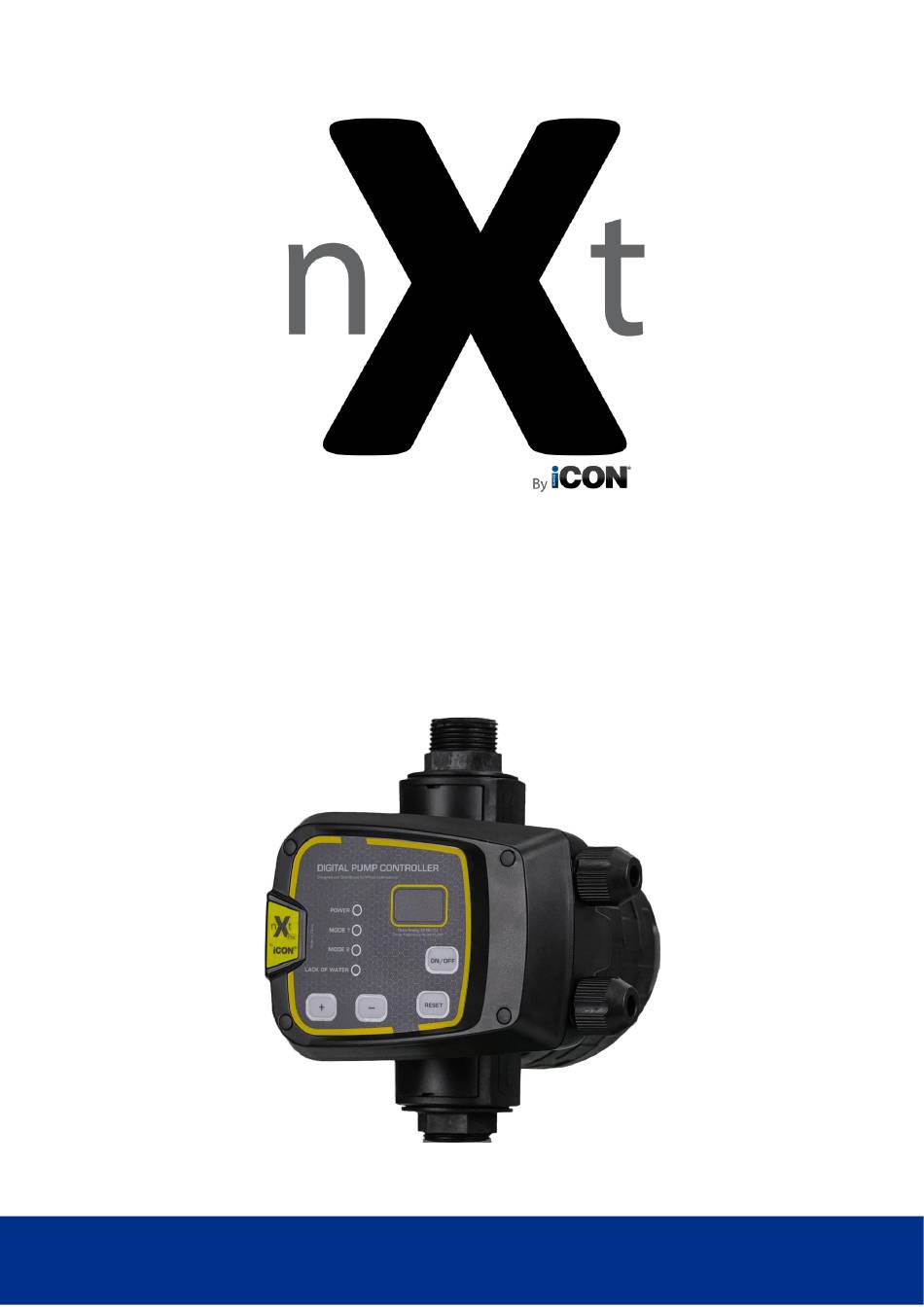

- Page 1 Auto Restart Pump Controller iCON NXT Pro User Manual 808035 / BIA-NXTPRO...
-
Page 2: Introduction
The pump start pressure is able to be set by the user. In Mode 2, the iCON NXT Pro behaves as an electronic pressure switch with dry run protection where, the pump operates when water pressure falls below the starting pressure and stops when the upper setting is achieved. -
Page 3: Table Of Contents
11. Priming the system ....................... 12 12. Standards and Approvals .................... 12 13. Operation ......................... 13 14. nXt Pro and pressure tank fitment ................15 15. Warranties – Terms and Conditions ................. 16 16. Trouble Shooting Guide ....................17 17. Notes ..........................18... -
Page 4: Iso 7010 Symbols Used In This Manual
4. ISO 7010 Symbols used in this manual Warning - Electrical safety Warning – Potential consequences of use outside of intended application(s). Includes environmental condition warnings. Mandatory warning Warning to disconnect power Read carefully Removable accumulator... -
Page 5: Technical Specifications
5. Technical specifications NXT PRO Function On/Off + Configuration Mode 1 Pressure Controller Modes Mode 2 Pressure Switch Pump size Up to 2.2kW - 240V 1Ph 80 - 240V 1ph 50Hz Input power Generator compatible Max Amperage 16 amp Connection Size 1"... -
Page 6: Warnings
6. Warnings Read the manual carefully before starting and retain for future reference. Prior to starting installation or maintenance, the controller must be disconnected from the power supply and pressure relieved from the system including controller, pump and associated pipework. Any changes or modification to the wiring must be carried out by suitably qualified personnel. -
Page 7: Cautions
6.1.3 Remove any shipping plugs from the suction and discharge ports. 6.1.4 There are no serviceable parts in the NXT Pro controller. It should not be dismantled. 6.1.5 No regular maintenance of the NXT Pro controller is required. -
Page 8: Electrical Connections
If the supply cord is damaged, it must be replaced by a special cord or assembly available from White International Pty Ltd or its service agent. The iCON NXT Pro is supplied with a 10 amp rated lead and AS/NZ 3112 (Type 1) 3 pin male power plug for connecting to mains power. -
Page 9: Display
8. Display Name Function Short button press of ON/OFF turns the pump controller on ON/OFF Press and HOLD ON/OFF button for 3 seconds to turn the controller off. Press and Hold ON/OFF for 3 seconds to reset any error messages PX.X = Real time pressure in Bar CX.X = Real time current in amps Symbol moving clockwise = Flow... -
Page 10: Programming
9. Programming Important Note: The controller allows for a maximum of 10 seconds between button presses when programming. If no button press is detected, after 10 seconds the controller will exit the adjustment state... -
Page 11: Installation
10. Installation Review SECTION 6 and 6.1 (Warnings and Cautions) prior to installing Direction of flow is indicated by an arrow on the inlet and outlet. Note that the controller has been designed to work with clean water. Avoid any debris in the pipeline and controller to prevent failure. The controller can be installed in any orientation so long as the direction of flow is respected. -
Page 12: Priming The System
11. Priming the system The iCON NXT Pro is supplied with two 1” BSPT male swivel unions. The controller can be removed from the pump by removing the stainless steel retaining clip. Once the clip is removed the connection fitting will slide from the controller body. -
Page 13: Operation
13. Operation The iCON NXT PRO factory default setting is Mode 1, Cut in pressure of 2.2 bar. No adjustment is required if replacing a standard Auto Restart Pump Controller. LED “Power On” lights up, the When the unit is connected to a power supply the GREEN display illuminates and an orange LED will illuminate to indicate the mode selected. - Page 14 The following applies to both Mode 1 and Mode 2 See Programming sequence: Section 9 If there is no water in the tank or a closed supply/suction pipe issue, the iCon NXT Pro controller will allow the pump to run for 20 seconds with no flow detected before shutting down.
-
Page 15: Nxt Pro And Pressure Tank Fitment
14. NXT Pro and pressure tank fitment The nXt Pro controller behaves as a pressure controller in Mode 1 and as a pressure switch in Mode 2 As supplied, the controller has a 0.3 litre pressure accumulator threaded onto the rear of the unit Removing the OEM tank exposes an internal 1"... -
Page 16: Warranties - Terms And Conditions
15. Warranties – Terms and Conditions This warranty is given in addition to the consumer guarantees found within the Australian Competition and Consumer Act 2010 (Cth) for goods purchased in Australia and the Consumer Guarantees Act 1993 NZ for goods purchased in New Zealand: 1) White International Pty Ltd / White International NZ Ltd (White International) warrant that all products distributed are free from defects in workmanship and materials, for their provided warranty period as indicated on the top or opposite side of this document. -
Page 17: Trouble Shooting Guide
16. Trouble Shooting Guide Causes unrelated to the controller Unit related causes 1. Ensure the controller ON/OFF button is ON. 2. Check the controller isn't in error mode with 1. Voltage Failure RED LED 'LACK OF WATER' illuminated or Is the GREEN LED the display showing -P-, -A-, OL, UL, PF or Pr 'POWER'... -
Page 18: Notes
17. Notes... - Page 19 18. Notes...
- Page 20 www.whiteint.com.au www.whiteint.co.nz Scan QR Code to save view other available documentation Please always refer to our website for further technical information & new product innovations Disclaimer: Every effort has been made to publish the correct information in this manual. No responsibility will be taken for errors, omissions or changes in product specifications. ©...
