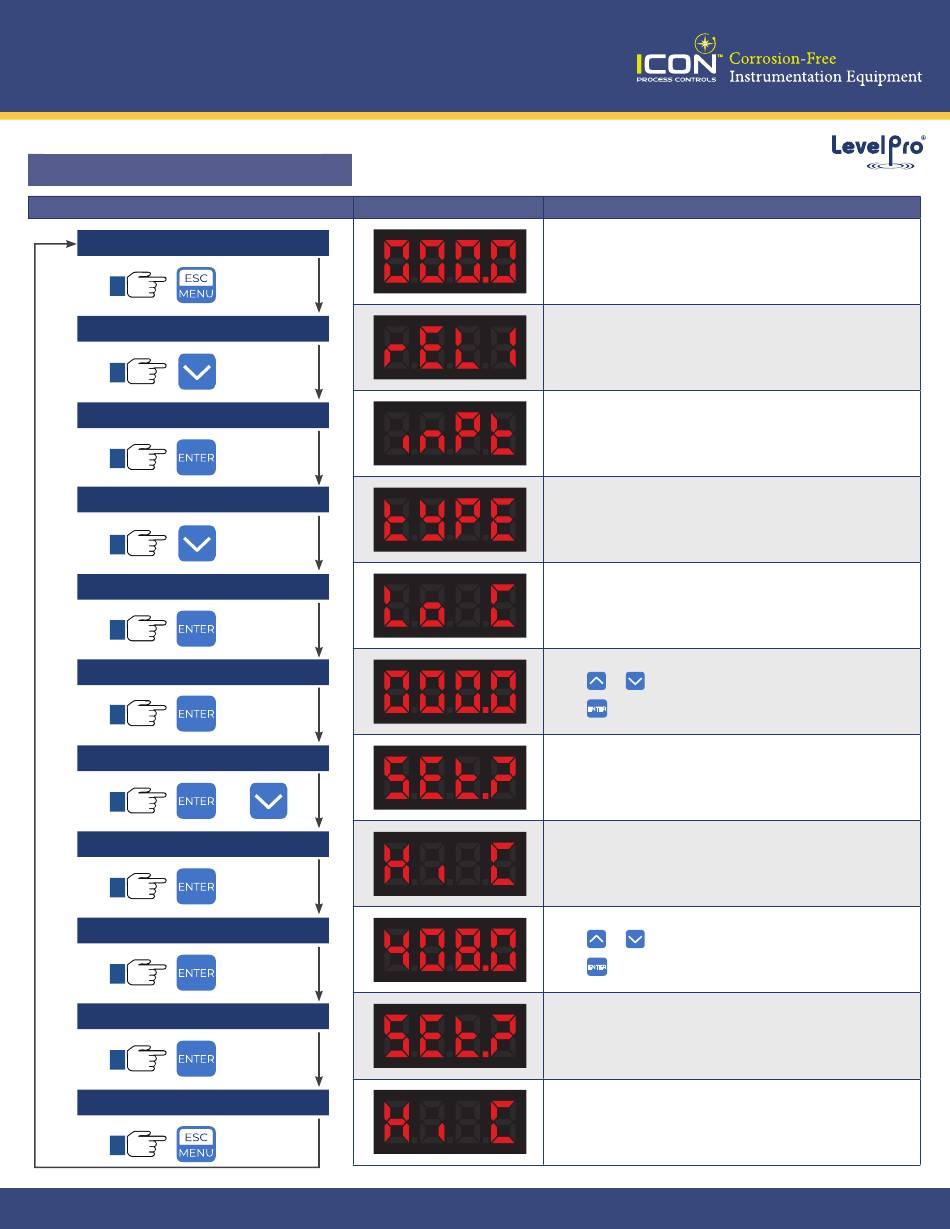

ICON LevelPro ITC 450 Series Quick Start Manual page 11

LevelPro — ITC 450 & 350 Series
®
Tank Level Display + Controller
Programming 4-20mA Input
STEPS
Main Display
1
Relay 1
2
Input
3
Type
4
Low C
5
Set 4mA Value
6
Save Value
7
High C
8
Set 20mA Value
9
Save Value
10
Return to Main Display
11
24-0352 © Icon Process Controls Ltd.
DISPLAY
▶
��
3 Sec.
▶
Note:
5x
2x for
ITC 350
▶
▶
4x
▶
▶
��
2 Sec.
▶
+
▶
▶
��
2 Sec.
▶
▶
2x
OPERATION
MAIN DISPLAY
RELAY 1 Settings
INPUT Menu
INPUT Type
Enter LOW C | 4mA | Std = 0
Press or to change digit
Press to advance to next digit
SAVE SELECTION and advance to High C
Enter HIGH C | 20mA
Press or to change digit
Press to advance to next digit
SAVE SELECTION
Return to MAIN DISPLAY
