ICON LevelPro ITC 450 Series Quick Start Manual page 13

LevelPro — ITC 450 & 350 Series
®
Tank Level Display + Controller
Calculating 4-20mA Input
Sensor Type 20mA Set Point
Submersible Range of sensor / Specific Gravity = 20mA (for inches)
Ultrasonic Tank Height
Radar Tank Height

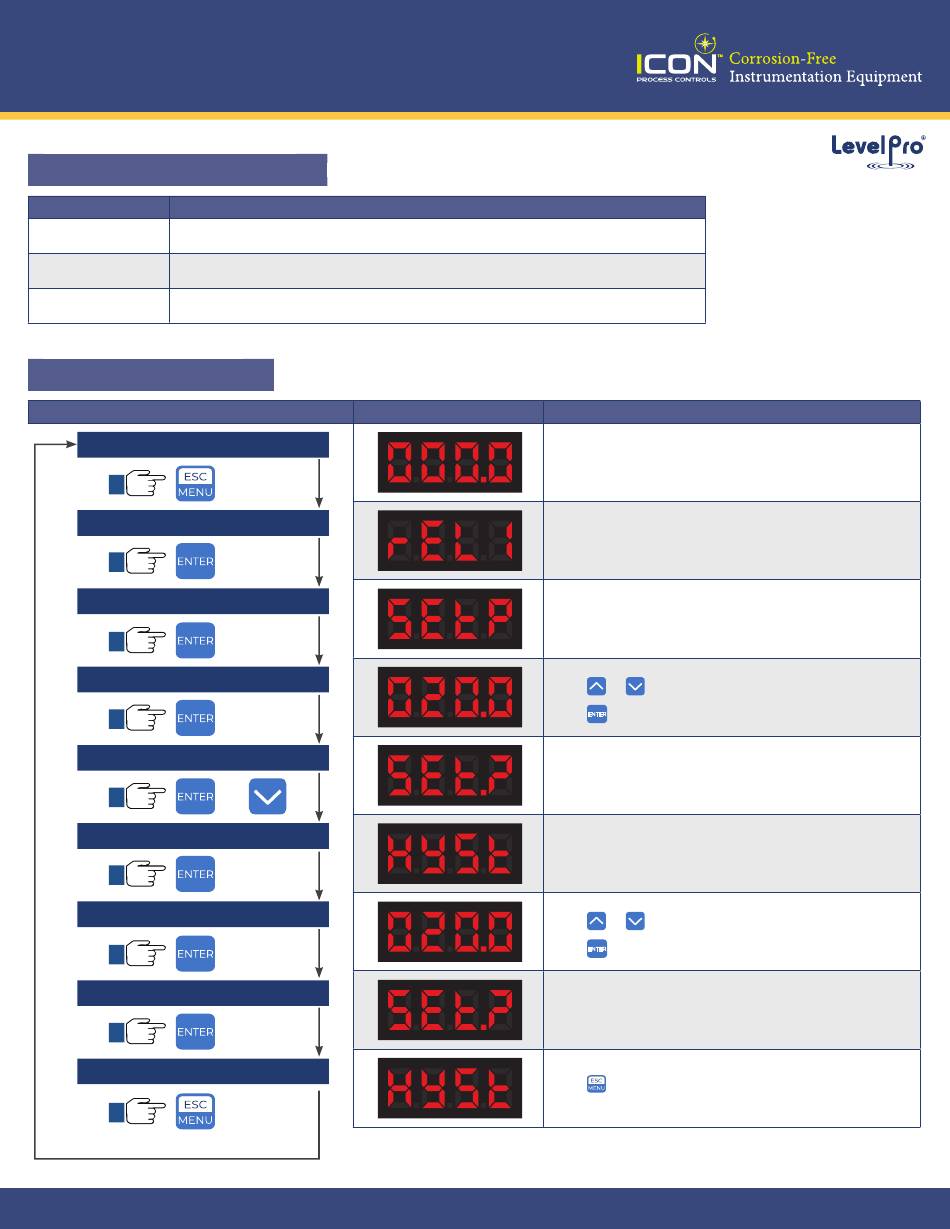

Programming Relays
STEPS
Main Display
1
Relay 1
2
Output
3
Set Relay Value
4
Save Value
5
Set Hysterisis
6
Save Value
7
Return to Main Display
8
Return to Main Display
8
Save Value
10
24-0352 © Icon Process Controls Ltd.
DISPLAY
▶
��
3 Sec.
▶
▶
▶
��
2 Sec.
▶
+
▶
▶
��
2 Sec.
▶
▶
2x
▶
OPERATION
MAIN DISPLAY
RELAY 1 Settings
OUTPUT MENU
Press or to change digit
Press to advance to next digit
Save Selection and advance to Hysterisis
Hysterisis Settings
Press or to change digit
Press to advance to next digit
Save Selection
Press Button (2x)
(Home Screen | Current Level Reading appears on display)
