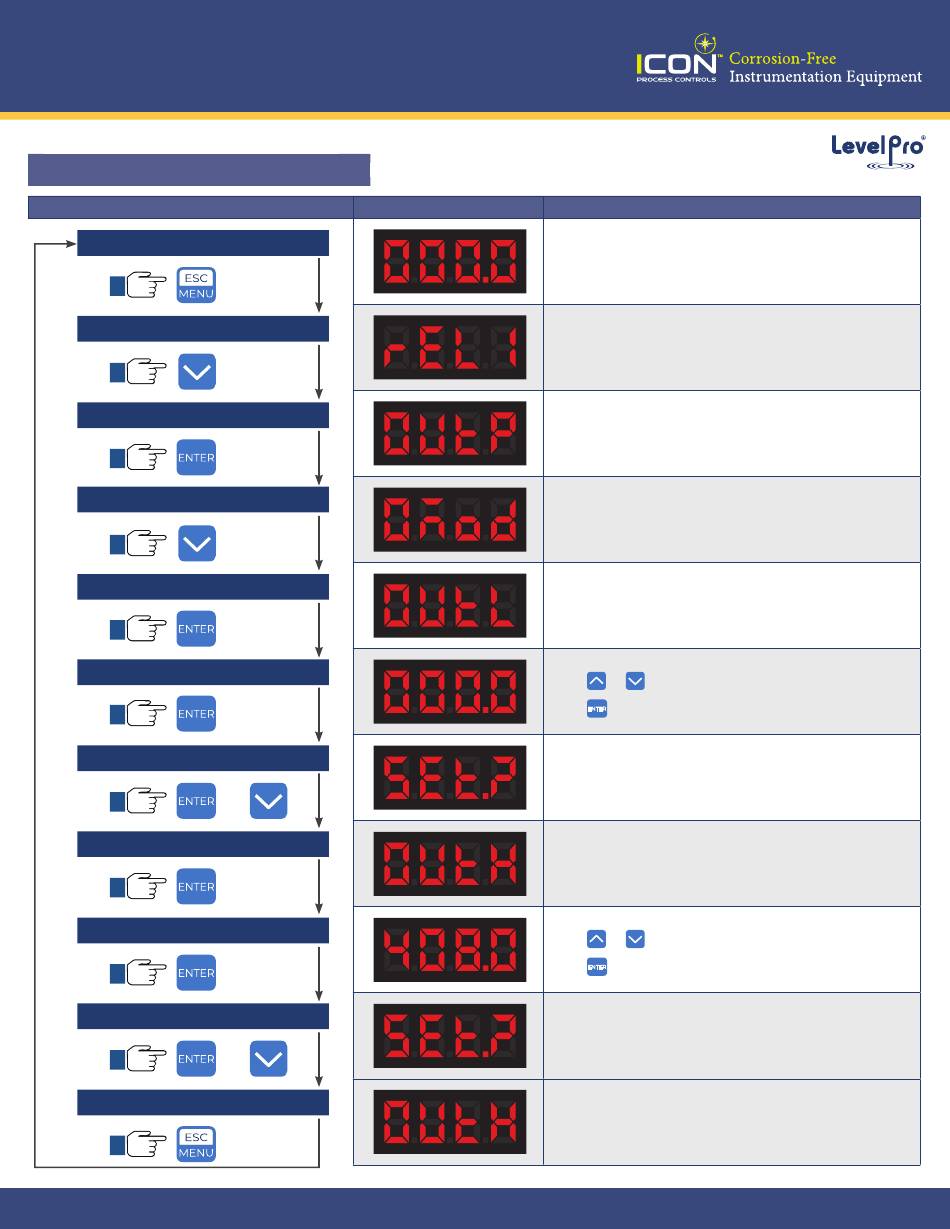

LevelPro — ITC 450 & 350 Series
®
Tank Level Display + Controller
Programming 4-20mA Output
STEPS
Main Display
1
Relay 1
2
Output
3
Output Mode
4
Output Low
5
Set 4mA Value
6
Save Value
7
Output High
8
Set 20mA Value
9
Save Value
10
Return to Main Display
11
24-0352 © Icon Process Controls Ltd.
DISPLAY
▶
��
3 Sec.
▶
Note:
6x
3x for
ITC 350
▶
▶
▶
▶
��
2 Sec.
▶
+
▶
▶
��
2 Sec.
▶
+
▶
2x
OPERATION
MAIN DISPLAY
RELAY 1 Settings
OUTPUT MENU
OUTPUT MODE
Enter OUTPUT LOW | 4mA | Std = 0
Press or to change digit
Press to advance to next digit
Save Selection and advance to Output High
Enter OUTPUT High | 20mA
Press or to change digit
Press to advance to next digit
SAVE SELECTION
Return to MAIN DISPLAY
