LevelPro — ITC 450 & 350 Series
®
Tank Level Display + Controller
Device Installation
1. The unit is designed for mounting inside housings (control panel, switchboard) insuring appropriate protection
against surges and interference. Metal housings must be connected to ground in a way that complies with the
governing regulations.
2. Disconnect the power supply prior to starting assembly.
3. Check the connections are wired correctly prior to switching the unit on.

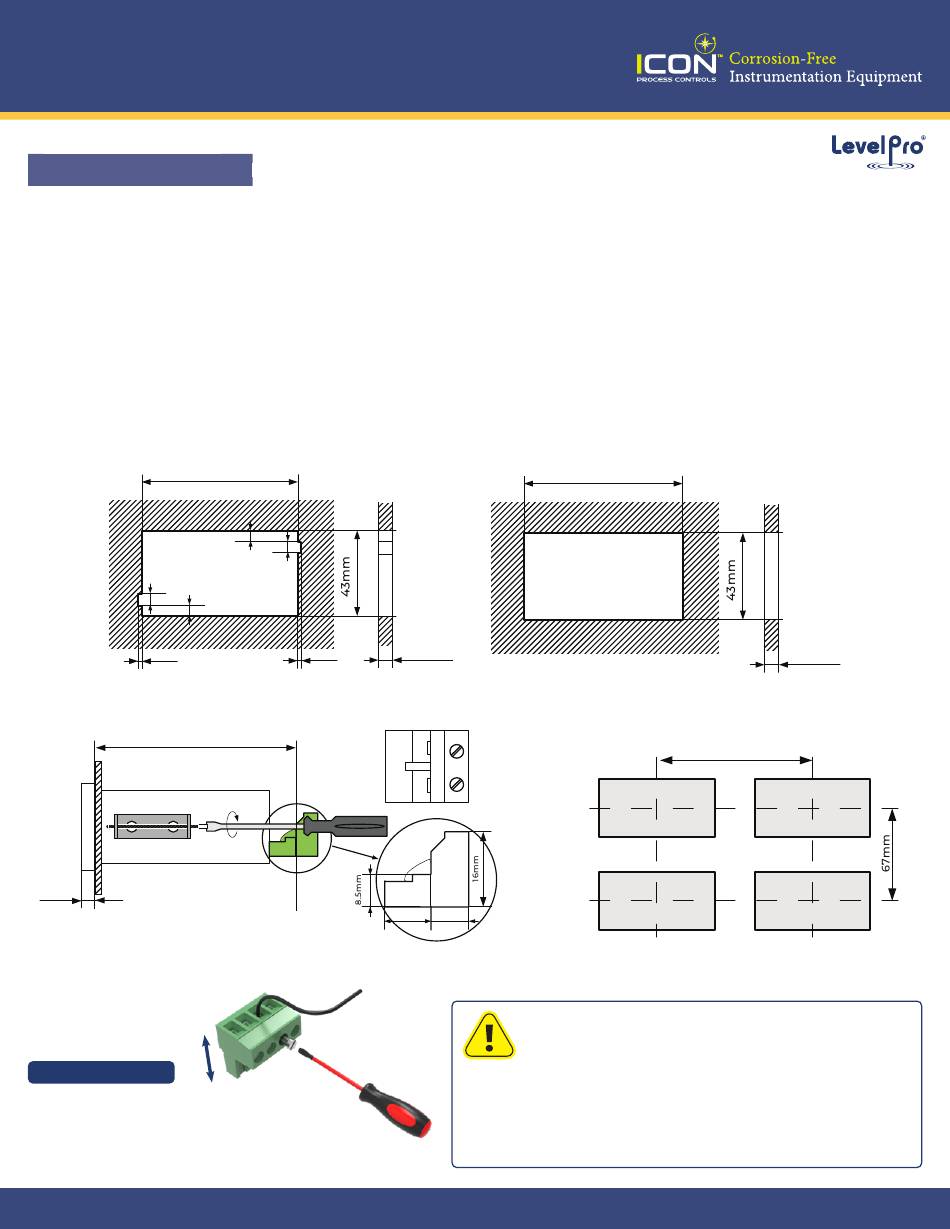

In order to install the unit, a 90.5 x 43 mm mounting hole (Figure A, B) must be prepared. The thickness of the ma-
terial of which the panel is made must not exceed 5mm. When preparing the mounting hole take the grooves for
catches located on both sides of the housing into consideration (Figure A, B). Place the unit in the mounting hole
inserting it from the front side of the panel, and then fix it using the brackets (Figure C). The minimum distances
between the centre points of multiple units - due to the thermal and mechanical conditions of operation - are
115 mm x 67mm (Figure D).
8mm
1mm
Figure A. — Recommended mounting hole dimensions
92mm
5mm
Figure C. Installing of brackets, and dimensions of connectors
WIRE INSTALLATION
• Carefully remove wire terminal from socket
• Loosen set screw
• Insert wire
• Tighten set screw
• Replace wire terminal into socket
Figure D. Minimum distances when assembly of a number of units
24-0352 © Icon Process Controls Ltd.
90.5 mm
13mm
8mm
13mm
1mm
115mm
5mm
max. 5mm
Figure B. — Allowable mounting hole dimensions
Figure C. Installing of brackets, and dimensions of connectors
12mm 10mm
Figure D. Minimum distances when assembly of a number of units
Due to possible significant interference in industrial installations,
appropriate measures assuring correct operation of the unit must
be applied.
The unit is not equipped with an internal fuse or power supply circuit breaker.
For this reason, an external time-delay cut-out fuse with a small nominal
current value must be used (recommended bipolar, max. 2A) and a power
supply circuitbreaker located near the unit.
In the case of using a monopolar fuse it must be mounted on the phase cable.
92mm
92mm
115mm
max. 5mm
12mm 10mm
