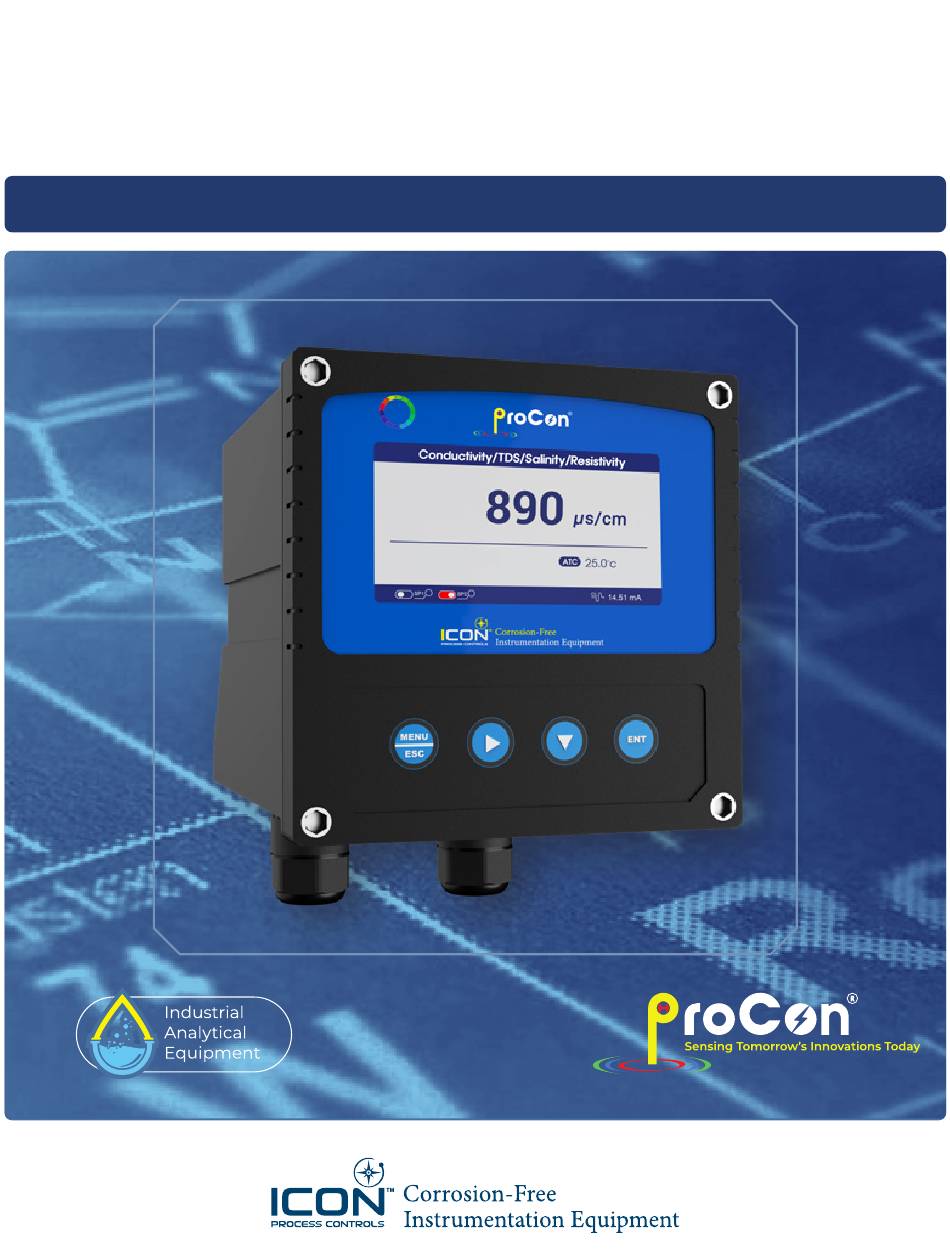

- Page 1 C400 Series Controller Conductivity Resistivity Salinity Operating Manual...
-
Page 2: Table Of Contents
◀ ◀ C400 Series Operating Manual Contents Preface .................................................3 Features ................................................3 Technical Specifications ........................................4 Typical Application ..........................................4 Instrument Connection ........................................5 Dimension ..............................................5 Instrument Installation .........................................6 Display Descriptions ..........................................7 Keypad Descriptions ..........................................7 Menu Structure ............................................8 Calibration ..............................................10 Field Calibration ............................................11 Measurement Settings (Quick Start) .................................. -
Page 3: Preface
◀ ◀ C400 Series Operating Manual Preface Please read this manual carefully before use. When receiving the instrument, please open the package carefully, check whether the instrument and accessories are damaged by trans- portation and whether the accessories are complete. If any abnormalities are found, please contact our after-sales service department or regional customer service center, and keep the package for return processing. -
Page 4: Technical Specifications
◀ ◀ C400 Series Operating Manual Technical Specifications Measuring Range 0 – 500µS/cm Resolution 0.1µS/cm 0.01mS/cm Intrinsic Error ±0.5% F.S Resistivity 0 – 18.25MΩ/cm Resolution 0.01KΩ/cm 0.01MΩ/cm 0 – 250g/L Resolution 0.01mg/L 0.01g/L Salinity 0 – 700ppt Resolution 0.01ppm 0.01ppt Working Temperature 32 –... -
Page 5: Instrument Connection
◀ ◀ C400 Series Operating Manual Instrument Connection CELL 1 NO 1 CELL 2 COM 1 CELL 3 NC 1 CELL 4 NO 2 Temp COM 2 Temp NC 2 COND Tip: If the user needs to lengthen or shorten the cable, please remove the black Pow DC+ Pow ACL conductive skin outside the transparent... -
Page 6: Instrument Installation
◀ ◀ C400 Series Operating Manual Instrument Installation Control Panel Installation Installation of back cover with waterproofing seal 93 mm (± 0.5 mm) Wall Mounting 53 mm Fixture Dimension Install bracket on the wall first Insert into the fixture along the chute... -
Page 7: Display Descriptions
◀ ◀ C400 Series Operating Manual Display Descriptions Instrument type Check all electrical connections before use. Conductivity / TDS / Salinity / Resistivity The instrument will display as shown in the figure below after the power is turned on. 83.01 Sensor Communication Warning Main measurment + Unit... -
Page 8: Menu Structure
◀ ◀ C400 Series Operating Manual Menu Structure Press [MENU] key to enter programming mode: If the monitor prompts you to enter the calibration security password, press the key to set the calibration security password, and then press the [ENT] key to confirm the calibration security password. No initial password here, please enter directly by pressing the [ENT] key. - Page 9 ◀ ◀ C400 Series Operating Manual Item Display Selection Sub Menu Status High Alarm Relay 1 High/Low Setpoint Low Alarm Clean Limit Value 00.00 (Default, can be modified) Hysteresis 00.000 (Default, can be modified) Alarm Status High Alarm Relay 2 High/Low Setpoint Low Alarm Clean...
-
Page 10: Calibration
◀ ◀ C400 Series Operating Manual Item Display Selection Sub Menu Current 1: 4mA (The positive and negative ends of the multi-meter are connected to the current Current 1: 20mA Terminal Current 1 or current 2 output terminals of the Tuning instrument key respectively, press Current 2: 4mA... -
Page 11: Field Calibration
◀ ◀ C400 Series Operating Manual Calibration point 1: After entering the calibration mode, the current measurement value will be displayed. This is known as the standard solution value. Place the electrode into the standard solution of the corresponding value, and the corresponding voltage mV value and calibration state will be displayed on the screen. -
Page 12: Measurement Settings (Quick Start)
◀ ◀ C400 Series Operating Manual Measurement Settings (Quick Start) Press MENU key MENU Configure Sensor Type Select MENU [Item] Select [Configure] Select [Sensor] Select [Type] Press Press Press Press Press Press ENT key ESC key Salinity for Save for Back Press ENT key Press... -
Page 13: Temperature Calibration
◀ ◀ C400 Series Operating Manual Temperature Calibration Press MENU key MENU Configure Sensor Temp Sensor NTC2.252 Select MENU [Item] Select [Configure] Select [Temperature] NTC 10K Press Press Temperature Press Press Press ENT key ESC key PT100 for Save for Back Select [Temperature] Press ENT key... -
Page 14: Point Calibration
◀ ◀ C400 Series Operating Manual Point Calibration Press MENU key MENU Configure Std Cal Point 1 0000 Calibrating MENU Press Select [Std Cal] Select [Point 1] Enter Value Calibration ESC key Press Press for Back Select [Calibration] Select Value Press Press ENT key... -
Page 15: Field Calibration
◀ ◀ C400 Series Operating Manual Field Calibration Press MENU key MENU 0000 Configure Std Cal Field Cal Calibrating MENU Press Select [Field Cal] Enter Value Calibration ESC key Field Cal Press for Back Select [Calibration] Select Value Select [Temperature] Press Press ENT key... -
Page 16: Relays
◀ ◀ C400 Series Operating Manual Relays Press MENU key MENU Configure Relay 1 Status Select MENU [Item] Select [Status] Calibration Press Press Relay 2 Press Press ENT key ESC key Set points for Save for Back Select [Relay] Press ENT key Press Select [Set Points]... -
Page 17: 4-20Ma Ouput
◀ ◀ C400 Series Operating Manual 4-20mA Ouput Press MENU key MENU Configure Current 1 Output Opt 4-20mA Select MENU [Item] Select [Output Opt] Calibration 0-20mA Press Press Current 2 Press Press ENT key ESC key Set points 20-4mA for Save for Back Select [Current] Press... -
Page 18: Rs485 Modbus
◀ ◀ C400 Series Operating Manual RS485 Modbus Press MENU key MENU Configure Current 1 Baud Rate 4800 BPS Select MENU [Item] Select [Baud Rate] Current 2 Calibration 9600 BPS Press Press Press Press ENT key ESC key RS485 Set points 19200 BPS for Save for Back... -
Page 19: System Setup
◀ ◀ C400 Series Operating Manual System Setup Press MENU key MENU Configure Language English MENU Select [Language] Calibration Press Press Press ENT key ESC key Set points Press ENT key for Save for Back Output Date/Time YY/MM/DD 22:10:22 History MENU Select [Date/Time] System... -
Page 20: Modbus Rtu General Information
◀ ◀ C400 Series Operating Manual MODBUS RTU General Information Overview The hardware version number of this document is V2.0; the software version number is V5.9 and above. This document describes the MODBUS RTU interface in details and the target object is a software programmer. MODBUS Command Structure Data format description in this document;... -
Page 21: Modbus Rtu Transmission Mode
◀ ◀ C400 Series Operating Manual MODBUS RTU Transmission Mode When the instrument uses RTU (Remote Terminal Unit) mode for MODBUS serial communication, each 8-bit byte of information contains two 4-bit hexadecimal characters. The main advantages of this mode are greater character density and better data throughput than the ASCII mode with the same baud rate. -
Page 22: Modbus Rtu Crc Check
◀ ◀ C400 Series Operating Manual MODBUS RTU CRC Check The RTU mode contains an error-detection domain based on a cyclic redundancy check (CRC) algorithm that performs on all message contents. The CRC domain checks the contents of the entire message and performs this check regardless of whether the message has a random parity check. - Page 23 ◀ ◀ C400 Series Operating Manual The following illustrates the request frame and response frame with the read and hold register 108-110 as an example. (The contents of register 108 are read-only, with two-byte values of 0X022B, and the contents of register 109-110 are 0X0000 and 0X0064) Request Frame Response Frame Number Systems...
-
Page 24: Data Format
◀ ◀ C400 Series Operating Manual The request frame and response frame are illustrated below in two registers that write the values 0x000A and 0x0102 to the start address of 2. Request Frame (hexidecimal) Response Frame (hexidecimal) Number Systems 0x10 Function code 0x10 Function code... - Page 25 ◀ ◀ C400 Series Operating Manual Reference code: 1. If the compiler used by the user has a library function that implements this function, the library function can be called directly, for example, using C language, then you can directly call the C library function memcpy to obtain an integer representation of the floating- point storage format in memory.
-
Page 26: Read Instruction Mode
◀ ◀ C400 Series Operating Manual Read Instruction Mode The communication protocol adopts MODBUS (RTU) protocol. The content and address of the communication can be changed according to the needs of customers. The default configuration is network address 01, baud rate 9600, even check, one stop bit, users can set their own changes;... -
Page 27: Troubleshooting
Warranty Icon Process Controls warrants this product to be free from significant deviations in material and workmanship for a period of one year from the date of purchase. If repair is necessary and has not been the result of abuse or misuse within the warranty period, please return to Icon Process Controls and amendment will be made without any charge. - Page 28 ◀ ◀ Need a great sensor? Pair your D400 Series controller with the industry’s most innovative and reliable sensing technology icon procon.com 23-0032 01/27/23...
