MoBL-USB™ TX2 Features
UTMI-compliant and USB 2.0 certified for device operation
■
Operates in both USB 2.0 High Speed (HS), 480 Mbits/second,
■
and Full Speed (FS), 12 Mbits/second
Optimized for Seamless Interface with Intel
■
cations Processors
Tri-state Mode enables sharing of UTMI Bus with other devices
■
Serial-to-Parallel and Parallel-to-Serial Conversions
■
8-bit Unidirectional, 8-bit Bidirectional, or 16-bit Bidirectional
■
External Data Interface
Synchronous Field and EOP Detection on Receive Packets
■
Synchronous Field and EOP Generation on Transmit Packets
■
Data and Clock Recovery from the USB Serial Stream
■
Bit stuffing and unstuffing; Bit Stuff Error Detection
■
Staging Register to manage Data Rate variation due to Bit
■
stuffing and unstuffing
16-bit 30 MHz and 8-bit 60 MHz Parallel Interface
■
Ability to switch between FS and HS terminations and signaling
■
Supports detection of USB Reset, Suspend, and Resume
■
Supports HS identification and detection as defined by the USB
■
2.0 Specification

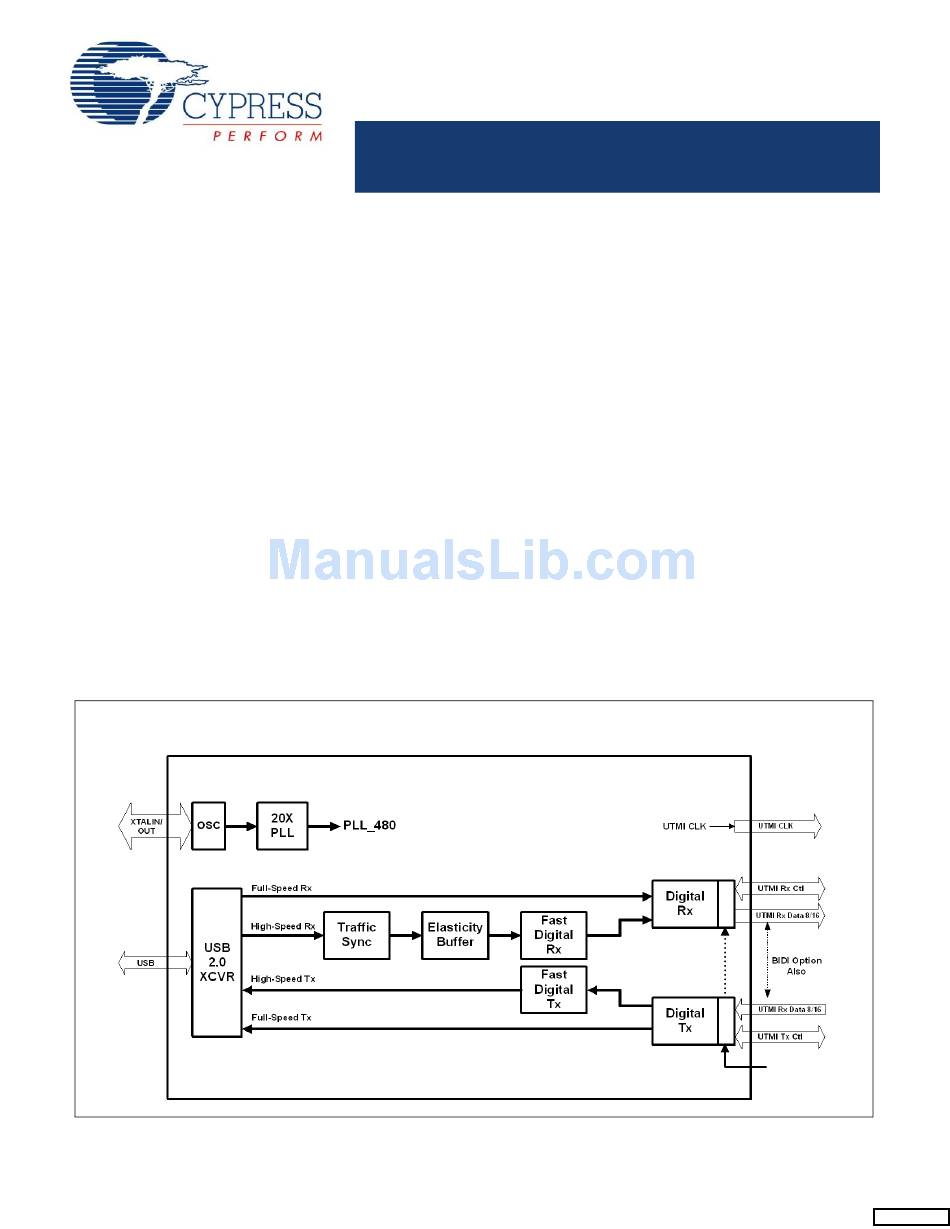

Logic Block Diagram
Cypress Semiconductor Corporation
Document #: 38-08052 Rev. *G
MoBL-USB™ TX2 USB 2.0 UTMI
Supports transmission of Resume Signaling
■
3.3V Operation
■
Two package options: 56-pin QFN and 56-pin VFBGA
■
All required terminations, including 1.5 Kohm pull up on
■
DPLUS, are internal to chip
®
Monahans Appli-
Supports USB 2.0 Test Modes
■
The Cypress MoBL-USB TX2 is a Universal Serial Bus (USB)
specification revision 2.0 transceiver, serial and deserializer, to a
parallel interface of either 16 bits at 30 MHz or eight bits at 60
MHz. The MoBL-USB TX2 provides a high speed physical layer
interface that operates at the maximum allowable USB 2.0
bandwidth. This enables the system designer to keep the
complex high speed analog USB components external to the
digital ASIC. This decreases development time and associated
risk. A standard USB 2.0-certified interface is provided and is
compliant with Transceiver Macrocell Interface (UTMI) specifi-
cation version 1.05 dated 3/29/2001.
This product is also optimized to seamlessly interface with
Monahans -P & -L applications processors. It has been charac-
terized by Intel and is recommended as the USB 2.0 UTMI trans-
ceiver of choice for its Monahans processors. It is also capable
of tri-stating the UTMI bus, while suspended, to enable the bus
to be shared with other devices.
Two packages are defined for the family: 56-pin QFN and 56-pin
VFBGA.
The functional block diagram follows.
•
198 Champion Court
,
•
San Jose
CA 95134-1709
CY7C68000A
Transceiver
Tri_state
•
408-943-2600
Revised October 5, 2008
