Cypress Semiconductor EZ-Host CY7C67300 Specification Sheet

Programmable embedded usb host and peripheral controller with automotive aec grade support
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
EZ-Host Features
■
Single chip programmable USB dual-role (Host/Peripheral)
controller with two configurable Serial Interface Engines (SIEs)
and four USB ports
■
Support for USB On-The-Go (OTG) protocol
■
On-chip 48 MHz 16-bit processor with dynamically switchable
clock speed
■
Configurable IO block supporting a variety of IO options or up
to 32 bits of General Purpose IO (GPIO)
■
4K x 16 internal masked ROM containing built in BIOS that
supports a communication ready state with access to I
EEPROM Interface, external ROM, UART, or USB
■
8K x 16 internal RAM for code and data buffering
■
Extended memory interface port for external SRAM and ROM
■
16-bit parallel Host Port Interface (HPI) with a DMA/mailbox
data path for an external processor to directly access all of the
on-chip memory and control on-chip SIEs
■
Fast serial port supports from 9600 baud to 2.0M baud
■
SPI support in both master and slave

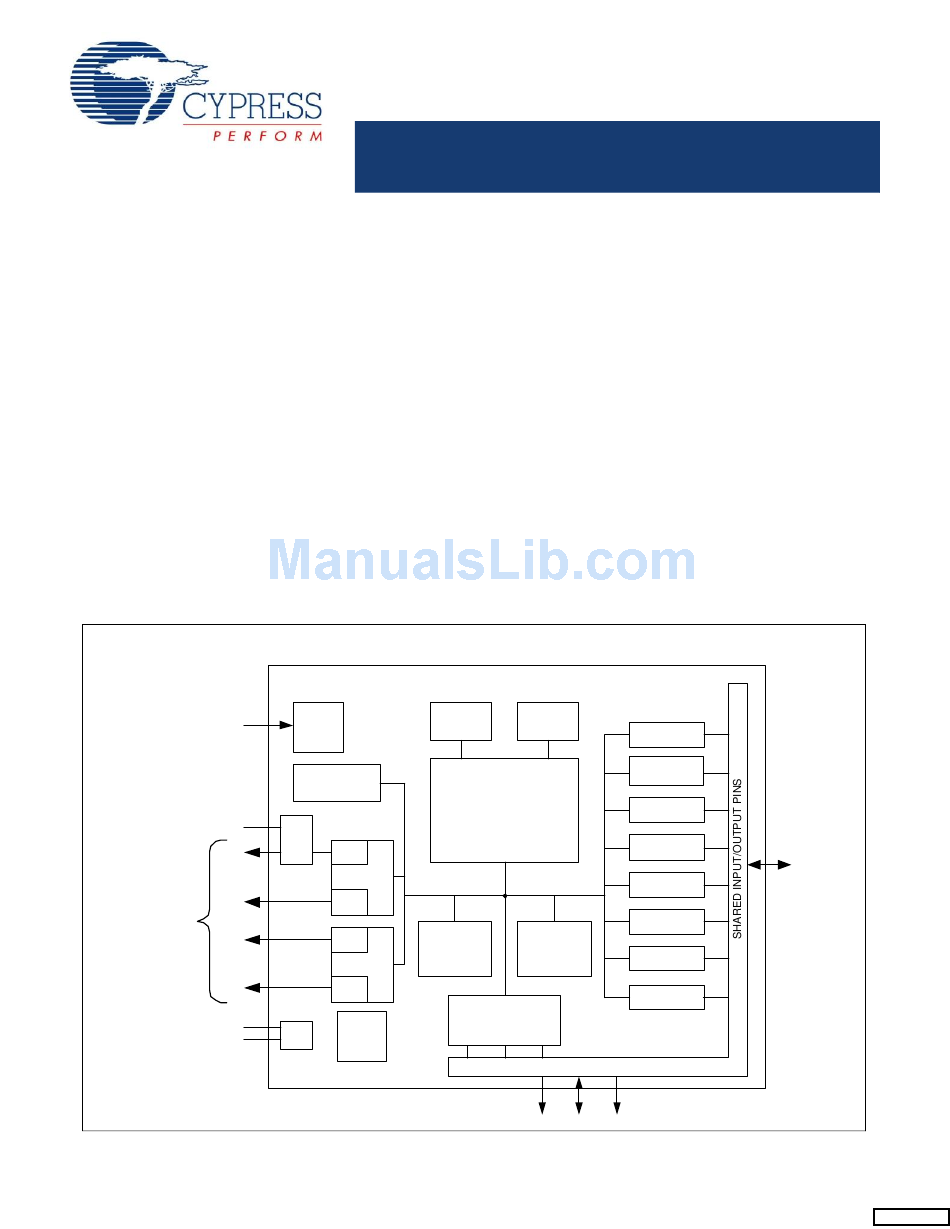

CY7C67300 Block Diagram
nRESET
Vbus, ID
D+,D-
D+,D-
Host/
Peripheral
USB Ports
D+,D-
D+,D-
X1
X2
Cypress Semiconductor Corporation
Document #: 38-08015 Rev. *J
EZ-Host™ Programmable Embedded USB Host and
Peripheral Controller with Automotive AEC Grade Support
2
C™
CY7C67300
Timer 0
Control
Watchdog
16-bit RISC CORE
OTG
USB-A
SIE1
USB-B
USB-A
4Kx16
ROM BIOS
SIE2
USB-B
External MEM I/F
Mobile
PLL
Power
Booster
•
198 Champion Court
■
On-chip 16-bit DMA/mailbox data path interface
■
Supports 12 MHz external crystal or clock
■
3.3V operation
■
Automotive AEC grade option (–40°C to 85°C)
■
Package option—100-pin TQFP

Typical Applications

EZ-Host is a very powerful and flexible dual role USB controller
that supports a wide variety of applications. It is primarily
intended to enable host capability in applications such as:
■
Set top boxes
■
Printers
■
KVM switches
■
Kiosks
■
Automotive applications
■
Wireless access points
Timer 1
UART I/F
EEPROM I/F
CY16
HSS I/F
SPI I/F
IDE I/F
8Kx16
RAM
HPI I/F
(SRAM/ROM)
SHARED INPUT/OUTPUT PINS
A[15:0] D[15:0] CTRL[9:0]
,
•
San Jose
CA 95134-1709
CY7C67300
I2C
PWM
GPIO [31:0]
GPIO
•
408-943-2600
Revised July 28, 2008
[+] Feedback
