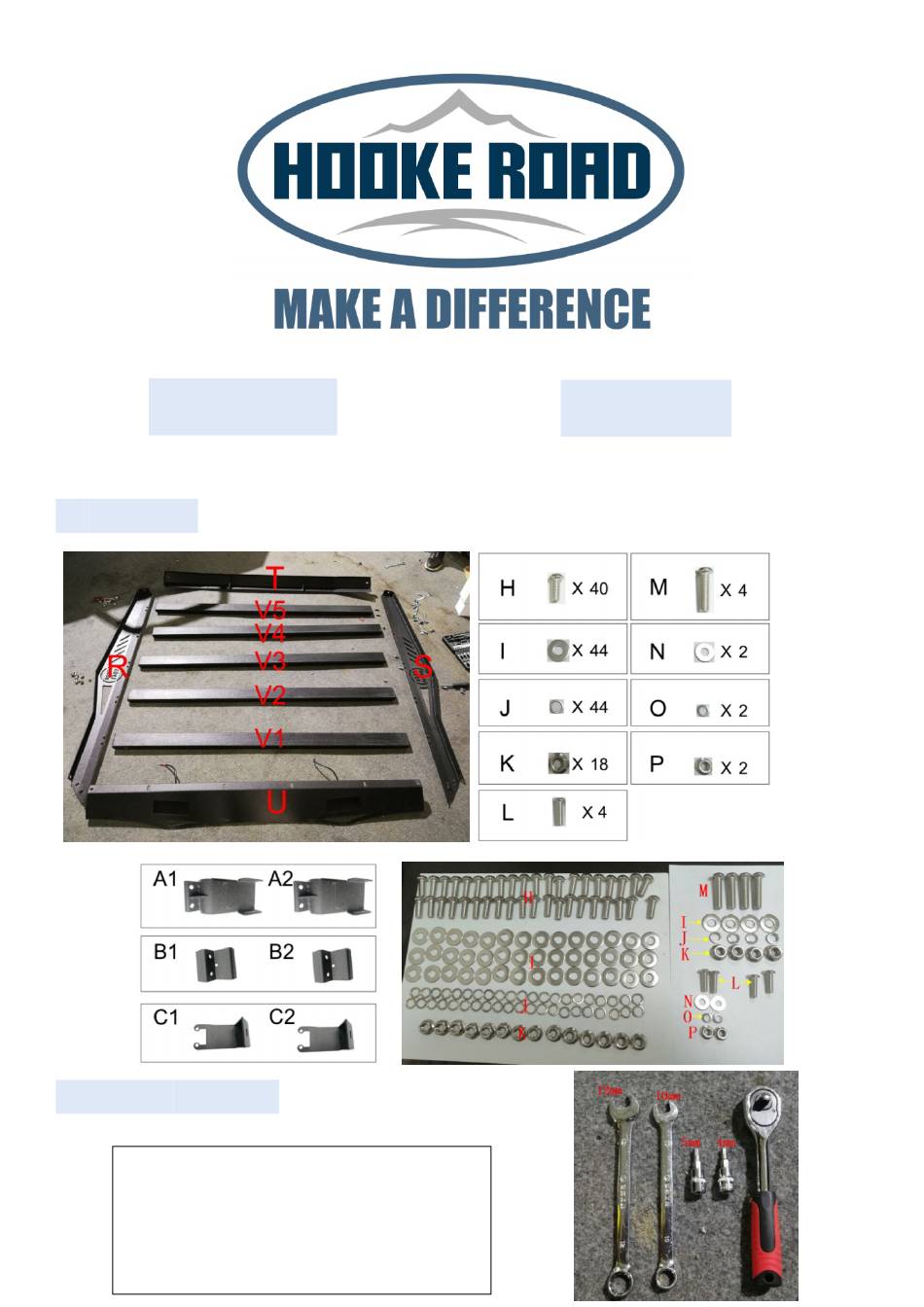

- Page 1 Roof Rack BXG.2041 (1) Contents: (2) Tools required: A.10mm & 12mm Wrench; B.4mm & 5mm Socket Wrench;...
- Page 2 About 1.5 hours, 2-3 people may be needed. Installation time may differ according to your mechanical skill level. (PLEASE VERIFY ALL PARTS ARE PRESENT AND READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION!) To view the electronic version (BXG.2041), please scan the QR code.
- Page 3 (4) Installation instruction: Step 1: Install the PART”S” & PART”V” with PART”H”, PART”I”, PART”J”, PART”K”. (V1=V2=V3=V4=V5). As shown below.
- Page 4 Step 2: Install the PART”S” & PART”T” & PART”U” with PART”H”, PART”I”, PART”J”,PART”K”. And the bottom one will need PART”L”, PART”N”, PART”O”,PART”P”. As shown below. (1) Install the PART”S” & PART”T”.
- Page 5 (2) Install the PART”S” & PART”U”.
- Page 6 Step 3: Repeat above steps for another side.
- Page 7 Step 4: Install the roof rack. First ,put it on the top of vehicle.
- Page 8 Step 5: Install the PART”C” on the vehicle with the original bolts. Step 6: Install the roof rack & PART”C” with PART”L”,PART”N”,PART”O” & PART”P”. (C1=C2)
- Page 9 Step 7: Install the roof rack & PART”A” & PART”B” with PART”H”, PART”I”, PART”J”,PART”K” & PART”M” & PART”L”. As shown below.
- Page 10 Step 8: Repeat above steps for another side.
- Page 11 Step 9: Installation completed. (The 4 cube lights not included.)
- Page 12 1.The product parts in this instruction may differ slightly from the actual product contents but generally does not affect the installation of the product. 2.Please feel free to contact your distributor if you have any kind of question about your purchase. Hooke Road to find your parts...
