HOOKE ROAD BXG.2039-S Installation Manual

Front bumper
Hide thumbs

Advertisement

Quick Links

Download this manual

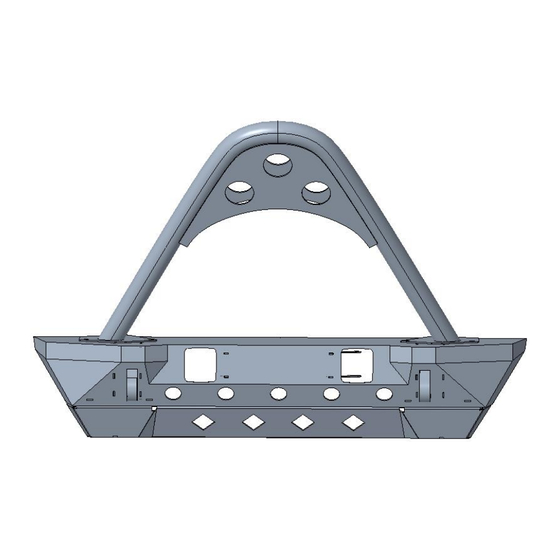

Front Bumper
BXG.2039-S
(1) Contents:

Advertisement

loading
Need help?

Need help?

Do you have a question about the BXG.2039-S and is the answer not in the manual?

Questions and answers

Related Manuals for HOOKE ROAD BXG.2039-S

Summary of Contents for HOOKE ROAD BXG.2039-S

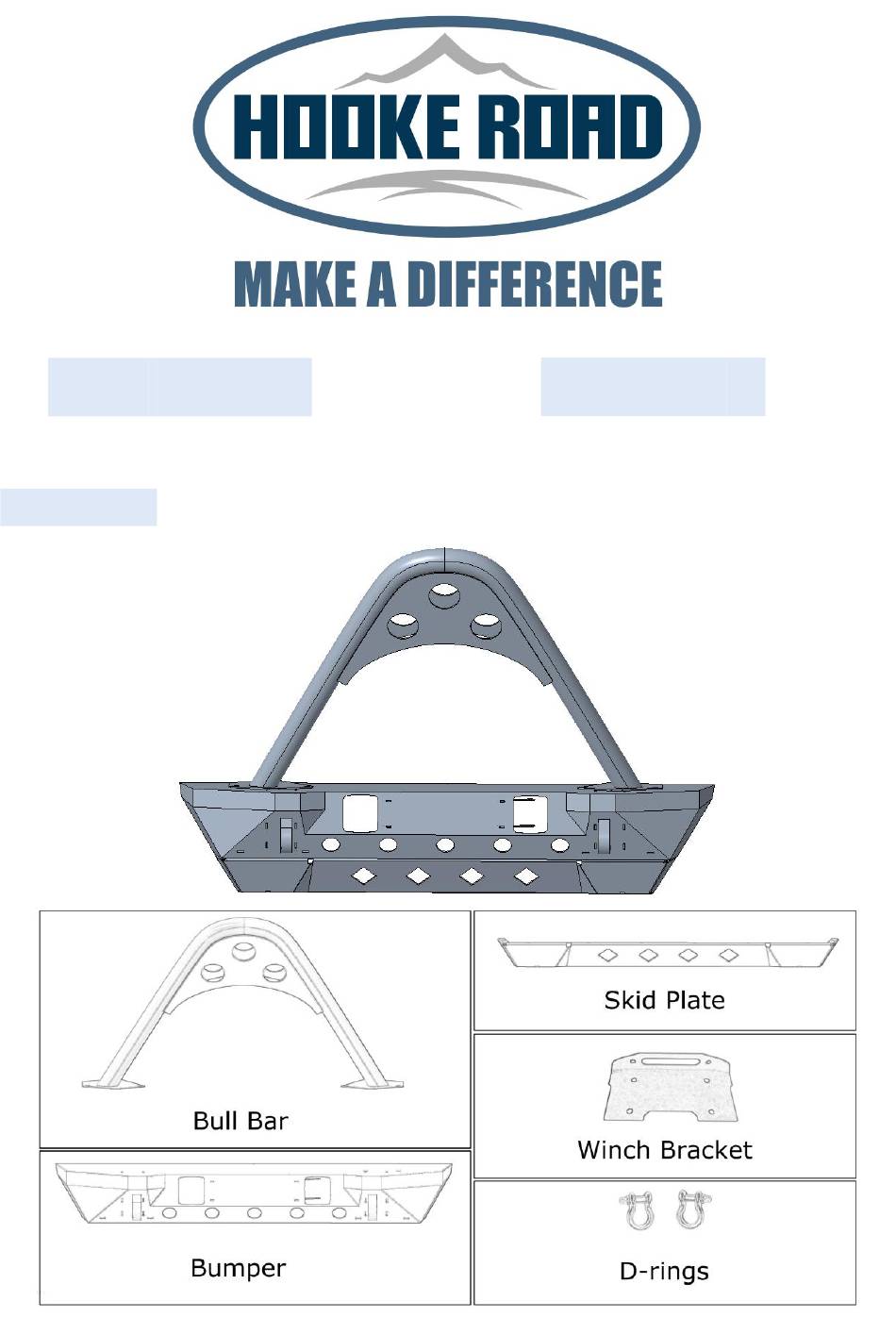

  • Page 1 Front Bumper BXG.2039-S (1) Contents:...
  • Page 2 Part Name Size(mm) Picture Hex Bolt M12*35 Button Head Socket Cap Bolts Screws M10*20 Button Head Socket Cap Bolts Screws M8*16 Split Lock Washer Flat Washer M12*30*2 Flat Washer M10*20*2 Hex Nuts Flange Hex Lock Nuts Flange Hex Lock Nuts...
  • Page 3 About 2 hours, 2-3 people may be needed. Installation time may differ according to your mechanical skill level. (PLEASE VERIFY ALL PARTS ARE PRESENT AND READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION!) To view the electronic version (BXG.2039-S), please scan the QR code.
  • Page 4 (4) Installation instruction: Step 1: Install the bull bar with the Button Head Socket Cap Bolts Screws (M10*25), Split Lock Washer (D10), Flat Washer (M10*25*2), Flange Hex Lock Nuts (M10). (1)Put the bull bar on the bumper. (2) Install and tighten the Button Head Socket Cap Bolts Screws (M10*25), Flat Washer (M10*25*2), Flange Hex Lock Nuts (M10).
  • Page 5 Step 2: Install another side of the bumper in the same way. Step 3: Install the skid plate with Button Head Socket Cap Bolts Screws (M8*16), Flange Hex Lock Nuts (M8). (Tools:5mm L type wrench or Hex socket wrench and 17mm wrench)
  • Page 6 Step 4: Install the bumper on the vehicle frame.As shown below.
  • Page 7 Step 5: Tighten both side of the bumper with the Hex Bolt (M12*35), Split Lock Washer (D12), Flat Washer (M12*30*2), Flange Hex Lock Nuts (M12). As shown below.(Tools: 19mm socket wrench) Attention： We just install the four nuts of this bumper,and it’s enough for daily use.The picture shows on the RIGHT.
  • Page 8 Step 6: After step5, and now install the D-rings on the bumper. Step 7: The winch bracket is unnecessary to install, but if you want to install the Winch,you need the winch bracket to install your Winch together.And must install it before STEP 4.
  • Page 9 And if no need to install the Winch, just use some bolts to install the winch bracket.As shown below. Step 8: Installation completed.
  • Page 10 1.The product parts in this instruction may differ slightly from the actual product contents but generally does not affect the installation of the product. 2.Please feel free to contact your distributor if you have any kind of question about your purchase. to find your parts Hooke Road...
