Pinpointing Cable Faults in "Digiphone" Mode
4.2

General information on operation

Shortly after switching on, the measurement screen appears. The device is now ready

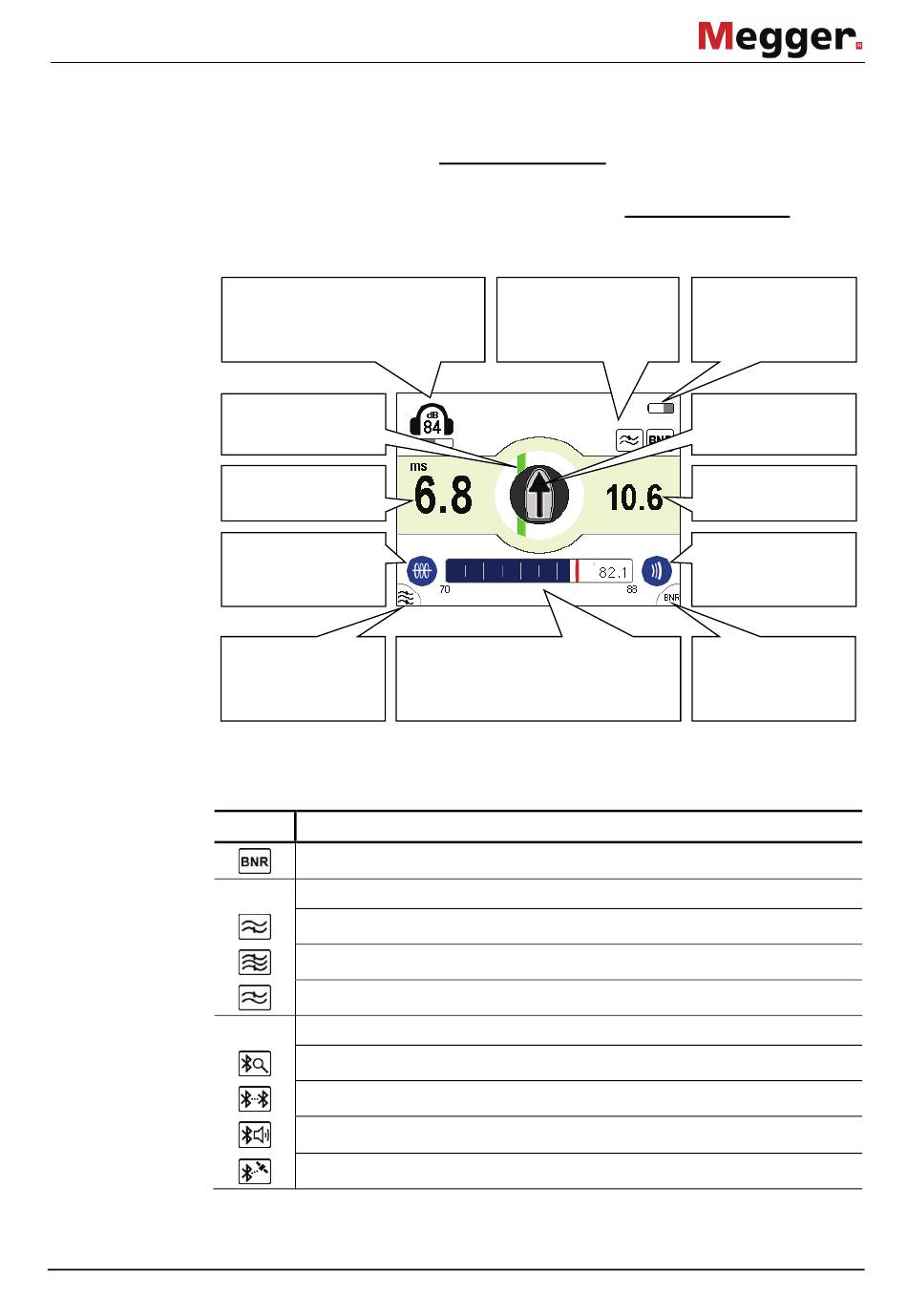

Layout of the
to measure.
measurement screen
In addition to the acoustic signal in the headphones, the measurement screen shows all
relevant information that may be useful when approaching the cable fault during the
pinpointing procedure:
The symbols at the top right of the measurement screen indicate the following functions
Active functions and
and measurement modes:
modes
Volume / amplification settings
Cable compass
Current time
difference
Indicator for arrival of
a magnetic pulse
Function of the F1
function key
Symbol Beschreibung
Noise suppression active (see page 27)
Active filter setting (see page 27)
Filter setting for short fault distances
Filter setting for medium fault distances
Filter setting for large fault distances
Bluetooth status messages (see page 87)
Scanning for visible devices
Connecting to device
Headset is connected
GPS receiver connected
Active functions and
modes (see below)
Bar graph for magnetic pulse
(with numeric instantaneous value,
maximum marker and
numeric range limits)
23
Battery status
Fault arrow
Time difference of
the last position
Indicator for arrival of
an acoustic signal
Function of the F2
function key
