General Information About Operation - Megger digiPHONE+2 User Manual

Line and probe location in "Ferrolux" mode
5.2
Layout of the
measurement screen
Active functions and
modes

General information about operation

Immediately after switching on, the measurement screen appears. The device is
immediately ready to measure.

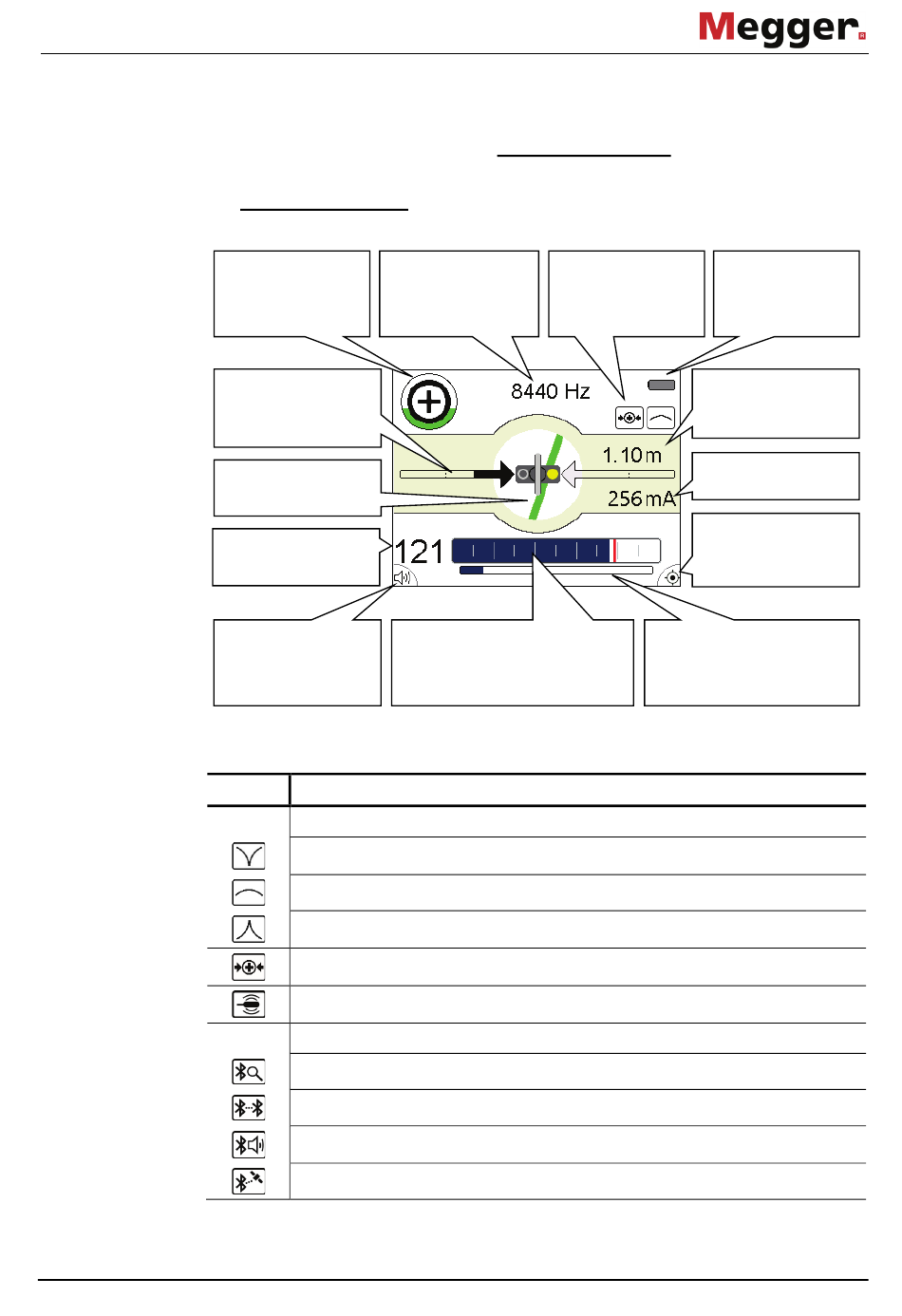

The measurement screen provides all of the relevant information that could be useful for
the locating the line or probe as well as the acoustic signal:
Signal direction and
SignalSelect quality
Left/right
route location
Presumed path of
the line
Signal strength in dB
Function of the F1
function key
The symbols at the top right of the measurement screen indicate the following functions
and measurement modes:
Symbol Description
Active measurement method (see page 45)
Minimum method
Maximum method
Super maximum method
Active frequency selected (see page 45)
Probe locating mode active (see page 64)
Bluetooth status messages (see page 87)
Scanning for visible devices
Connecting to device
Headset is connected
GPS receiver connected
Active functions
Currently set
and modes (see
frequency
Signal strength bar chart with
maximum drag display and
numerical display
41
Battery status
below)
Line/probe depth
Current strength
Function of the F2
function key
Currently set sensitivity
range
