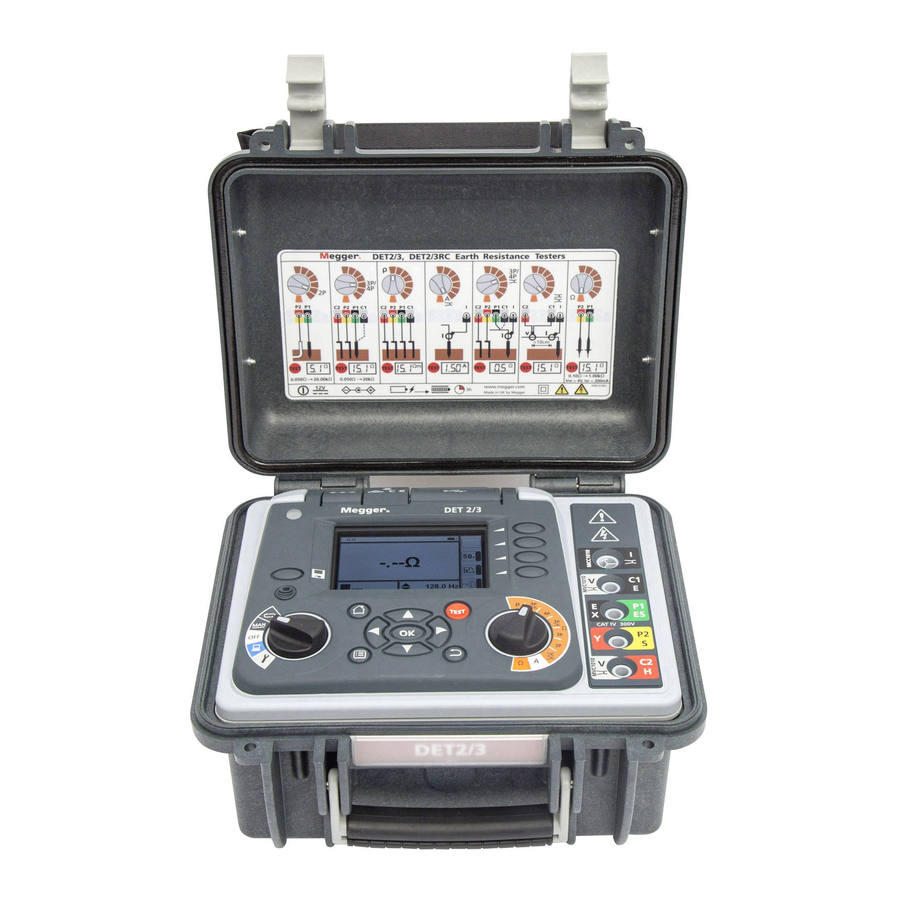

DET2/3
Advanced Earth (Ground) Tester
User Guide
GlobalTestSupply
www.
.com
Find Quality Products Online at:
sales@GlobalTestSupply.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DET2/3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Megger DET2/3

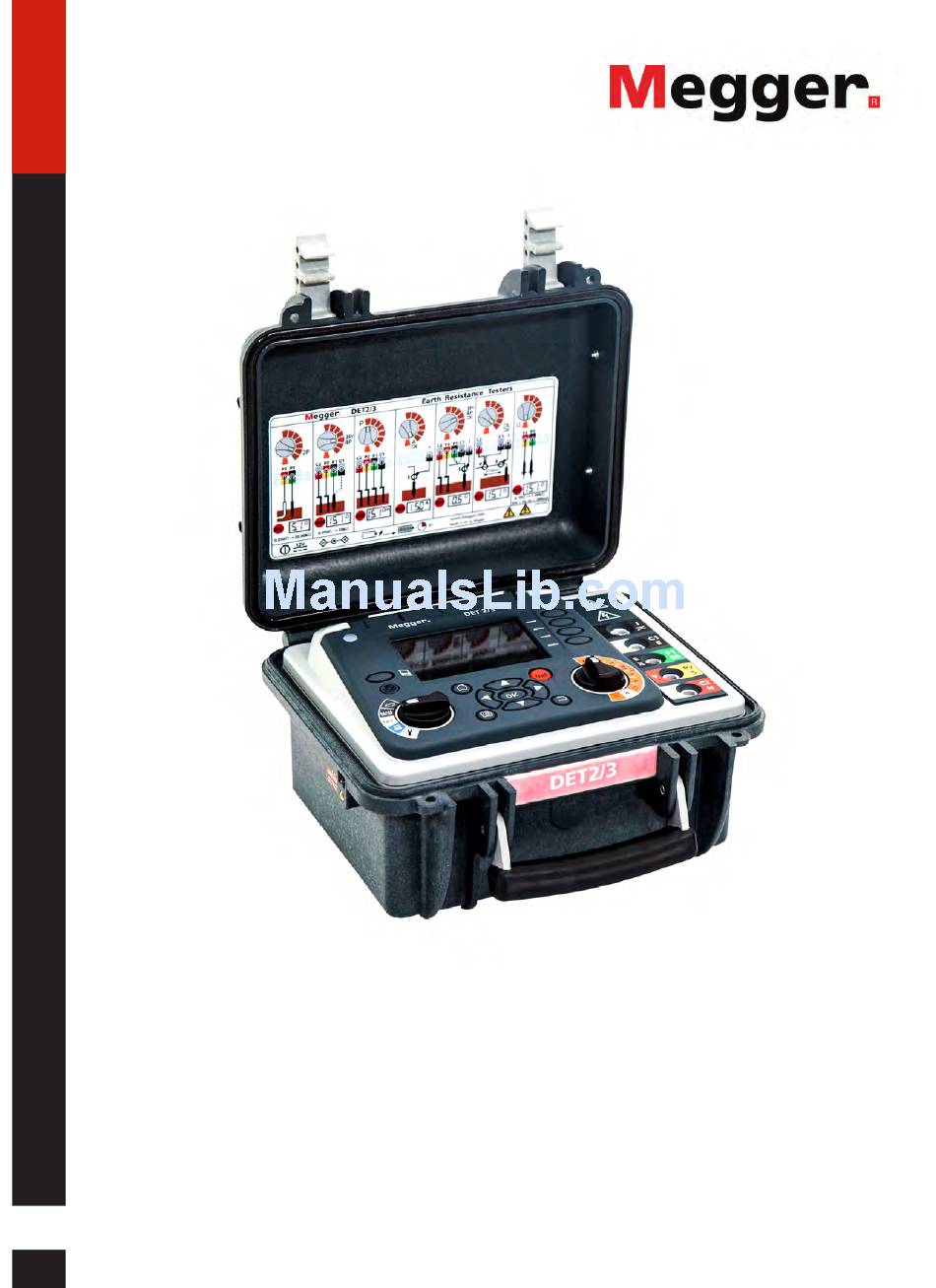

  • Page 1 DET2/3 Advanced Earth (Ground) Tester User Guide GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
  • Page 2: Table Of Contents

    Power options .............................10 Earth test options ............................10 Output voltage ............................10 Test frequency..............................10 Noise filter ..............................10 Test leads and terminal connections .......................11 Test modes ..............................11 Manual mode ..............................11 Continuous graphical mode .........................11 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com DET2/3...
  • Page 3 Data management Save test result ...............................33 To edit a record file name as..........................33 USB connection .............................34 Single test result: download or delete ......................35 Multiple test results: download or delete ......................35 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com DET2/3...
  • Page 4 Mechanical specification ..........................41 Accessories Repair and warranty Calibration and repair Return procedure ............................44 Approved service centres ..........................45 End of life WEEE directive ..............................46 Battery disposal .............................46 Declaration of conformity Bibliography Notes GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com DET2/3...
  • Page 5: Safety

    ƒ If a battery is suspected to be faulty, replace it with a Megger approved battery pack. Refer to the User Guide for instructions on how to change the battery.
  • Page 6: Live Earth Safety Precautions

    The terminals for connecting current and voltage clamps are not isolated from the measurement terminals. If the DET2/3 is used in a CAT IV 300 V environment, the clamps and their measurement leads must be rated the same or higher. Only the Megger MCC1010 and Megger MVC1010 are sufficiently rated, no other clamps are to be used.
  • Page 7: Safety And Hazard Icons

    Note: The warning will not operate if the instrument is set to Off. Internal Error Warning Internal Error Warning switch off and back on. Contact Megger if not Read the User Guide Refer to the user guide if this message shows.
  • Page 8: Introduction

    Getting Down to Earth. Agricultural location. The DET2/3 can be used in agricultural locations (as per IEC 61557-5) where, to comply with the standard, the output voltage must be set to 15 V. It can also set to 15 V when risk assessment determines that a 50 V test voltage is too high.
  • Page 9: Overview

    USB: 1x Type A / 1x Type B Mode switch (Controls (page 7)) Soft keys (page 9) Save (Test Result Management (page 36)) Terminals (page 8) External power LED (Power on / Charge (page 10)) GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com DET2/3...
  • Page 10: Display

    Status bar Test mode: Secondary measurement result Data management mode: Asset number Main display / Primary measurement result 5 Test mode: Test parameters Data management mode: Record name Soft key functions GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com DET2/3...
  • Page 11: Controls

    4 Pole Test result management (page 33) 3 Pole (ART) Set-up (page 12) 3 Pole 2 Pole Dual clamp A (leakage current) Ω (continuity) See Test methods and set-up (page 23). GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com DET2/3...
  • Page 12: Navigation Control Panel

    MCC1010 (used for ART, Noise current and stakeless tests) MVC1010 / C1 E Voltage clamp, (current) E/X / P1 ES (Potential) Y / P2 S (Potential) MVC1010 / C2 H Voltage clamp (current) GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com DET2/3...
  • Page 13: Soft Keys

    Delete single test record Earth / ground resistivity test Send single test record to USB 2 aR method a(a+b)R Metres or feet Average Clear Null NULL Back Resistivity spacing adjustment GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com DET2/3...
  • Page 14: Operation

    10 Hz and 200 Hz Noise filter „ Press (noise filter) to give additional noise rejection on the input signal in order to produce more stable results, this will also extend the test duration. GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com DET2/3...
  • Page 15: Test Leads And Terminal Connections

    In manual mode the test result can be shown as a single digital read out result, or as a continuously updated digital read out result. Continuous graphical mode In continuous mode a continuous updated graph is displayed. „ Green line: Measurement line „ Black Line: Recorded average GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com DET2/3...
  • Page 16: Set-Up

    Auto Off / Auto Dim / Brightness 1. Press to modify current selected setting. 2. Press to accept. must be pressed to exit the parameter, even if no parameter was modified. GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com DET2/3...
  • Page 17: Graph Set-Up

    Language set-up „ Select the instrument language 1. Press to scroll through languages. 2. Press to select the highlighted language. GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com DET2/3...
  • Page 18: Earth / Ground Resistance

    Two terminal earth resistance test (page 29) 2 Clamp Two clamp (stakeless) test (page 30) Ω Ω Ω Ω Set the function Set the function Set the mode Set the mode GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com DET2/3...
  • Page 19 : Go back to test settings (the Ready screen)     End Test End Test    Test ends Press to stop Press to stop TEST TEST GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com DET2/3...
  • Page 20 See Data management (page 33). Repeat test if required. While the test result is shown, test parameters can be modified for the next test. If required test parameters can be repeated. GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com DET2/3...
  • Page 21: Earth / Ground Resistivity

    Set function to ρ Ω Set the mode Manual or Continuous (see Test modes (page 11). 2 aR a(a+b)R Wenner or Schlumberger Select test method Adjust parameters Set test measurements Metres or Feet GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com DET2/3...
  • Page 22 Earth / ground resistivity Resistivity The DET2/3 can measure and calculate resistivity using the Wenner or Schlumberger methods. These are very similar, both involving placing four pins / stakes into the earth / ground. These only penetrate the soil by a short distance.
  • Page 23 / Repeat test Note: See Data management (page 33). Repeat test if required. While the test result is shown, test parameters can be modified for the next test, if required. GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com DET2/3...
  • Page 24: Continuity Test

    TEST TEST Clear: Stop the current data stream and restart the graph. Average: Activate / deactivate the average display.  End test   Press to stop Press TEST TEST GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com DET2/3...
  • Page 25: Null Test Leads

    If the measured resistance is below zero, while Null is active, the result will show that it is too low to measure (the instrument will not show negative resistance values). GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com DET2/3...
  • Page 26: Leakage Current Test Test Procedure

    Clear: Stop the current data stream and restart the graph. Average: Activate / deactivate the average display.   Press Press to stop TEST TEST Press Press See Data management (page 33). GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com DET2/3...
  • Page 27: Test Methods And Set-Up

    If the three resistance readings are similar (within the required accuracy) then their average can be taken as the resistance to earth of the electrode. 15 m to 25 m 15 m to 25 m GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com DET2/3...
  • Page 28: Four Terminal Art Test Lead Set-Up

    The resistance can be measured by connecting the lead to the P1(X) and P2(Y) terminals, selecting a 2P test and pressing the test button. This lead resistance can be subtracted from the earth resistance measurements. GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com DET2/3...
  • Page 29: Three Terminal Art Test Lead Set-Up

    The resultant is called μ and represents the change of slope of the resistance / distance curve. 6. Refer to Table 1: Values of D for various values of µ (page 27) to find the corresponding value of for μ. GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com DET2/3...
  • Page 30 Thirdly, it is also suggested that the test be repeated in different directions and with different spacings. The various results should exhibit a reasonable degree of agreement. GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com DET2/3...
  • Page 31 0.75 0.589 1.15 0.507 1.55 0.364 0.76 0.587 1.16 0.504 1.56 0.358 0.77 0.585 1.17 0.502 1.57 0.352 0.78 0.584 1.18 0.499 1.58 0.347 0.79 0.582 1.19 0.497 1.59 0.341 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com DET2/3...
  • Page 32: Slope Four Terminal Test Lead Set-Up

    Test methods and set-up Slope four terminal test lead set-up > 50 m Slope three terminal test lead set-up > 50 m Electrode under test Current spike Potential spike GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com DET2/3...
  • Page 33: Rule (Fop)

    Test methods and set-up 61.8% Rule (FoP) 61.8% Four terminal test lead set-up 61.8% of EC 38.2% of EC 61.8% Three terminal test lead set-up Electrode under test Potential spike Current spike 100% GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com DET2/3...
  • Page 34: Two Terminal Earth Resistance Test

    P1 (E) P2 (H) Two clamp (stakeless) test The two clamp (stakeless) test uses both the MVC1010 and MCC1010 to obtain a measurement for the electrode under test. MVC1010 MVC1010 MCC1010 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com DET2/3...
  • Page 35: Calibration Check Tools

    ƒ 25 – 0.145 + 0.025 = 24.88 (a figure between 24.88 and 25.12 is in specification) ƒ 25 – 0.145 – 0.025 = 24.83 (a figure less than this is out of specification) GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com DET2/3...
  • Page 36: Clamp Calibration Check

    Note: Make sure that the MCC1010 and MVC1010 jaw mating surfaces are free of dust and contamination and that they make a good contact with each other when the jaws are closed. GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com DET2/3...
  • Page 37: Data Management

    To edit a record file name as... 1. Set the mode switch to 2. Press to select 3. Press 4. Press to select record name (Red bar visible) 5. Press to select a test result GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com DET2/3...
  • Page 38: Usb Connection

    Press save button and a record number will display. Note: In continuous graphical mode save can be pressed at any time. USB connection A USB type socket is provided for this purpose on the top of the DET2/3. The position is clearly marked with a USB symbol. GlobalTestSupply www.
  • Page 39: Single Test Result: Download Or Delete

    7. Press Download all test records Delete all test records „ Press „ Press The selected test records are downloaded All saved test records are deleted (copied) to the connected device GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com DET2/3...
  • Page 40: Maintenance

    Caution: Old batteries must be disposed of in accordance with local regulations. Caution: Always set the instrument to Off and remove test leads before battery is removed and installed. Only use approved batteries supplied by Megger. Approved batteries (see Specifications (page 39)).
  • Page 41: Battery Replacement

    Warning: Disconnect all leads before removing case. Caution: Protect the face and switches of the instrument when turning it upside-down. Note: Replace with Megger approved battery, part number 1002-552 only. 1. Remove lid by opening to approximately 70° and sliding right.
  • Page 42: Battery Charge

    When the battery status indicator shows the battery is nearly discharged or is discharged, recharge the battery as detailed below. The DET2/3 can be used while the battery is on charge. The instrument will charge faster when switched off. A charge cycle on a fully discharged battery takes approximately four hours (see the Battery status (page 36)).
  • Page 43: Specifications

    ±3% (±2 digits) Test Current Up to 205 mA Lead Null < 10 Ω Leakage current Range 0.00 A to 2.00 A at 5% (+3 digits) Accuracy ±5% (±3 digits) GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com DET2/3...
  • Page 44: Instrument Specifications

    Instrument calibration check tool Electrical specification Resistance 25 Ω ±0.1% Mechanical specification Dimensions 60 x 55 x 25 mm (2.5 x 2.25 x 1 in) Weight 0.1 kg (0.2 lb) approximately GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com DET2/3...
  • Page 45: Clamp Calibration Check Tool

    Storage temperature -20 °C to 70 °C (-4 °F to 158 °F) Dimensions 111 x 216 x 45 mm (4.4 x 8.5 x 1.8 in) Weight 0.1 kg (0.2 lb) approximately GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com DET2/3...
  • Page 46: Accessories

    Accessories Accessories Warning: Use only Megger approved test leads and accessories with this instrument. Item Part Number Cable reel kit ETK30 1010-176 Cable reel kit ETK50 1010-177 Cable reel kit ETK100 1010-178 Cable reel kit ETK50C 1010-179 Cable reel kit ETK100C...
  • Page 47: Repair And Warranty

    Note: No user repair is possible beyond that which is described within this manual, i.e. battery replacement and cleaning. Any attempt to disassemble or repair beyond this point will invalidate any warranty on the item. GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com DET2/3...
  • Page 48: Calibration And Repair

    3. Pack the instrument carefully to prevent damage in transit. 4. Before the instrument is sent to Megger, freight paid, make sure that the returns label is attached, or that the RA number is clearly marked on the outside of the package and on any correspondence.
  • Page 49: Approved Service Centres

    End of life WEEE directive The crossed out wheeled bin symbol placed on Megger products is a reminder not to dispose of the product at the end of its life with general waste. Megger is registered in the UK as a Producer of Electrical and Electronic Equipment (registration No.: WEE/ HE0146QT).
  • Page 50: Declaration Of Conformity

    Hereby, Megger Instruments Limited declares that radio equipment manufactured by Megger Instruments Limited described in this user guide is in compliance with Directive 2014/53/EU. Other equipment manufactured by Megger Instruments Limited described in this user guide is in compliance with Directives 2014/30/EU and 2014/35/EU where they apply.
