3.2. The Rear Panel

The AudioFuse X8 OUT's rear panel has the following sets of connections.

3.2.1. Power Input

The AudioFuse X8 OUT has a locking power connector for the provided 15V / 2A DC power
supply.

Use only the provided supply! Other supplies might damage or destroy the unit, and will void your
warranty.

3.2.2. ADAT Outputs

The two Toslink ADAT optical inputs are used to accept 8 channels of digital audio from your
interface.
• When running at 44.1 or 48 kHz, the left port carries data for all 8 channels as
well as sync data.
• When running at 88.2 or 96 kHz, each port carries data for four channels, 1–4 and
5–8, as well as SMUX sync data.

3.2.3. Word Clock Input

This is a standard BNC connector for Word Clock data provided by an external clock source.
The HiZ switch determines the termination of the connection.

3.2.4. Outputs

These eight 1/4" TRS jacks carry balanced line-level signals from the AudioFuse X8 OUT.
Arturia - User Manual AudioFuse X8 OUT - Getting to Know the AudioFuse X8 OUT

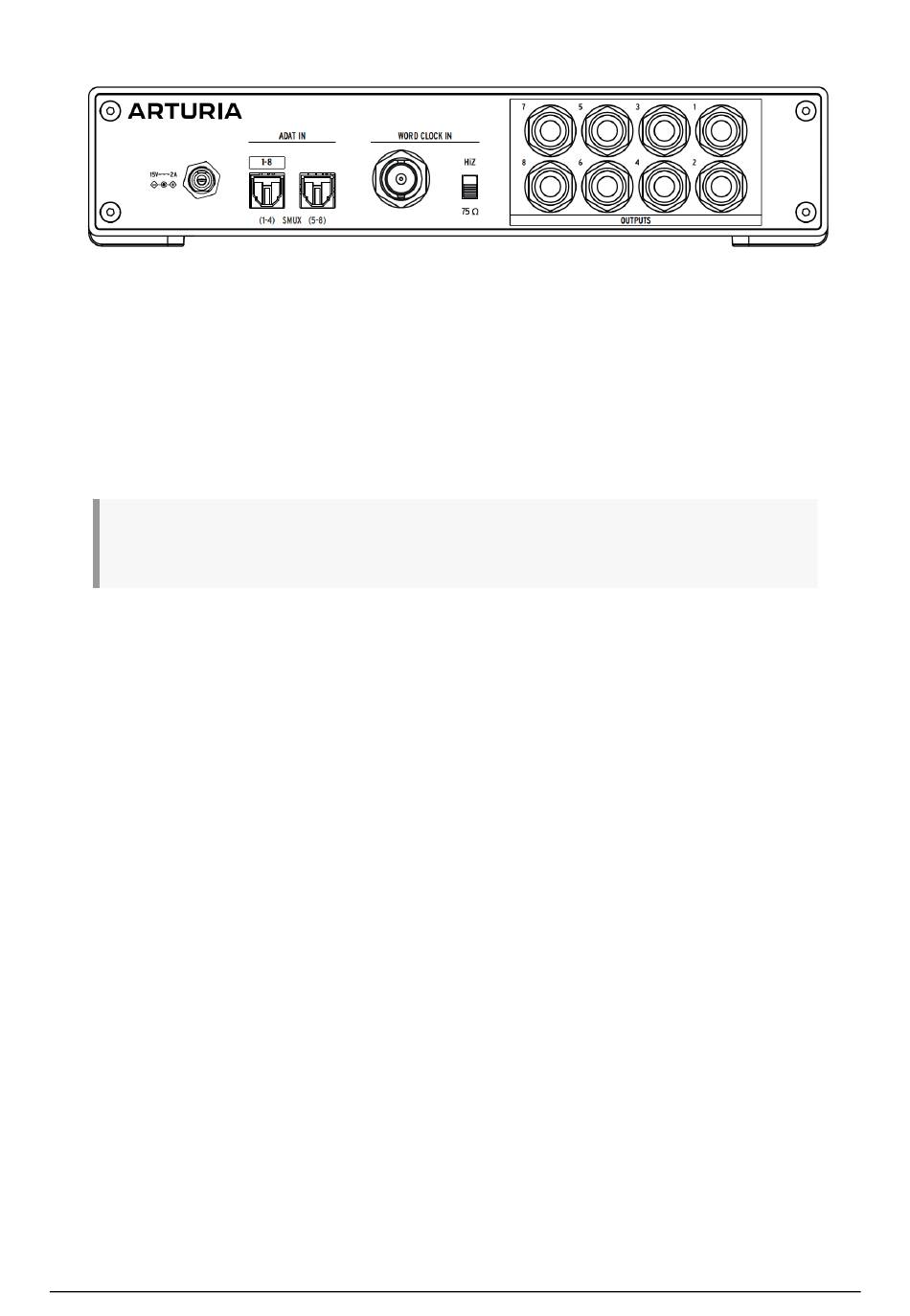

The AudioFuse X8 OUT rear panel
