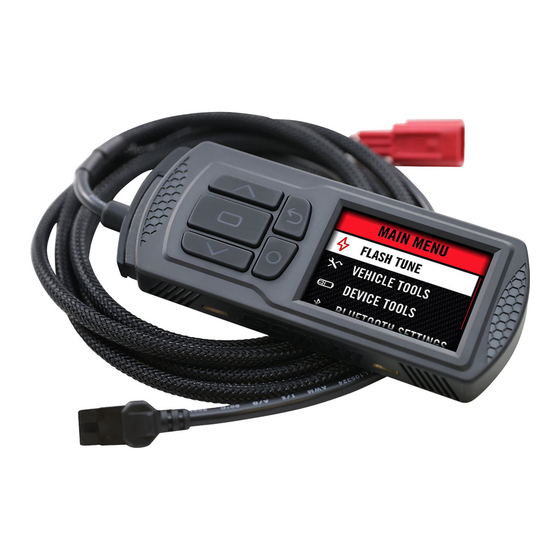

POWER VISION 3
Installation Guide for: PV3-15-01
Model Coverage:
2004-2011 Dyna Models
2001-2010 Harley Davidson Softail Models
2002-2013 Touring Models
2002-2017 Vrod Models
2007-2013 Sportster 883 Models
2007-2013 Sportster 1200 Models
2009-2012 XR1200
PARTS LIST
1
POWER VISION 3
1
REFLASH HARNESS
1
USB CABLE
PLEASE READ ALL DIRECTIONS BEFORE STARTING INSTALLATION
2
VELCRO
2
DYNOJET DECAL
98200148.03

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the POWER VISION 3 and is the answer not in the manual?

Questions and answers

Related Manuals for Dynojet POWER VISION 3

Summary of Contents for Dynojet POWER VISION 3

  • Page 1 POWER VISION 3 Installation Guide for: PV3-15-01 Model Coverage: 2004-2011 Dyna Models 2001-2010 Harley Davidson Softail Models 2002-2013 Touring Models 2002-2017 Vrod Models 2007-2013 Sportster 883 Models 2007-2013 Sportster 1200 Models 2009-2012 XR1200 PARTS LIST POWER VISION 3 VELCRO REFLASH HARNESS...
  • Page 2 INTRODUCTION Thank you for purchasing the Power Vision from Dynojet RETURN Research. At Dynojet, our mission is to make every ride the ultimate ride. The Power Vision allows you to tune SCROLL your stock ECU to achieve optimal performance from ENTER your vehicle.
  • Page 3 INSTALLING THE POWER VISION CONTINUED Route the Power Vision cable away from any moving or hot parts. Dynojet recommends using zip ties to secure the cable to existing non-moving components. Secure the Power Vision to the vehicle using the supplied Velcro or mounting hardware.

  • Page 4: Getting Started

    Select the tune fi le (.djt) and press Enter to view the Tune Info. WAIT... Note: The Dynojet tune fi le (.djt) is a tune fi le which is different (better than stock performance or the necessary fi le when bolting on an exhaust, for example); the stock fi le (.stk) is the direct duplicate of what the OEM shipped.
  • Page 5 VIEWING THE VEHICLE INFORMATION This menu allows you to view the device status (paired/not VEHICLE INFO MAIN MENU paired), VIN #, Model ID, ECU serial number, tune compat, and PAIRED VEHICLE: DEVICE NOT PAIRED TUNING VIN: 1HD1GM41X8K326073 checksum compat. MODEL ID: 2007 TOURING VEHICLE TOOLS TUNE COMPAT: HD7U176 Select Vehicle Tools>Vehicle Information.

  • Page 6: Viewing The Device Information

    VIEWING THE DEVICE INFORMATION This menu allows you to view the device fi rmware version, MAIN MENU DEVICE INFORMATION serial number, and stock code. DYNOJET POWER VISION TUNING FW VERSION: 3.9.8297.19316 Select Device Tools>Device Information. VEHICLE TOOLS SERIAL NUMBER: PV00032968...

  • Page 7: Changing The Settings

    From the top navigation menu, select Support>Downloads. VEHICLE TOOLS Click Power Vision 3. DEVICE TOOLS Click the Firmware drop-down and download the Power Vision 3 Firmware for Harley-Davidson. Save the fi le to your device. Select Device Tools>Update Device. DIAGNOSTIC ENABLE This menu allows you to create a fi...
  • Page 8 USING AUTOTUNE BASIC Autotune Basic utilized the narrowband O2 sensors on bikes that MAIN MENU TUNING AUTOTUNE AT STATUS:NOT ENALBED have OEM closed loop fuel control. After the data is collected, the TUNING FLASH TUNE ENABLE Power Vision can process the data, correct the tune, and then re- VEHICLE TOOLS AUTOTUNE DISABLE...
  • Page 9 Click Update to load the current fi rmware. If the Update button is grayed out, your Power Vision already has the latest fi rmware. Click Restore to reload all original Dynojet tune and stock fi les. Click Get Tunes to open the Dynojet Tune Finder. Follow the instructions to Upload your PV_Info.txt fi...
