2012-2014 Kawasaki KX450F
I n s t a l l a t i o n I n s t r u c t i o n s
PLEASE READ ALL DIRECTIONS BEFORE STARTING INSTALLATION
17-038
www.powercommander.com
2191 Mendenhall Drive North Las Vegas, NV 89081 (800) 992-4993 www.powercommander.com
PARTS LIST
1

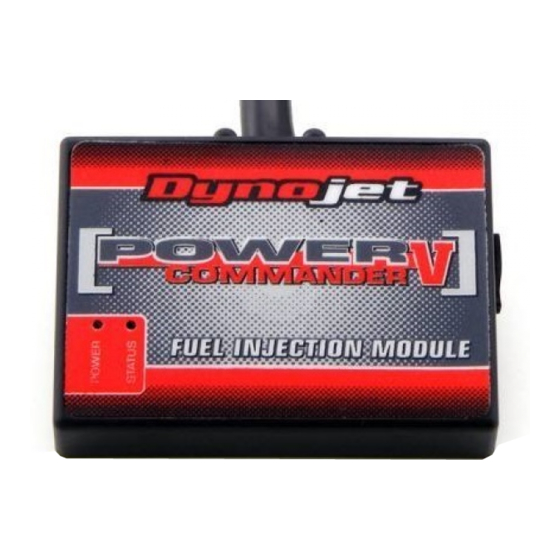

Power Commander
1
USB Cable
1
Installation Guide
2
Power Commander Decals
2
Dynojet Decals
2
Dual Lock strips
1
Alcohol swab
THE IGNITION MUST BE TURNED
OFF BEFORE INSTALLATION!
THE LATEST POWER COMMANDER
SOFTWARE AND MAP FILES CAN BE
DOWNLOADED FROM OUR WEB SITE AT:
www.powercommander.com
2012-2014 Kawasaki KX450F - PCV - 1
Advertisement
Related Manuals for Dynojet 450f
Summary of Contents for Dynojet 450f
- Page 1 2012-2014 Kawasaki KX450F Installation Guide Power Commander Decals I n s t a l l a t i o n I n s t r u c t i o n s Dynojet Decals Dual Lock strips Alcohol swab THE IGNITION MUST BE TURNED OFF BEFORE INSTALLATION!
- Page 2 Map - (Input 1 or 2) The PCV has the ability to hold 2 different base maps. You can switch on the fly between these two base maps when you hook up a switch to the MAP inputs. You can USB CONNECTION use any open/close type switch. The polarity of the wires is not important. When using the Autotune kit one position will hold a base map and the other position will let you activate the learning mode. When the switch is “CLOSED” Autotune will be activated. (Set to Switch Input #1 by default.) Shifter- (Input 1 or 2) These inputs are for use with the Dynojet quickshifter. Insert the wires from the CRANK Dynojet quickshifter into the SHIFTER inputs. ANALOG The polarity of the wires is not important. (Set to Switch Input #2 by default.) SPEED EXPANSION PORTS 1 & 2 INPUT 2 (Grnd) Speed- If your application has a speed sensor then you can tap into the signal side of the sensor INPUT 2 Optional Accessories such as and run a wire into this input. This will allow POD-300 unit or Auto-tune kit.
- Page 3 FIG.A Remove the seat, fuel tank, and the number plate. Using the supplied Dual Lock strips, secure the PCV module to the back side of the number plate (Fig. A). Use the supplied alcohol swab to clean both surfaces prior to applying the Dual Lock adhesive. Route the PCV harness to the left side of the frame following along the throttle cable towards the bike’s throttle body. FIG.B Unplug the stock wiring harness from the bike’s Fuel Injector (Fig. B). Unplug FIG.C Plug the PCV wiring harness in-line of the Fuel Injector and the stock wiring harness (Fig. C). 17-038 www.powercommander.com 2012-2014 Kawasaki KX450F - PCV - 3...
- Page 4 FIG.D Unplug the stock Throttle Position Sensor connectors (Fig. D). This is a 3-pin connector pair located rear of the throttle body. It is accessed Unplug easiest from the right hand side of the bike. The Figure D picture was taken from the left side of the bike, looking inward between the frame and the airbox.
