Target Tune
Installation and User Guide for:
Harley-Davidson

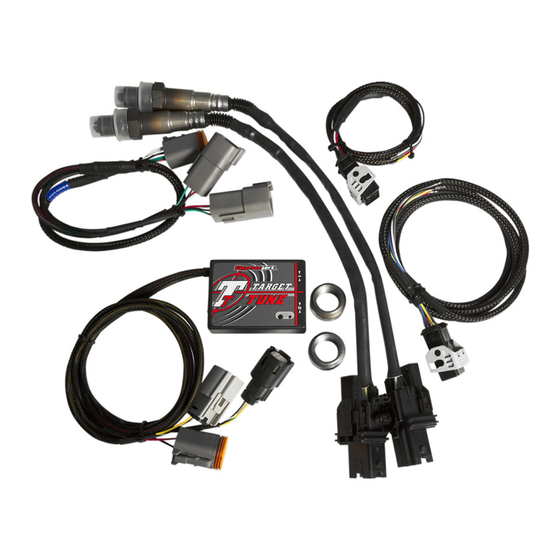

PARTS LIST
1
TARGET TUNE MODULE
3
8" CABLE TIES
2
DUAL LOCK STRIPS
1
ALCOHOL SWAB
Parts shown with an asterisk (*) are excluded in Target Tune kits that have a part number ending in "X". These kits are in-
tended for users that are upgrading from PV Auto Tune to PV Target Tune. These users should already have these specifi c
parts installed from the previous PV Auto Tune Kit.
Parts shown with two asterisks (**) are only used on 2021+ models with the 3-pin accessory port.
PLEASE READ ALL DIRECTIONS BEFORE STARTING INSTALLATION
2
O2 SENSOR BUNGS*
1
ADAPTER CABLE**
2
18MM O2 SENSORS*
2
O2 SENSOR CABLES*
98200071.09
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Dynojet Target Tune
Summary of Contents for Dynojet Target Tune
- Page 1 O2 SENSOR CABLES* Parts shown with an asterisk (*) are excluded in Target Tune kits that have a part number ending in “X”. These kits are in- tended for users that are upgrading from PV Auto Tune to PV Target Tune. These users should already have these specifi c parts installed from the previous PV Auto Tune Kit.
-
Page 2: Important Note
Your bike’s ECM will need to be fl ashed by the Power Vision with a tune that enables Target Tune. You must be using the latest WinPV or C3 software along with Power Vision fi rmware to use Target Tune. Be sure to update your software and fi... -
Page 3: Application Guide
Note: Target Tune kits that have a part number ending in “X” contain Target Tune modules only. There is no O2 sensor hardware or Y-adapters supplied in these kits. These are intended for users that are upgrading from PV Auto Tune to PV Target Tune. -
Page 4: Installation
On many Softail models you can typically fi nd a place under the On Dyna models you can typically fi t the Target Tune module seat to store the module. It could go in the recess at the top of inside the electrical box next to the ECM. - Page 5 Plug the connectors from the Target Tune into the stock O2 sensors connectors. Plug the Target Tune lead with the YELLOW/ORANGE wire into the FRONT cylinder stock O2 connector. Plug the Target Tune lead with the YELLOW/GREEN wire into the REAR cylinder stock O2 connector.
- Page 6 The stock O2 connec- stock O2 connectors for the rear cylinder are found under tors for the rear cylinder are behind the left hand side the seat near the battery. cover above the coolant reservoir. 6 TARGET TUNE INSTALLATION AND USER GUIDE 98200071...
- Page 7 Tune module. abrasion and heat sources. 2021+ Softail Models Plug the supplied power cable into the 3-pin accessory port on the left hand side of the motorcycle and then into the Target Tune module.
- Page 8 Note: Adequate room will be needed for the sensor body and wiring. Remove the exhaust system. Drilling and welding of the exhaust system should be done by an experienced welder/fabricator. Reinstall the exhaust system. FRONT LOCATION 10° MINIMUM INCLINE 8 TARGET TUNE INSTALLATION AND USER GUIDE 98200071...
- Page 9 Pre-confi gured tunes from Dynojet The original tune that is being modifi ed to work with Target Tune should be as optimal as possible for the engine and modifi cations that you are using. This means if you have a very unique or radical engine build, you may need to have a more optimal starting point tune developed by other means before Target Tune can work effectively.
- Page 10 Note: You must use WinPV software 2.0.18 and Power Vision fi rmware 2.0.19 or newer with Target Tune. WINPV SOFTWARE–TARGET TUNE Skip the wait and apply the Target Tune values right in WinPV Software using Target Tune. Open WinPV Software.
- Page 11 Transfer the stock tune from the Power Vision 3 to your computer. Email the tune to pv3hdtech@dynojet.com. C3 SOFTWARE–ENABLE TARGET TUNE Skip the wait and apply the Target Tune values right in C3 Tuning Software using Enable Target Tune. Open C3 Tuning Software. From the Home ribbon, click Open.
- Page 12 TRUTH TRUTH IN IN PERFORMANCE PERFORMANCE 2191 MENDENHALL DRIVE, NORTH LAS VEGAS, NV 89081 - 800-992-4993 - DYNOJET.COM © 2015-2023 DYNOJET RESEARCH ALL RIGHTS RESERVED...
