Thank you for purchasing this Dynojet
kit. This kit has been developed for a
motorcycle which is set to the
parameters listed at the right in the
"Stage" description. If your motorcycle
does not meet any of these parameters,
please check with Dynojet before
installation. For technical assistance
contact your Dynojet distributor or call
Dynojet U.S.A. (800)-992-4993
2191 Mendenhall Dr. Suite 105
North Las Vegas, NV 89081
TEL: 702-399-1423
FAX: 702-399-1431
8am-5pm Pacific Time
Monday through Friday
Website Address
http://www.dynojet.com
The manufacturer and seller make no
warranties express or implied which
extend beyond the description of the
goods contained herein. Any description
of this product is for the purpose of
identifying it and shall not be deemed to
create an express warranty.
8135.001
U.S models only
Harley Davidson
2004-2006 XL1200 C,R
Keihin CV Carb
For mildly tuned machines using the stock or
high flow airbox. May also be used with a good
aftermarket exhaust system.

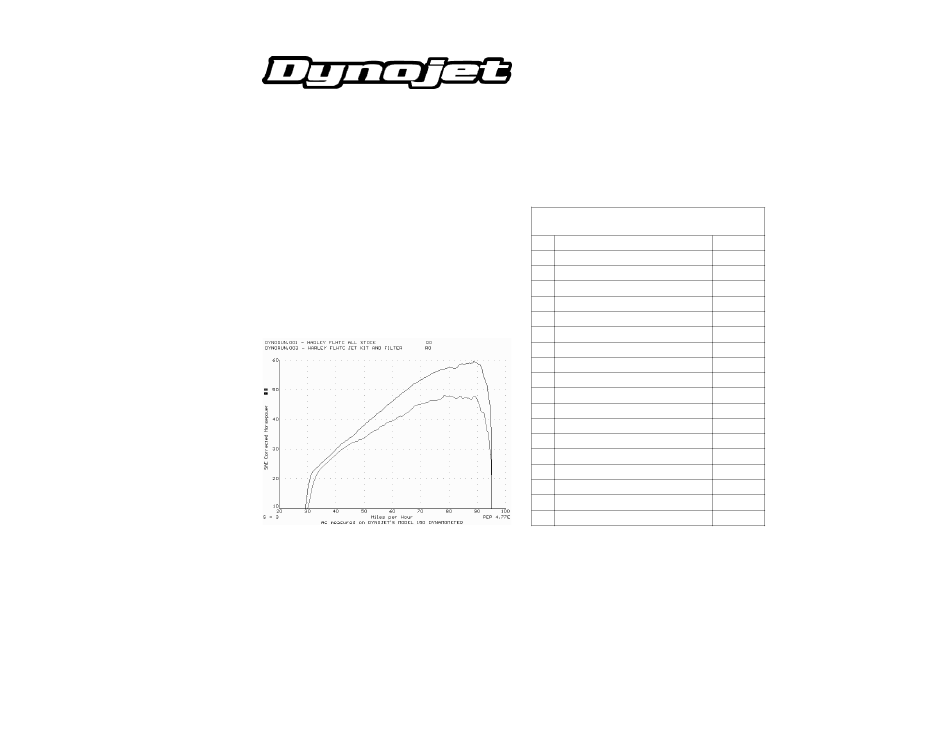

This graph shows a typical gain with a Dynojet jet kit.
WARNING
NO SMOKING!
NO OPEN FLAME!
WHILE INSTALLING
YOUR DYNOJET KIT
Parts List
1
Main Jet
1
Main Jet
1
Main Jet
1
Main Jet
1
Main Jet
1
Main Jet
1
Main Jet
1
Main Jet
1
Main Jet
1
Main Jet
1
Main Jet
1
Fuel Needle
1
E-Clip
3
Adjusting Washers
1
Emulsion Tube
1
Slide Spring
1
Slide Drill
1
Plug Drill
DD #5/32
1
Screw
DJ150
DJ155
DJ160
DJ165
DJ170
DJ175
DJ180
DJ185
DJ190
DJ195
DJ200
DNO855
DE0001
DW0001
DET001
DSP009
DD #29
DS0001
