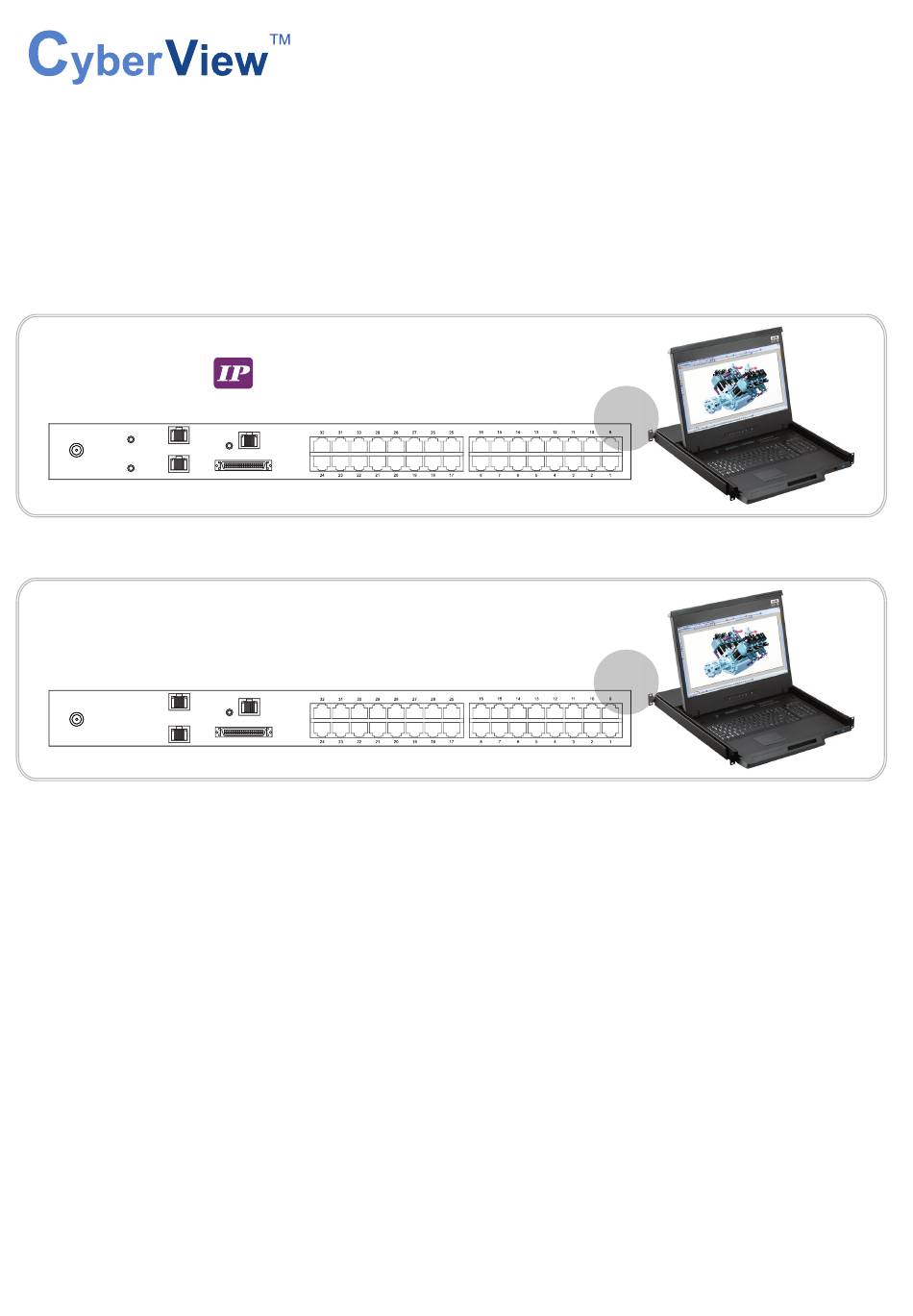

User Manual
Matrix Cat6
Matrix Cat6 KVM
Designed and manufactured by Austin Hughes
UM-CV-751-MUKVM-KIT-Q221V2
dedicated KVM switch and rackmount screen technology
- KVM Rear Kit Version
for LCD Console Drawer
-MUIP1613 / 1624
KVM
-MUIP3213 / 3224
-MU1602 / 1603 / 1604
-MU3202 / 3203 / 3204
back
back
www.austin-hughes.com
751
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for CyberView MUIP3213
Summary of Contents for CyberView MUIP3213
- Page 1 KVM switch and rackmount screen technology User Manual - KVM Rear Kit Version for LCD Console Drawer -MUIP1613 / 1624 Matrix Cat6 -MUIP3213 / 3224 back -MU1602 / 1603 / 1604 Matrix Cat6 KVM -MU3202 / 3203 / 3204 back...
- Page 2 Legal Information First English printing, June 2021 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents < Part. 1 > Matrix Cat6 IP KVM Kit MU-IP1613 MU-IP1624 MU-IP3213 MU-IP3224 Package contents KVM port & Cat6 dongle connection IP & Remote console connection P.3 - 4 IP console setting Important Preconfiguration for IP console P.6 - 8 KVM Cascade Specifications P.10... -
Page 4: Package Contents
< Part 1 > Matrix Cat6 Matrix Cat6 IP KVM Kit < 1.1 > Package Contents -MUIP1613 / -MUIP3213 • Receiver box for remote console x 1 -MUIP1624 / -MUIP3224 • Power adapter w/ power cord ( for receiver ) x 1 •... -
Page 5: Kvm Port & Cat6 Dongle Connection
< 1.2 > KVM port & Cat6 dongle connection Matrix Cat6 IP KVM Kit DG-100C DG-100P DG-100H DG-100SD DG-100S USB-C dongle DP-USB dongle HDMI-USB dongle DVI-USB dongle VGA-USB dongle Servers DG-100C USB-C CAT 5 / 6 cable DG-100P max. 40 meters Cat6 KVM port Drawer KVM Rear Kit DG-100H... -
Page 6: Ip & Remote Console Connection
< 1.3 > IP & Remote console connection Matrix Cat6 IP KVM Kit Receiver For remote console, max. cable length is subject to the resolution. Please refer to the tables below. Drawer KVM Rear Kit IP Console Remote Console Frequency Frequency Max. - Page 7 How to use a receiver to connect a remote console Matrix Cat6 IP KVM Kit Local Power Computer Remote I/O Receiver Front Mouse Remote Local Rear Select button The receiver provides a hotkey function for remote console. Please refer to P.21 Drawer KVM Rear Kit Remote Console...
-
Page 8: Ip Console Setting
After the cable connection, please take the following steps to configure the IP KVM : 1. Download IPKVMsetup.exe from the link: www.austin-hughes.com/support/utilities/cyberview/IPKVMsetup.exe 2. Double click IPKVMsetup.exe to configure the IP KVM by device setup as below. 3. Click Refresh Device to search the connected IP KVM 4. -
Page 9: Important Preconfiguration For Ip Console
< 1.5 > Important Preconfiguration for IP console Matrix Cat6 IP KVM Kit You must complete the following tasks after the IP console setting is performed. ( 1 ) TARGET SERVER SETUP **Servers connected to KVM Resolution The IP KVM remote console recognizes several varieties of video display formats with resolutions up to 1600 x 1200 @60Hz. - Page 10 < 1.5 > Important Preconfiguration for IP console Matrix Cat6 IP KVM Kit ( 2 ) REMOTE CLIENT COMPUTER SETUP The remote client computer must have a web browser ( such as Microsoft Internet Explorer, Mozilla Firefox, and Netscape Navigator ) and a Java Virtual Machine ( version 1.4 or higher ) installed. Enable Java on the web browser.
- Page 11 Matrix Cat6 IP KVM Kit 6) Click < Update > After the firmware has been updated, IP KVM will reset automatically. After one minute, you will be redirected to the Login page and requested to login again. - Completed UM-CV-751-MUKVM-KIT-Q221V2 www.austin-hughes.com...
-
Page 12: Kvm Cascade
< 1.6 > KVM Cascade Matrix Cat6 IP KVM Kit ■ Cascade up to 8 levels, 256 servers ■ Cascading multiple KVM with CMC-8 cascade cable. Cascaded KVMs from level 2 to 8 must be the models of MU-1602 / MU-3202 or M-802 / M-1602. When multiple matrix KVMs cascade together, the master KVM at level 1 will take all control of other slave KVM switches (e.g. -
Page 13: Specifications
16:10 - max. 1920 x 1200 4:3 - max. 1600 x 1200 IP Remote Console ▀ Number of IP console : 1 for -MUIP1613 / -MUIP3213 2 for -MUIP1624 / -MUIP3224 User management : 15-user login, 1 x active user Browser :... -
Page 14: Matrix Cat6 Kvm
< Part 2 > Matrix Cat6 KVM Matrix Cat6 KVM < 2.1 > Package Contents -MU1602 / -MU3202 • Receiver box for remote console x 1 • Power adapter w/ power cord ( for receiver ) x 1 • CE-6 6ft Combo KVM cable for receiver box x 1 KVM Rear Kit back -MU1603 / -MU3203... - Page 15 Matrix Cat6 KVM -MU1602 Remote Console 1 Power Cascade -MU3202 -MU1603 Remote Console 1 Power Remote-2 Cascade -MU3203 -MU1604 Remote-3 Remote Console 1 Power Remote-2 Cascade -MU3204 UM-CV-751-MUKVM-KIT-Q221V2 P.12 www.austin-hughes.com...
-
Page 16: Kvm Port & Cat6 Dongle Connection
< 2.2 > KVM port & Cat6 dongle connection Matrix Cat6 KVM DG-100C DG-100P DG-100H DG-100SD DG-100S USB-C dongle DP-USB dongle HDMI-USB dongle DVI-USB dongle VGA-USB dongle Servers DG-100C USB-C CAT 5 / 6 cable DG-100P max. 40 meters Cat6 KVM port Drawer KVM Rear Kit DG-100H HDMI... -
Page 17: Remote Console Connection
< 2.3 > Remote console connection Matrix Cat6 KVM For remote console, max. cable length is subject to the resolution. Please refer to the tables below. Drawer KVM Rear Kit Remote Console Frequency Max. Cat6 Cable Resolution Support ( Hz ) Length ( M ) 1920 x 1080 1920 x 1200... - Page 18 How to use a receiver to connect a remote console Matrix Cat6 KVM Local Power Computer Remote I/O Receiver Front Mouse Remote Local Rear Select button The receiver provides a hotkey function for remote console. Please refer to P.21 Drawer KVM Rear Kit Remote Console Local computer...
-
Page 19: Kvm Cascade
< 2.4 > KVM Cascade Matrix Cat6 KVM ■ Cascade up to 8 levels, 256 servers ■ Cascading multiple KVM with CMC-8 cascade cable. Cascaded KVMs from level 2 to 8 must be the models of MU-1602 / MU-3202 or M-802 / M-1602. When multiple matrix KVMs cascade together, the master KVM at level 1 will take all control of other slave KVM switches (e.g. -
Page 20: Specifications
< 2.5 > Specifications Matrix Cat6 KVM -MU1602 -MU1603 -MU1604 -MU3202 -MU3203 -MU3204 ▀ KVM Port Number of ports : 16 or 32 Connector : RJ-45 Connectivity : DVI-D / VGA connector dongle up to 40 meters (132 feet) via Cat6 / Cat5 cable Local Console : Nil for LCD console drawer version... -
Page 21: Matrix Cat6 Kvm Usage
< Part 3 > Usage Matrix Cat6 KVM Usage < 3.1 > KVM Button Power ON ■ Turn off all servers and KVM switches ■ Make sure all cables / connectors are properly connected ■ Recommend Power ON sequence is monitor, KVM switch finally computer Front Panel - Port LED Indications Front Panel - Port LED Indications 16 ports... -
Page 22: Password
< 3.2 > Password Matrix Cat6 KVM Usage The password is enabled by default, the default password is “00000000” eight zeros (Do not use “0” on number pad) ■ Enable password Scroll Lock + Scroll Lock + U Press the KVM hotkey Scroll Lock + Scroll Lock + P Logout the KVM by pressing the hotkey In SUPERVISOR level, enter “00000000”... -
Page 23: Kvm Osd
< 3.3 > KVM OSD Matrix Cat6 KVM Usage OSD Menu OSD operation next to the system name The PC is powered on next to the system name The PC is selected Access F1 MAIN MENU Logout the OSD menu Previous menu Cancel / Quit Enter... -
Page 24: Kvm Hotkey & Remote Console Hotkey
< 3.4 > KVM Hotkey & Remote Console Hotkey Matrix Cat6 KVM Usage Local Console Hotkey Function Scroll Lock + Scroll Lock + Space Bar Calling OSD menu Right-button mouse + Esc Calling OSD menu Scroll Lock + Scroll Lock + Switch to previous port Scroll Lock + Scroll Lock + Switch to next port... - Page 25 Intentionally Left Blank UM-CV-751-MUKVM-KIT-Q221V2 www.austin-hughes.com...
- Page 26 The company reserves the right to modify product specifications without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2021 Austin Hughes Electronics Ltd. All rights reserved. UM-CV-751-MUKVM-KIT-Q221V2 www.austin-hughes.com...
