User Manual
Designed and manufactured by Austin Hughes
UM-CV-751-MRK-Q221V1
dedicated KVM switch and rackmount screen technology

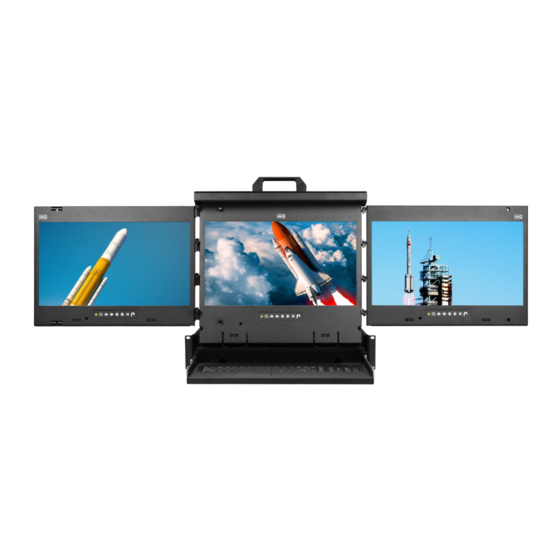

2U Multi-Display Console Drawer
MRK-K17-2L
MRK-F17-2L
MRK-MF17-2L
MRK-X17-2L
MRK-19-2L
MRK-K17-3
MRK-F17-3
MRK-MF17-3
MRK-X17-3
MRK-19-3
MRK-K17-2R
MRK-F17-2R
MRK-MF17-2R
MRK-X17-2R
MRK-19-2R
www.austin-hughes.com
751
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for CyberView MRK-K17-2L
Summary of Contents for CyberView MRK-K17-2L

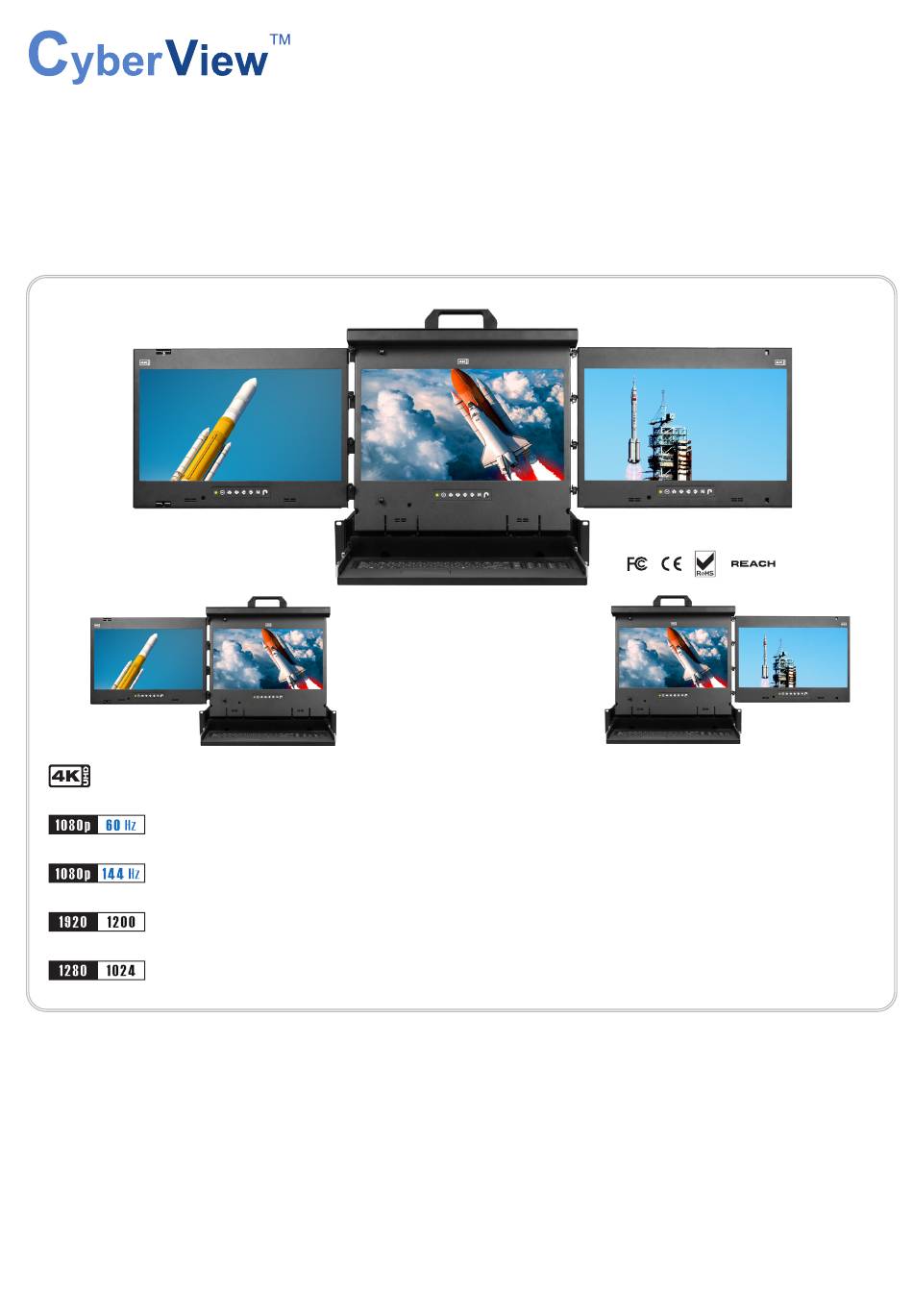

- Page 1 KVM switch and rackmount screen technology User Manual 2U Multi-Display Console Drawer MRK-K17-2L MRK-K17-3 MRK-K17-2R MRK-F17-2L MRK-F17-3 MRK-F17-2R MRK-MF17-2L MRK-MF17-3 MRK-MF17-2R MRK-X17-2L MRK-X17-3 MRK-X17-2R MRK-19-2L MRK-19-3 MRK-19-2R Designed and manufactured by Austin Hughes UM-CV-751-MRK-Q221V1 www.austin-hughes.com...
- Page 2 Legal Information First English printing, December 2020 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents < Part. 1 > Package Content Structure Diagram & Dimension Installation Connection < Part. 2 > Specifications / OSD Product Specifications P.10 Keyboard / Mouse Specifications P.16 On-screen Display Operation ( OSD ) P.19 < Part. 3 > Options 3G / HD / SD-SDI Broadcast-grade input P.22 HDMI video input... - Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 5: < 1.1 > Package Content
< Part 1 > < 1.1 > Package Content MRK-K17 unit X 1 MRK-F17 / MRK-MF17 / MRK-X17 / MRK-19 unit X 1 - 6ft DP cable X 2 or 3 - USB (B) to (A) cable X 1 - 6ft DVI cable X 2 or 3 - Power adapter &... - Page 6 < 1.2 > MRK-K17 / MRK-F17 / MRK-MF17 / MRK-X17 Dimension 1mm = 0.03937 inch Front View Triple display MRK-K17 MRK-F17 Dual display ( LH mounted ) MRK-MF17 MRK-X17 Dual display ( RH mounted ) Rear View MRK-K17 MRK-F17 / MRK-MF17 / MRK-X17 Power DVI-D Power...
- Page 7 < 1.2 > MRK-19 Dimension 1mm = 0.03937 inch Front View Triple display MRK-19 Dual display ( LH mounted ) Dual display ( RH mounted ) Rear View DVI-D Power Keyboard Central Mouse Left Right Side View 103.5 559.7 Top View Product Dimension Packing Dimension Gross...
-
Page 8: Installation
< 1.3 > Installation - How to install Installation Slides Step ■ The left and right rear mounting brackets are attached to the Multi-display console drawer. Step ■ Measure the depth of the front and rear mounting rails. ■ Align each rear mounting bracket to a suitable length. ■... - Page 9 < 1.3 > Installation - How to Use the Multi-Display Drawer Step ■ Unlock the key cylinder to 3 o’clock direction. Step ■ Hold the handle and slide out the drawer. Step Step ■ Flip up the LCD to a suitable angle. Step ■...
- Page 10 < 1.3 > Installation - How to Use the Multi-Display Drawer Step ■ Operate the multi-display drawer. Step ■ Close the Left Right display. ■ Flip down the LCD completely. Step Step ■ Must completely extend the drawer before returning it to the park position. ■...
- Page 11 < 1.3 > Installation - How to Use the Slides Figure 1. ■ A purple release button is located on the front of the slide. ( shown in Figure 1 ). ■ Pull and hold both side release buttons when Figure 2.
- Page 12 < 1.4 > MRK-K17 connection to DP Server Multi-display Console Drawer Power Keyboard Central Central Mouse Left Left Right Right USB type B DP cable USB (B) to (A) x 2 or 3 cable x 1 USB type A DP server * DP cable x 2 and USB (B) to (A) cable x 1 for dual display Caution : The LCD console drawer is hot-pluggable, but components of connected devices, such...
- Page 13 < 1.4 > MRK-F17 / MRK-MF17 / MRK-X17 / MRK-19 connection to USB Server Mult-display Console Drawer DVI-D Power Keyboard Central Mouse Left Right DVI cable USB KB cable x 1 x 2 or 3 USB server * DVI cable x 2 and USB KB cable x 1 for dual display Caution : The LCD console drawer is hot-pluggable, but components of connected devices, such as the servers and KVM switch, may not be hot-pluggable.
- Page 14 < Part 2 > < 2.1 > Product Specifications - MRK-K17 MRK-K17 Panel Native Resolution 3840 x 2160@60Hz Panel Size ( diagonal ) 17.3-inch TFT color LCD Brightness ( cd/m² ) Contrast Ratio ( typ. ) 1000:1 Colors 16.7 M, 8-bit Viewing Angle ( L/R/U/D ) 89/89/89/89 Response Time ( ms )
- Page 15 < 2.1 > Product Specifications - MRK-K17 Physical Product ( W x D x H ) 441.6 x 550 x 88 Specification inch 17.4 x 21.7 x 3.5 Packing ( W x D x H ) 580 x 683 x 197 inch 22.8 x 26.9 x 7.8 Triple display...
- Page 16 < 2.1 > Product Specifications - MRK-F17 / MRK-MF17 MRK-F17 MRK-MF17 Panel Native Resolution 1920 x 1080 1920 x 1080 Panel Size ( diagonal ) 17.3" 17.3" Standard Brightness ( cd/m² ) High Brightness ( cd/m² ) - Option 1000 Contrast Ratio ( typ.
- Page 17 < 2.1 > Product Specifications - MRK-F17 / MRK-MF17 Physical Product MRK-F17 441.6 x 550 x 88 Specification ( W x D x H ) inch 17.4 x 21.7 x 3.5 MRK-MF17 441.6 x 600 x 88 inch 17.4 x 23.6 x 7.8 Packing ( W x D x H ) 580 x 683 x 197 inch...
- Page 18 < 2.1 > Product Specifications - MRK-X17 / MRK-19 MRK-X17 MRK-19 Panel Native Resolution 1920 x 1200 1280 x 1024 Panel Size ( diagonal ) 16.2" 19" Standard Brightness ( cd/m² ) High Brightness ( cd/m² ) - Option 1000 Contrast Ratio ( typ.
- Page 19 < 2.1 > Product Specifications - MRK-X17 / MRK-19 Physical Product MRK-X17 441.6 x 550 x 88 Specification ( W x D x H ) inch 17.4 x 21.7 x 3.5 MRK-19 441.6 x 600 x 88 inch 17.4 x 23.6 x 7.8 Packing ( W x D x H ) 580 x 683 x 197 inch...
-
Page 20: Keyboard / Mouse Specifications
< 2.2 > Standard Keyboard / Mouse Specifications G keyboard integrated with touchpad G keyboard integrated with trackball Key force 55 ± 5g Travelling distance 3 ± 0.3mm Switch life > 10 million life cycle time OS support Windows / Linux / Unix / Mac OS Supporting layouts America United States... - Page 21 < 2.2 > MAC Keyboard / Mouse Options MAC keyboard integrated with touchpad MAC keyboard integrated with trackball Supporting layouts America United States How to Use "MAC" Keyboard Keyboard Features Decrease display brightness Fast-forward Increase display brightness Mute sound Mission control * Only works with OS X Lion Decrease volume default Keyboard Shortcuts.
- Page 22 < 2.2 > SUN Keyboard / Mouse Options S keyboard integrated with touchpad S keyboard integrated with trackball Ca ps Scro ll Comp ose Ca ps Scro ll Comp ose S keyboard integrated with touchpad / trackball ■ Incorporates SUN keys, including Stop, Cut, Paste, Compose, Copy and Help ■...
-
Page 23: On-Screen Display Operation ( Osd )
< 2.3 > On-screen Display Operation ( OSD ) Power light Green = On Orange = Power saving Membrane Switch Function Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control (To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen Toggle analog, digital &... - Page 24 < 2.3 > On-screen Display Operation ( OSD ) Picture Brightness : Adjust the screen brightness Contrast : Adjust the difference between the image background ( black level ) and the foreground ( white level ) Black level : Adjust background black level of the screen : Screen in power saving mode Position Picture size : Adjust the image size...
- Page 25 < 2.3 > On-screen Display Operation ( OSD ) Reset Reset : Return the adjustment back to factory setting PIP ( Not Applicable to F17 / MF17 ) PIP mode : Enter into PIP / PBP setting - PIP MODE / PBP 2WIN ( Main screen + 1 sub screen ) / PBP 3WIN ( Main screen + 2 sub screen ) / PBP 4WIN ( Main screen + 3 sub screen )
- Page 26 Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with CyberView displays, a SDI input module can support up to 1080p @60Hz resolution without using additional space or power and it comes standard with a 2-year warranty.
-
Page 27: Hdmi Video Input
< 3.2 > Options : HDMI video input MRK-K17 : HDMI 2.0 ( HDCP 2.2 ) M RK - F 17 / M R K - M F 1 7 : HDMI 1.4 ( HDCP 1.4 ) DP 1.0 ( HDCP 1.3 ) M R K - X 1 7 : HDMI 1.4 ( HDCP 1.4 ) MRK-19... -
Page 28: Projected Capacitive ( 10-Point Touch )
< 3.3 > Options : Touchscreen & driver Capacitive Touch screen Specification MRK-19 MRK-K17 MRK-F17 MRK-MF17 MRK-X17 Model TPC-10 TCB e-Capacitive Multi-touch Technology Projected Capacitive Capacitive Touch Point Single Input Type Finger or Capacitive Stylus Finger Resolution 4096 x 4096 2048 x 2048 Touch Point Accuracy ±... - Page 29 TPC-10 Driver Connect the USB cable from the USB port on the LCD to a computer. The touch screen supports easy Plug-and-Play operations. There is no need to install additional drivers on the computer. TRB / TCB Driver Please follow the below steps to setup the touch screen:- Step 1.
- Page 30 < 3.4 > Options : DC Power Model 125V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V Input current - No load 50 mA 50 mA 50 mA 35 mA - Full load...
- Page 31 Intentionally Left Blank UM-CV-751-MRK-Q221V1 www.austin-hughes.com...
- Page 32 The company reserves the right to modify product specifications without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2021 Austin Hughes Electronics Ltd. All rights reserved. UM-CV-751-MRK-Q221V1 www.austin-hughes.com...
