Installation
A

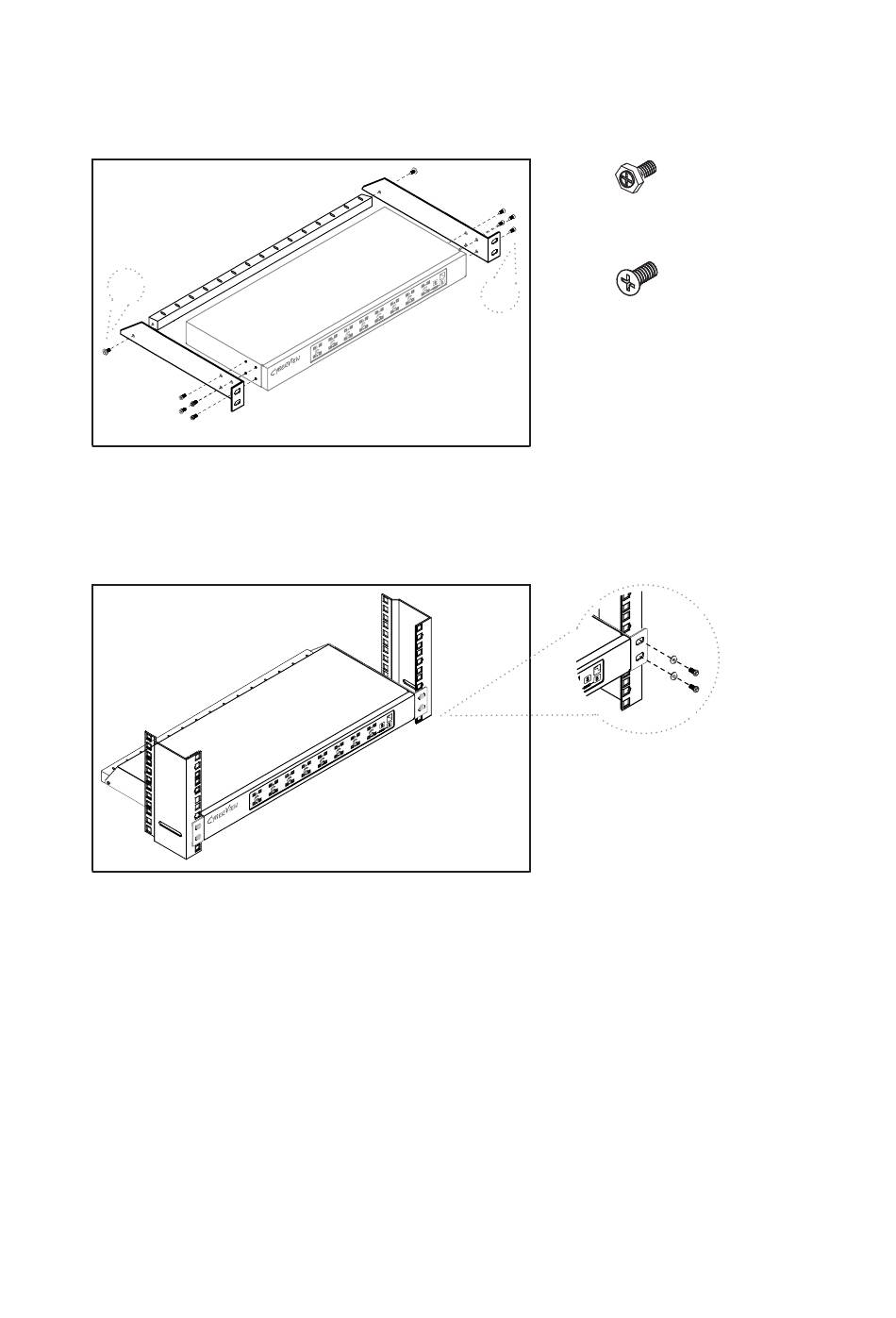

Figure 1. Installing the bracket to the KVM.
Figure 2. Fixing the KVM into the rack.
screw A: M3.2 x 4.5 mm
B
screw B: M4 x 10 mm
■
Install each bracket using screws pro-
vided shown in Figure 1.
■
Fix the KVM into the rack
* Hardware for fi xing the mounting bracket
to the rack is not provided

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MU-1602 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CyberView MU-1602

Summary of Contents for CyberView MU-1602

  • Page 1 Installation screw A: M3.2 x 4.5 mm screw B: M4 x 10 mm ■ Install each bracket using screws pro- vided shown in Figure 1. Figure 1. Installing the bracket to the KVM. ■ Fix the KVM into the rack * Hardware for fi...
  • Page 2 MU-1602 / MU-1603 / MU-1604 Matrix Cat6 16 port KVM Package Content (only for rackmount KVM) KVM switch x 1 pc Screw M3.2 x 4.5mm x 4 pcs Screw M4 x 10mm x 8 pcs Bracket x 1 set Receiver...
  • Page 3 MU-1602 / MU-1603 / MU-1604 Matrix Cat6 16 port KVM Connection Local Console Remote Power MU-1602 cascade Local Console Remote-1 Power MU-1603 Remote-2 cascade Local Remote-3 Console Remote-1 Power MU-1604 Remote-2 cascade Connection Rackmount KVM DVI-USB Dongle Cat6 cable up to 40 meters...
  • Page 4 MU-1602 / MU-1603 / MU-1604 Matrix Cat6 16 port KVM Connection KVM modules DVI-USB Dongle Cat6 cable up to 300 meters to remote access server Cat6 cable up to 40 meters to server end VGA-USB Dongle Servers back VGA-PS/2 Dongle...

  • Page 5: Receiver Connection

    MU-1602 / MU-1603 / MU-1604 Matrix Cat6 16 port KVM Receiver Receiver Box Front View Rear View Local Remote Local Monitor Remote I/O Power Button Button Computer Keyboard Mouse Receiver Connection MU-1604 12V DC Power Adapter Monitor Cat6 cable up to 300m...
  • Page 6 MU-1602 / MU-1603 / MU-1604 Matrix Cat6 16 port KVM Cascade ■ Cascade up to 8 levels, 128 servers ■ Interconnection with Matrix DB-15 KVM ■ Cascading multiple KVM by CMC-3 cable. Cascade Rackmount KVM Power Cascade M-1602 CMC-3 cable...
  • Page 7 MU-1602 / MU-1603 / MU-1604 Matrix Cat6 16 port KVM Cascade ■ Cascade up to 8 levels, 128 servers ■ Interconnection with Matrix DB-15 KVM ■ Cascading multiple KVM by CMC-3 cable. Cascade KVM modules back Cascade M-1602 CMC-3 cable...
  • Page 8 MU-3202 / MU-3203 / MU-3204 Matrix Cat6 32 port KVM Package Content (only for rackmount KVM) KVM switch x 1 pc Screw M3.2 x 4.5mm x 4 pcs Screw M4 x 10mm x 8 pcs Bracket x 1 set Receiver *Qty refer to the below table User manual x 1 pc 12V Power adapter (for KVM) x 1 pc...
  • Page 9 MU-3202 / MU-3203 / MU-3204 Matrix Cat6 32 port KVM Connection Local console Remote 1 MU-3202 Cascade Local console Remote 1 MU-3203 Remote 2 Cascade Local Remote 3 console Remote 1 MU-3204 Remote 2 Cascade Connection Rackmount KVM DVI-USB Dongle Cat6 cable up to 40 meters to server end VGA-USB...
  • Page 10 MU-3202 / MU-3203 / MU-3204 Matrix Cat6 32 port KVM Connection KVM modules DVI-USB Dongle Cat6 cable up to 300 meters to remote access server Cat6 cable up to 40 meters to server end VGA-USB Dongle Servers back VGA-PS/2 Dongle Remote Remote Cat6 KVM port...
  • Page 11 MU-3202 / MU-3203 / MU-3204 Matrix Cat6 32 port KVM Receiver Receiver Box Front View Rear View Local Remote Local Monitor Remote I/O Power Button Button Computer Keyboard Mouse Receiver Connection MU-3204 12V DC Power Adapter Monitor Cat6 cable up to 300m CE-6 KVM cable KB MS USB server via CE-6...
  • Page 12 ■ Cascade up to 8 levels, 256 servers ■ Interconnection with Matrix DB-15 KVM ■ Cascading multiple KVM by CMC-3 cable. Cascade Rackmount KVM Power Cascade M-1602 CMC-3 cable M-802 MU-3202 CMC-3 cable MU-1602 CMC-3 cable CMC-3 cable CMC-3 cable...
  • Page 13 ■ Cascade up to 8 levels, 256 servers ■ Interconnection with Matrix DB-15 KVM ■ Cascading multiple KVM by CMC-3 cable. Cascade KVM modules back Cascade M-1602 CMC-3 cable M-802 MU-3202 CMC-3 cable MU-1602 CMC-3 cable CMC-3 cable CMC-3 cable...
  • Page 14 DG-100SD / DG-100S / DG-100 Dongle Connections DG-100SD DVI-USB dongle ■ To connect DVI-D connector to the computer’s video card ■ To connect USB connector to the computer’s USB port Matrix Cat6 KVM switch DVI-D Cat6 cable (up to 132 ft) DG-100SD DVI-USB dongle server...

  • Page 15: Specification

    Specifi cation Matrix Cat6 16 port KVM MU-1602 / MU-1603 / MU-1604 Matrix Cat5 Matrix Cat5 Matrix Cat5 KVM Port ▀ Number of ports: Connector: RJ-45 Connectivity: DVI-D / VGA connector dongle up to 40 meters (132 feet) Cat6 / Cat5 cable Local Console ▀...
  • Page 16 Specifi cation Matrix Cat6 32 port KVM MU-3202 / MU-3203 / MU-3204 Matrix Cat5 Matrix Cat5 Matrix Cat5 KVM Port ▀ Number of ports: Connector: RJ-45 Connectivity: DVI-D / VGA connector dongle up to 40 meters (132 feet) Cat6 / Cat5 cable Local Console ▀...

  • Page 17: Kvm Button

    KVM Button Matrix KVM Usage Power ON ■ Turn off all servers and KVM switches ■ Make sure all cables / connectors are properly connected ■ Recommend Power ON sequence is monitor, KVM switch fi nally computer Front Panel - Port LED Indications 8 ports Matrix BANK...
  • Page 18 Password Matrix KVM Usage The password is disabled by default ( i.e. There is no password required when you power on the KVM switch for the first time) ■ Enable password Scroll Lock + Scroll Lock + U Press the KVM hotkey Scroll Lock + Scroll Lock + P Logout the KVM by pressing the hotkey In SUPERVISOR level, enter “00000000”...

  • Page 19: Osd Operation

    KVM OSD Matrix KVM Usage OSD Menu OSD operation next to the system name The PC is powered on next to the system name The PC is selected Access F1 MAIN MENU Logout the OSD menu Previous menu Cancel / Quit Enter Complete / Switch to selected port Switch to previous or next port...

  • Page 20: Kvm Hotkey

    KVM Hotkey Matrix KVM Usage Local Console Hotkey Hotkey Function Scroll Lock + Scroll Lock + Space Bar Calling OSD menu Right-button mouse + Esc Calling OSD menu Scroll Lock + Scroll Lock + Switch to previous port Scroll Lock + Scroll Lock + Switch to next port Scroll Lock + Scroll Lock + PgUp / PgDn...

  • Page 21: Initial Ip Confi Guration

    Setting Matrix KVM Usage Quick Installation Guide of IP KVM for remote access Please perform the follow steps 1. Power off all KVM hardware and connected devices. 2. Connect the power supply to IP KVM 3. Connect the monitor, keyboard & mouse to console port of IP KVM (not applicable to integrated LCD drawer version) 4.
  • Page 22 Setting Matrix KVM Usage 4. Remote access the IP-KVM switch via Web Using the HTTP protocol or a secure encrypted connection via HTTPS and entering the confi gured IP address of IP KVM switch into the web browser to remote access the IP KVM switch. With successful connection to IP KVM, the login page will show as below, then key in the default user name &...

  • Page 23: Optional Accessories

    Optional Accessories Matrix KVM Usage 1. Combo KVM cable 1.1 CE-6 6 feet 1.2 CE-10 10 feet 1.3 CE-15 15 feet 2. Matrix KVM cascade cable 2.1 CMC-3 3 feet 3. Cat5 cable 3.1 CU-3 3 feet 3.2 CU-6 6 feet 3.3 CU-10 10 feet 3.4 CU-15 15 feet 3.5 CU-33 33 feet...

  • Page 24: Dc Power 12V, 24V, 48V Input

    DC Power 12V, 24V, 48V Input Matrix KVM Usage Model Input rating Input voltage: 12-Volt 24-Volt 48-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V Input current - No load 50 mA 50 mA 50 mA - Full load 4950 mA 2450 mA 1220 mA...
