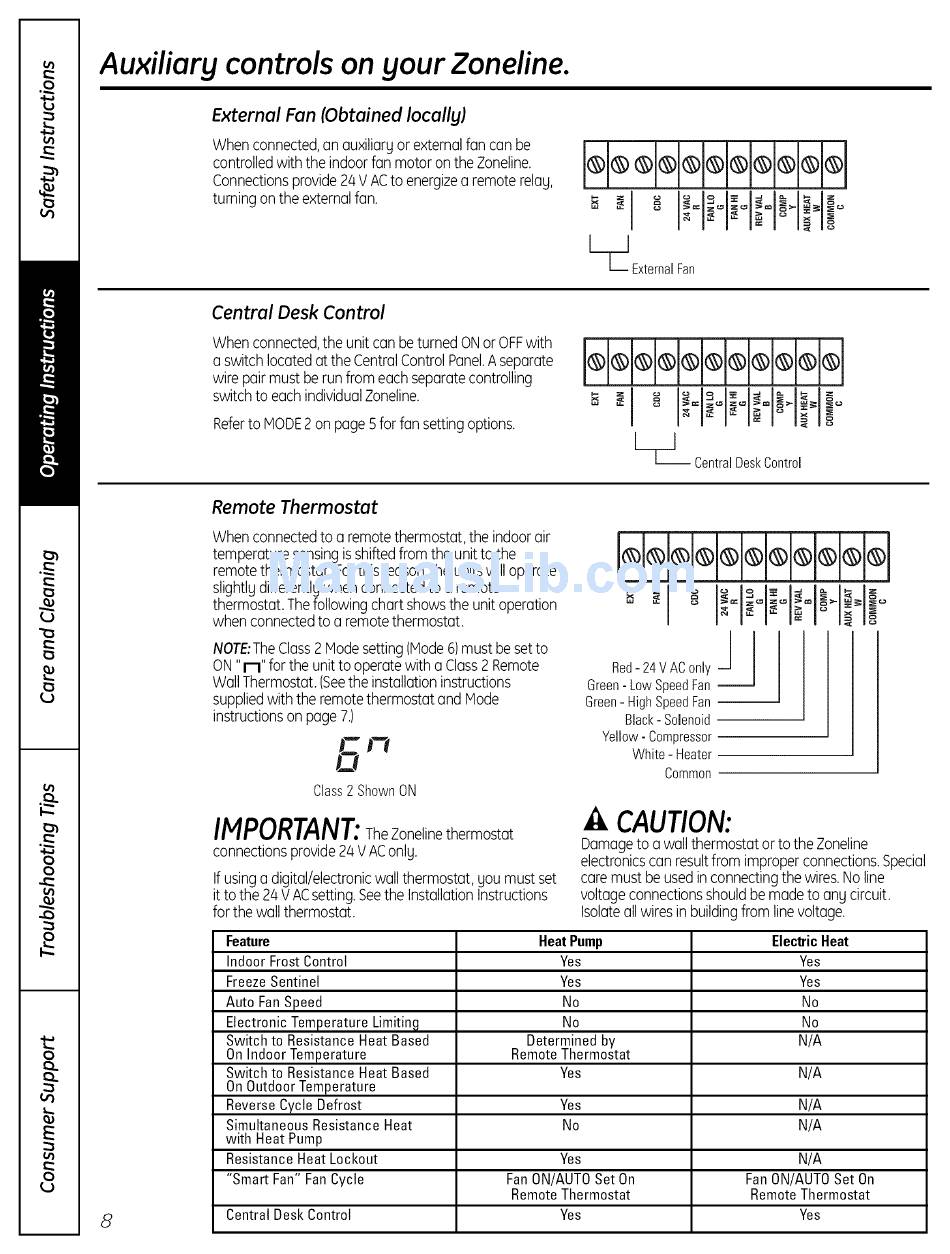

Auxiliary controls on gour Zoneline.
External Fan (Obtained locally)
Whenconnected, a n auxiliaryor externalfan can be
controlledwith the indoorfan motor on the Zoneline.
Connections provide2/4V ACto energize a remoterelay,
turningon the externalfan.
I I II
h_ External F an
Central Desk Control
Whenconnected, t he unit can beturnedONor OFF with
a switch locatedat the CentralControlPanel. A separate
wire pair mustbe run from eachseparatecontrolling
switchto eachindividual Z oneline.
Referto NODE 2 on page 5 for fan setting options.
o01 0o 0.1o
I__J
[-- Central D eskControl
8
Remote Thermostat
Whenconnectedto a remotethermostat,the indoorair
temperaturesensing isshiftedfrom the unitto the
remotethermostat.Forthis reason, t he unitswill operate
slightlydifferentlywhenconnectedto a remote
thermostat.Thefollowingchart showsthe unit operation
when connected to a remotethermostat.
NOTE:The C lass2 Nodesetting(Node6) mustbe setto
ON"n" for the unitto operatewith a Class2 Remote
"1 IIII
/
Red- 24V AConly J
Wall Thermostat. (Seethe installation instructions
supplied with the remote thermostat and Hode
instructions on page 7.)
S"
Class2 ShownON
IMPORTANT:
TheZoneline thermostat
connectionsprovide2/4V AConly.
If usinga digital/electronic wall thermostat,you mustset
it to the 24 V ACsetting.Seethe Installation Instructions
for the wallthermostat.
Green- LowSpeedFan --
Green - HighSpeed Fan --
Black- Solenoid
Yellow- Compressor
White- Heater
Common
CAUTION:
Damage to a wallthermostator to the Zoneline
electronics can resultfrom improperconnections. Special
caremust be usedin connectingthe wires.Noline
voltageconnections shouldbe madeto any circuit.
Isolateall wiresin buildingfrom line voltage.
Feature
Indoor Frost Control
Freeze Sentinel
Auto Fan Speed
Electronic Temperature Limiting
Switch to Resistance Heat Based
On Indoor Temperature
Switch to Resistance Heat Based
On Outdoor Temperature
Reverse Cycle Defrost
Simultaneous Resistance Heat
with Heat Pump
Resistance Heat Lockout
"Smart Fan" Fan Cycle
HeatPump
Yes
Yes
No
No
Determined by
Remote Thermostat
Yes
ElectricHeat
Yes
Yes
No
No
N/A
N/A
Yes N/A
No N/A
Yes N/A
Fan ON/AUTOSet On Fan ON/AUTOSet On
Remote Thermostat Remote Thermostat
Central Desk Control Yes Yes
